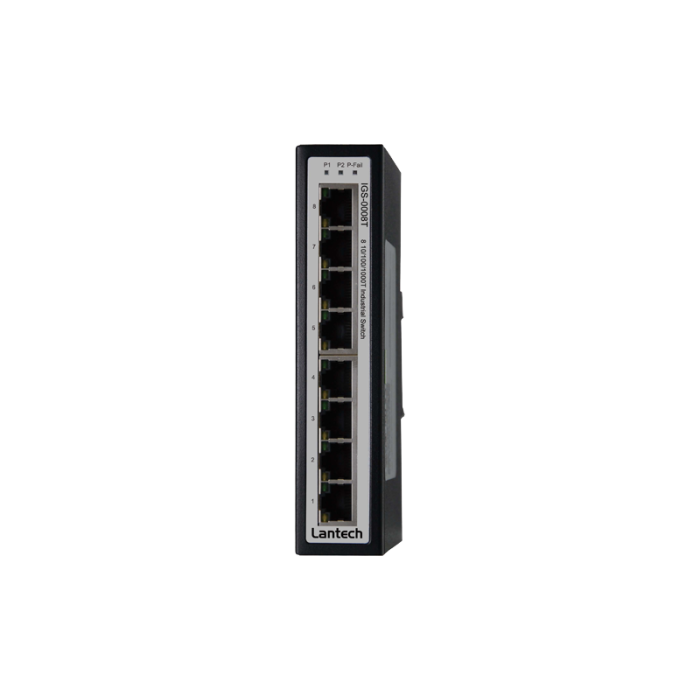

IGS-0008 - 8 x GbE Industrial Unmanaged Switch

In stock

SKU:

IGS-0008B-12V

Brand: Lantech

- Supports 9720bytes jumbo frame
- Wide-range redundant power with polarity reverse protection
- Provides ESD/ EFT protection

Downloads:

Datasheet

User Manual

Enquire Now

Enquire about this product

Name

Phone

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications

_Standards	_{IEEE 802.3 10Base-T} _{IEEE 802.3u 100Base-TX} _{IEEE 802.3ab 1000Base-T} _{IEEE802.3x Flow Control and Back Pressure}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 16Gbps} _{Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Fiber Ethernet port}
_{Memory Buffer}	_192Kbytes
_{Mac Address}	_{8K MAC address table}
_{Jumbo Frame}	_9720bytes
_Connectors	_{10/100/1000T: 8 x RJ-45}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), Fault(Red)} _{Per port: Link/Activity (Green), Speed (1000Mbps Green)}
_{Reserve polarity protection}	_Present
_{Overload current protection}	_{Resettable Fuse, 1.6A}
_{Power Supply}	_{9~56 VDC/ 12~36VAC*, Redundant power with polarity reverse protect function and removable terminal block}
_{Power Consumption}	_{5.28 Watts}
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{-20°C~60°C / -4°F~140°F (Standard model)} _{-40°C~75°C / -40°F~167°F (-E model)}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Case Dimension}	_{Metal case. IP30,} _{30mm (W) x 95mm (D) x 140mm (H)}
_Installation	_{DIN Rail and Wall Mount Design}
_{EMI & EMS}	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8,} _{CE EN61000-4-11,} _{CE EN61000-4-12,} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_Safty	_{UL, cUL} _{UL Class I Division II for Group A,B,C and D hazardous location}
_{Stability Testing}	_{IEC60068-2-32 (Free fall)} _{IEC60068-2-27 (Shock)} _{IEC60068-2-6 (Vibration)}
_MTBF	_{589,289 hrs}
_Warranty	_{5 years}

IGS-0008 - 8 x GbE Industrial Unmanaged Switch

Downloads:

Standards

IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE802.3x Flow Control and Back Pressure

Switch Architecture

Back-plane (Switching Fabric): 16Gbps Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port

Memory Buffer

192Kbytes

Mac Address

8K MAC address table

Jumbo Frame

9720bytes

Connectors

10/100/1000T: 8 x RJ-45

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m)

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), Fault(Red) Per port: Link/Activity (Green), Speed (1000Mbps Green)

Reserve polarity protection

Present

Overload current protection

Resettable Fuse, 1.6A

Power Supply

9~56 VDC/ 12~36VAC*, Redundant power with polarity reverse protect function and removable terminal block

Power Consumption

5.28 Watts

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)-40°C~75°C / -40°F~167°F (-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Case Dimension

Metal case. IP30, 30mm (W) x 95mm (D) x 140mm (H)

Installation

DIN Rail and Wall Mount Design

EMI & EMS

FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4

Safty

UL, cUL UL Class I Division II for Group A,B,C and D hazardous location

Stability Testing

IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)

MTBF

589,289 hrs

Warranty

5 years
