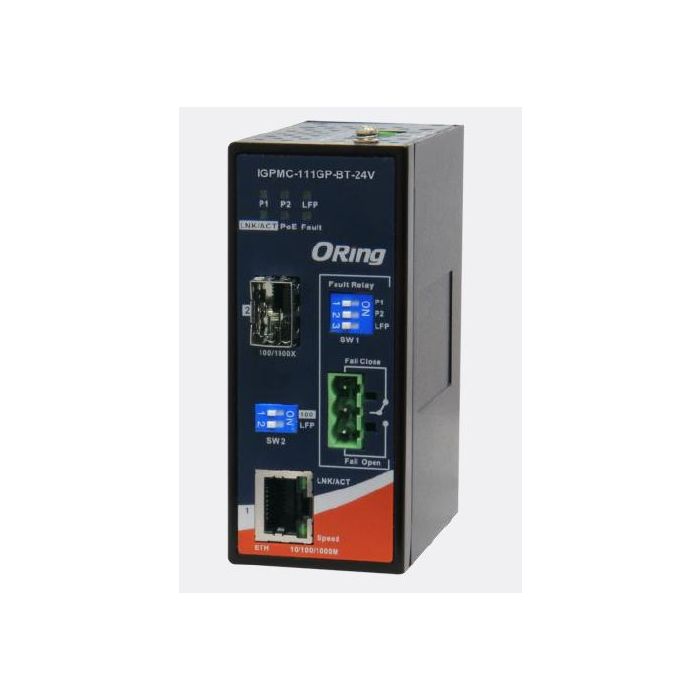

Support 1 port 10/100/1000Base-T(X) bt P.S.E. auto-negotiation and auto-MDI/MDI-X copper port Support 1 port 100/1000Base-X SFP fiber port P.S.E. fully compliant with IEEE802.3af/at/bt standard, provide up to 90Watts Support Jumbo Frame up to 10K Bytes Support LFP (Link Fault Pass-through) function Relay output to carry capacity of 1A at 24 VDC for warning system Provided DIP-Switch to setting function Rigid IP-30 housing design DIN-Rail and wall mounting enabled
Physical Ports 10/100/1000 Base-T(X) bt P.S.E. Port in RJ45 Auto MDI/MDIX 1 100/1000Base-X SFP port 1 Technology Ethernet Standards IEEE 802.3i for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3at/bt PoE specification Jumbo Frame 10K Bytes (1G mode only) LED Indicators Power / Ready Indicator Green: Power LED x 2 LFP statue indicator Amber LED – (ON) LFP function fail / (OFF) LFP function disable 100/1000Base-X SFP Port Indicator Green for port Link/Act 10/100/1000Base-T(X) RJ45 port Indicator Green for Link/Act Speed LED– Green for 1000Mbps,Off-light for 100/10Mbps Fault Indicator (Fault) Amber : Indicate unexpected event occurred PoE indicator Green: Power is supplied over Ethernet cable. Fault Contact Relay Relay output to carry capacity of 1A at 24 VDC Power Input Power Dual 12 ~ 57 VDC voltage power inputs in 4-pin terminal block PoE Power Output IEEE 802.3at(30W) mode :>=12VDC IEEE 802.3bt( 60/90W) mode:>=24VDC Power Consumption (Typ.) 5Watts (PoE output is not included) Overload Current Protection Present Reverse Polarity Protection Present Physical Characteristic Enclosure IP-30 Dimension (W x D x H) 41(W) x70 (D) x 95 (H) mm Weight (g) 300 g Environmental Storage Temperature -40 to 85oC (-40 to 185oF) Operating Temperature -40 to 75oC (40 to 167oF) Operating Humidity 5% to 95% Non-condensing Regulatory approvals EMC CE EMC (EN 55024, EN 55032), FCC Part 15 B EMI EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A EMS EN 55024 (IEC/EN 61000-4-2 (ESD: Contact 4KV, Air 8KV), IEC/EN 61000-4-3 (RS: 3V), IEC/EN 61000-4-4 (EFT Power 0.5KV, Signal 0.5KV), IEC/EN 61000-4-5 (Surge: Power 0.5KV, RJ45 1KV), IEC/EN 61000-4-6 (CS: 3V), IEC/EN 61000-4-8(PFMF) Safety EN 62368-1 Shock IEC60068-2-27 Free Fall IEC60068-2-31 Vibration IEC60068-2-6 MTBF 1,183,306hrs
