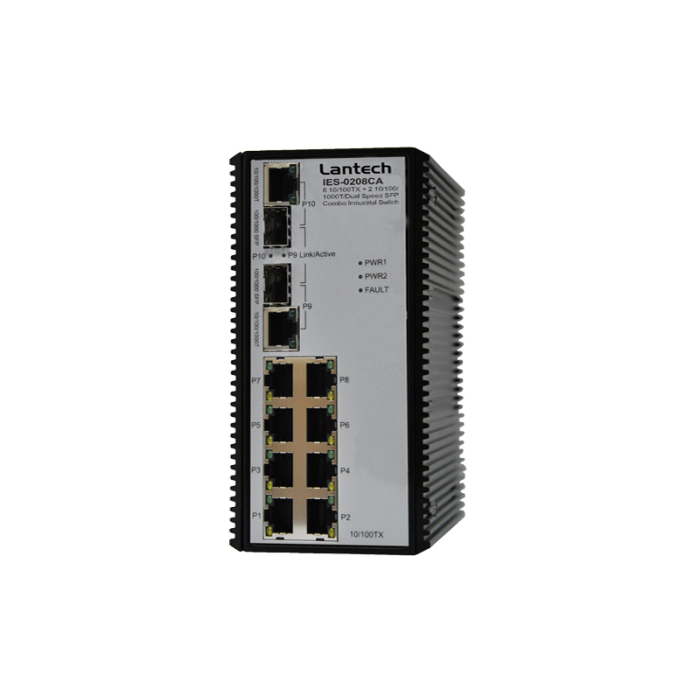

Shop IES-0208CA - 10 port SFP combo switch at Tekdis LLC

Description

_{IEEE Standards}	_{IEEE 802.3 10Base-T Ethernet} _{IEEE 802.3u 100Base-TX} _{IEEE802.3ab 1000Base-T} _{IEEE802.3z Gigabit fiber} _{IEEE802.3x Flow Control and Back Pressure}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 5.6Gbps} _{Packet throughput ability(Full-Duplex): 8.3Mpps @64bytes}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Fiber Ethernet port}
_{Packet Buffer}	_1Mbits
_{MAC Address}	_{8K MAC address table}
_Connectors	_{10/100TX: 8 x RJ-45} _{10/100/1000T/ Mini-GBIC Combo: 2 x RJ-45 + 2 x 100/1000 SFP sockets}
_{Network Cable}	_{10Base-T: UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{1000Base-TX: UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_{Optical Fiber}	_{Multi-mode: 50/125um~62.5/125um} _{Single-mode: 9/125um} _{Available distance: 2km (Multi-mode)/30km (Single-mode)} _{Wavelength: 1310nm (Multi-mode/Single-mode)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Red),} _{8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow), Power Feeding (Green)} _{Giga port: Link/Activity(Green),Giga Speed (Yellow)}
_{Relay Output}	_{Provides one relay output for port breakdown, power fail and alarm.} _{Alarm Relay current carry ability: 1A @ DC24V}
_{Power Supply}	_{External Power Supply: DC 12~48V, Redundant power D12V~DC 48V and connective removable terminal block.}
_{Power Consumption}	_{10 Watts (Max.)}
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{Standard: -20°C~60°C /-13°F~140°F}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Case Dimension}	_{IP-30, 74mm (W) x 114mm (D) x 152mm (H)}
_Installation	_{Provide DIN rail kit and optional wall mount ear for wall mount or DIN-type cabinet install}
_{EMI & EMS}	_{FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11,} _{CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)}
_Warranty	_{5 years}

Download

IES-0208CA - 10 port SFP combo switch

Description

IEEE Standards

IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure

Switch Architecture

Back-plane (Switching Fabric): 5.6Gbps Packet throughput ability(Full-Duplex): 8.3Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port

Packet Buffer

1Mbits

MAC Address

8K MAC address table

Connectors

10/100TX: 8 x RJ-45 10/100/1000T/ Mini-GBIC Combo: 2 x RJ-45 + 2 x 100/1000 SFP sockets

Network Cable

10Base-T: UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 1000Base-TX: UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)

Optical Fiber

Multi-mode: 50/125um~62.5/125um Single-mode: 9/125um Available distance: 2km (Multi-mode)/30km (Single-mode) Wavelength: 1310nm (Multi-mode/Single-mode)

Protocol

CSMA/CD

LED

Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Red), 8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow), Power Feeding (Green) Giga port: Link/Activity(Green),Giga Speed (Yellow)

Relay Output

Provides one relay output for port breakdown, power fail and alarm. Alarm Relay current carry ability: 1A @ DC24V

Power Supply

External Power Supply: DC 12~48V, Redundant power D12V~DC 48V and connective removable terminal block.

Power Consumption

10 Watts (Max.)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

Standard: -20°C~60°C /-13°F~140°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Case Dimension

IP-30, 74mm (W) x 114mm (D) x 152mm (H)

Installation

Provide DIN rail kit and optional wall mount ear for wall mount or DIN-type cabinet install

EMI & EMS

FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4

Stability Testing

IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

Warranty

5 years

Download
