IES-0008A - 8 port M12 unmanaged switch

IES-0008A - 8 port M12 unmanaged switch

In stock

SKU

IES-0008A

Brand: Lantech

- EN50155/ E-Mark certificate
- Provides M12 connector with IP67 / 43 rated protection
- Wide Operating Temperature from -40°C to 75°C

Downloads:

Product Data Sheet

Enquire Now

Enquire about this product

Name

Phone

Email

Message

Skip to the end of the images gallery

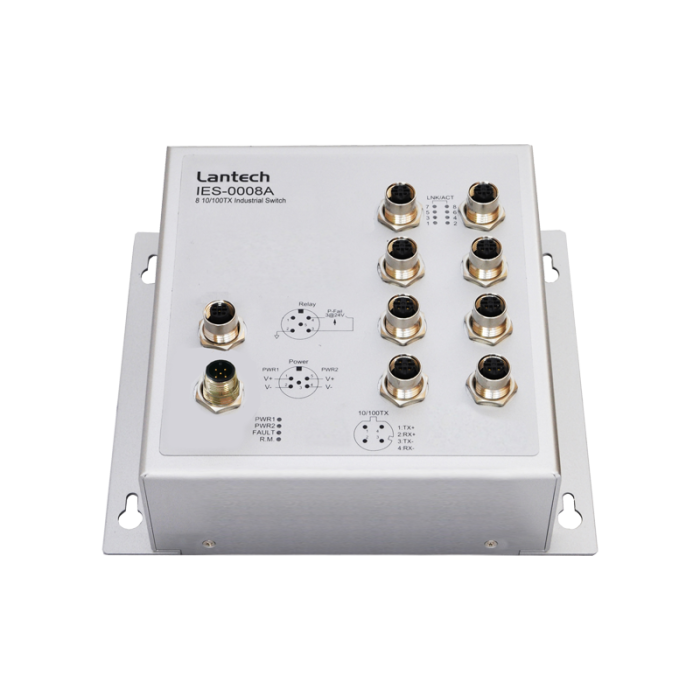

main product photo

Skip to the beginning of the images gallery

We build to order

_{IEEE Standard}	_{IEEE802.3 10BASE-T Ethernet} _{IEEE802.3u 100BASE-T Ethernet} _{IEEE802.3x Flow Control and Back Pressure}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port}
_{Mac Address}	_{8K MAC address table}
_Connector	_{10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function} _{Power connector: 1 x M12, 5-pole A-coded, Male}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green),} _{Ethernet: Link/Activity (Green)}
_{Power Supply}	_{Dual power input DC 9.5V ~90V}
_{Power Consumption}	_10Watts
_{Operating Humidity}	_{5% to 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C ~ 75°C (-40°F ~ 167°F)}
_{Storage Temperature}	_{-40°C ~ 85°C (-40°F ~ 185°F)}
_{Case Dimension}	_{Aluminum case. IP-67,} _{215mm(W)x185mm(H)x71mm(D)} _{Aluminum case, IP-43} _{202mm(W)x172mm(H)x62.5mm(D)}
_Weight	_{1.4kgs (IP67); 1.2kgs(IP43)}
_Installation	_{Din Rail**, Wall Mount Design}
_EMC	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8 (Magnetic Field),} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC61373 (Shock), EN61373 (Shock and Vibration)}
_{Certificates & Report}	_{EN50155 Compliant} _{EN50121-3-2 Compliant} _{EN50121-4 Compliant} _{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2)} _E-Marking
_Warranty	_{5 years}
