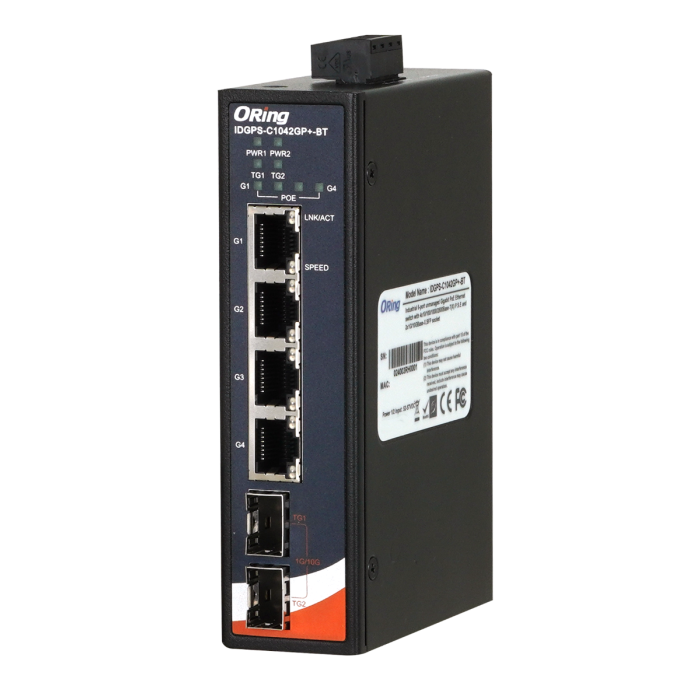

IDGPS-C1042GP+-BT Industrial 6-port Unmanaged Gigabit PoE Ethernet Switch
Industrial 6-port Unmanaged Gigabit PoE Switch with 4x10/100/1000/2500Base-T(X) P.S.E and 2 x1G/10GBase-X, SFP socket
Key Features:
- Support 4 ports 10/100/1000/2500Base-T(X) P.S.E ports
- Support IEEE 802.3bt compliant PoE
- Total power budget is 240 watts with a maximum of 90 watts per port
- Support 2 ports 1G/10GBase-X SFP socket
- Support auto-negotiation and auto-MDI/MID-X
- Support Store and forward transmission
- Support flow control
- Rigid IP-40 housing design
- DIN-rail mounting
The IDGPS-C1042GP+-BT is an Ethernet switch that comes with 4x10/100/1000/25000Base-T(X) P.S.E ports, making it a reliable choice for highly unmanaged PoE Ethernet applications. It also has 2x1G/10GBase-X SFP ports and can operate in a temperature range of -40℃ to 75℃, making it suitable for harsh environments. The switch supports power over Ethernet, which allows it to transmit electrical power along with data to remote devices over standard twisted-pair cable in an Ethernet network. P.S.E is a device that provides power in a PoE setup, such as a switch or hub. Therefore, IDGPS-C1042GP+-BT is an ideal choice for rolling stock and other applications that require a reliable PoE Ethernet switch.
| Physical ports | |
|---|---|
| 10/100/1000/2500Base-T(X) ports with P.S.E. in RJ45 | 4 |
| 1000/10G Base-X with SFP/SFP+ port | 2 |
LED Indicators |
|
|---|---|
| Power indicator | Green: Power LED x2 |
| PoE Indicator | Green LED for PoE enabled indicator |
Physical Characteristic |
|
|---|---|
| Enclosure | IP-40 Metal |
| Dimensions (mm) | 35(W) x 88(D) x 130(H)mm |
| Weight (g) | 535 g |
Technology |
|
|---|---|
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3bz for 2.5GBaseT IEEE 802.3ae for 10G SFP+ IEEE 802.3x for Flow control IEEE 802.3af/at/bt PoE specification |
| MAC Table | 8K |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 10 µs Switching bandwidth: 60Gbps |
| Jumbo frame | 16K Bytes |
Environmental |
|
|---|---|
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operating Humidity | 5% to 95% Non-condensing |
| Warranty | |
|---|---|
| Warranty | 5 years |
