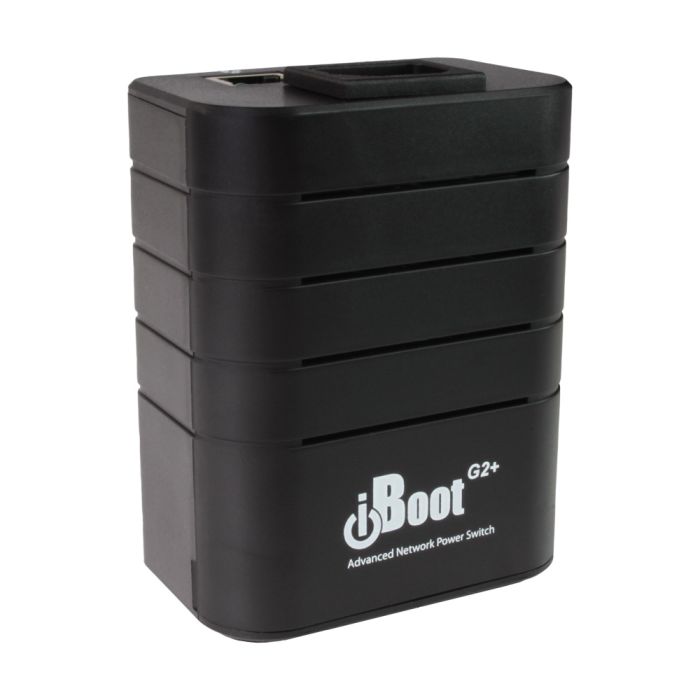

iBoot-G2+ Web Power Switch

In stock
SKU:
iBoot-G2+
Brand: Dataprobe

Control up to 3 independent outlets to protect even more devices.

Key Features:

  • Web-Controlled Power Switch
  • Expansion to 3 Outlets
  • AutoPing and HeartBeat - Auto Reboot
  • Cloud Service - Manage from Anywhere
  • UL Listed for Safety and Reliability

Downloads:

Enquire Now
Enquire about this product
We build to order
Power
  • 105 – 240 VAC Auto Ranging
Power Switching
  • 12 Amps at 105-125 VAC, 10 Amps at  210-240 VAC

Power Connectors
  • Power Inlet: IEC 320 C13 Plug. Line cord for North America Included. 16AWGX3C x 6’/2m Power Out: IEC 320 C14 Receptacle. Extension Cord for N. America Included. 16AWGX3C x 2’/60cm

Network
  • 10/100base-T, Auto sensing Uplink/Downlink Cat 5 Cable Included 6’/2m long
  • USB Mini-B Com Port 9600 8 N 1
Protocols
  • IP Addressable. DHCP or Static HTTP Web Server built-in, Port Assignable Telnet Server built-in, Port Assignable DxP Messaging Protocol, Port Assignable Auto-Ping TCP Protocol Heartbeat Detector Protocol
External I/O
Two Inputs, Two Outputs, Screw Terminal Connections:
Designator Name Description
V+ Power Out This is +12 VDC power out from the iBoot-G2+ Maximum current 100 mA
I Input Input for status signals. Dry Contact input or Open Collector.
G Ground Signal Ground for Input and Output
O Output 2N3904 NPN Transistor. 100 mA Maximum

Browser

  • Form Processing Browser Required Mozilla 3.0 or IE 3.0 or greater
Security
  • Dual Password Protected, User and Admin
Physical
  • H x W x D: 2.0″ x 3.2″ x 4.2″ (60mm x 82mm x 107mm) Operating Temperature 0 to 50 Deg. C
Reliability
  • MTBF 320,000 Hours Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load
Compliance
  • RoHS/WEEE FCC Part 15 Class B AC Versions UL/cUL UL60950 Listed I.T.E File No. E225914 CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC
