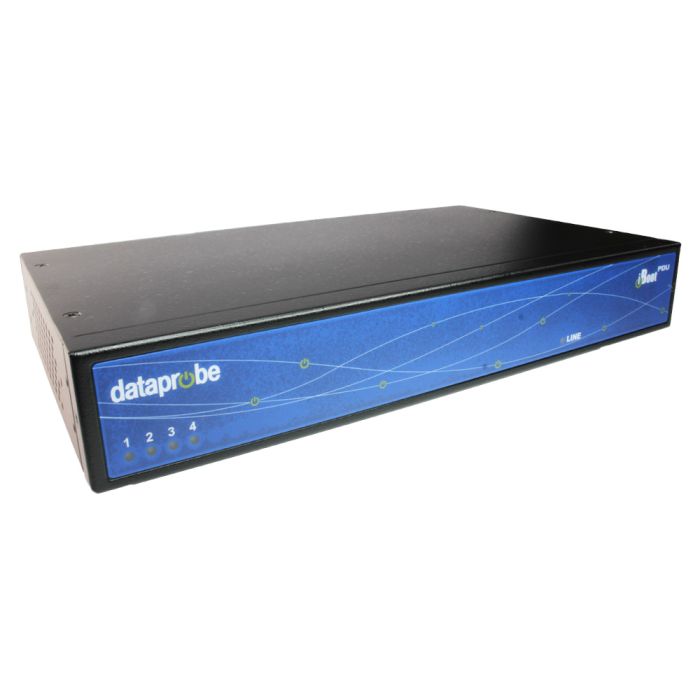

iBoot-PDU Managed/Switched/Metered PDU
4/8 Port Remote Site Power Manager 0 - 65° C 120/240VAC
Key Features:
- Enhanced Power Monitoring
- Environmental Sensors
- Increased Security
- Event Sequencing
- Cloud-Based Management
- 4 Outlet Form Factors
Enquire Now
Enquire about this product:
When you need to reduce costly site visits, ensure business continuity and increase network reliability, iBoot-PDU gives you peace of mind. iBoot-PDU, is a web-accessible, managed PDU with independently controlled outlets, and automation features to take care of problems automatically.
Key Features:
- Enhanced Power Monitoring
- Current and Voltage Monitoring. Clear home page display of High/Low and alarm trigger point settings.
- Environmental Sensors
- External temperature probes can notify you when things get out of spec and turn on or off outlets to bring the environment back to normal. It uses low-cost USB sensors to increase availability and reliability.
- Increased Security
- SSH and SSL security for telnet and web communications. Multiple users with access rights managed. Can enforce complex passwords.
- Event Sequencing
- Build multi-action sequences with power and notification options. Repeat and loop actions that can be triggered by alarm conditions or manually.
- Cloud-Based Management
- Integration to iBoot Cloud Service for managing all power control worldwide from a single sign-on.
- 4 Outlet Form Factors
- Smaller units for limited space and outlet count needs. Identical capabilities to 8 outlet models.
Core Design Principals:
- Reliability
- Product reliability and stability are core design principles of the iBootPDU. Nothing in the design should compromise the reliability and stability of the product.
- Automation
- Configure alarm conditions using power, environmental and network testing elements and trigger action sequences with power control and notification. Use AutoPing to test network status, Voltage and Current sensors to monitor line conditions and environmental sensors to test for out-of-normal status. Reboot or switch on
- Customizability
- The iBootPDU is designed from the outset to allow for customization of the user interface. Support shall be provided to allow for separation of user interface content and control from the presentation of content and management, and individualized activation of product features and functionality. This allows the product to easily assume distinct personality profiles as needed to support sales and marketing.
- Modularity
- The iBootPDU will use USB ports to allow multiple local units. The iBootPDU will use external components to provide enhanced features such as environmental monitoring, I/O expansion, additional communications modes (3G, WiFi)
Physical
| Height: | 1U 1.75 in (4.5 cm) |
| Width: | 11.0 in (27.94 cm) |
| Depth: | 6.00 in (15.25 cm) |
| Weight: | 4.5 lbs (2 kg) |
| Temperature | |
| Operating: | 0 to 65o C |
| Storage: | -10 to 85o C |
| Relative Humidity | 0 to 95% Non-Condensing |
| Altitude | 2000m Operating |
AC Input
- 100-240 VAC VAC
- 10 AMP Models: IEC320 C14 Receptacle
- 20 AMP Models: IEC320 C20 Receptacle
Network
- Single or Dual (S Models) 1G Ethernet
- Web, Telnet, SNMP, SMTP
- Port Assignable for Web and Telnet.
- SSL Security on Web control
USB Ports
- 4 x USB A ports for accessories, modem, temperature probe, etc.
- 1 x USB B port for serial port and external battery
Temperature Module Option
- USB Dual Temperature Sensors. Sensor 2 on 1m cable.
Landline Modem Option
- 56Kbps V.92 Global Compliance, Data or Tone Dial (DTMF) control
Switched Outlet
- 4 or 8 IEC 320 C13 Receptacle
- 10 Amps Max per Receptacle
- -C10 Models: 15 Amps Max per Linecord
- -C20 Models: 20 Amps Max per Linecord
Compliance - Safety
- Complies with UL62638-1, 2nd Edition, 2014-12-01 (US), IEC62638-1:2014 EN 62368-1:2014 + A11:2017
- Complies with CAN/CSA C22.2 No. 62638-1-14, 2nd Edition, 2014-12-01 (Canada)
Compliance - Emissions
- FCC Part 15 A
- ANSI C63.4:2014 & 47 CFR Part 15, Subpart B, Class B
- ICES-003:2016 Issue 6, Class B
Compliance - Environmental
- RoHS 3 Directive (EU) 2015/863Compliant
- Rated Pollution Degree 2 (PD 2) for use in business/laboratory environments with only Non-Conductive pollution present
