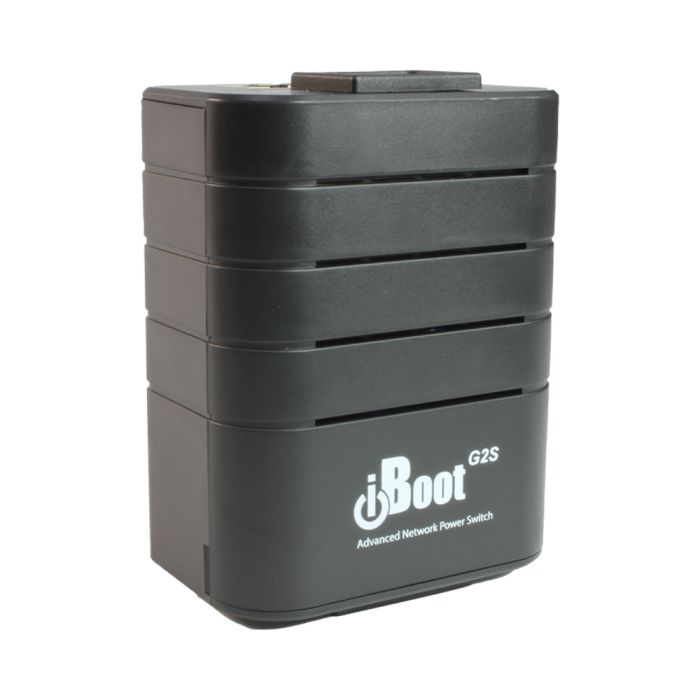

iBoot-G2S Web Power Switch

SKU: IBOOT-G2S

Has a built-in 10/100 network switch that makes installation in those hard-to-reach locations a breeze.

Key Features:

  • Web-Controlled Power Switch
  • Integrated 10/100 Network Switch
  • AutoPing and HeartBeat - Auto Reboot
  • Cloud Service - Manage from Anywhere
  • UL Listed for Safety and Reliability
Datasheet

Description

Reduce downtime to keep your critical systems operational and your customers satisfied. iBoot offers automatic and web-controlled power switching to get you back online quickly.

This model includes a built-in 10/100 network switch, making installation in difficult-to-reach areas a breeze. There is no need for a separate cable run or router port with this product to benefit from the cost savings of remote reboot. Please consider the iBoot-G2 if you are looking for a basic product with a limited number of features.

Using the free iBoot Cloud Service, you can manage one or more iBoots with a single sign-on. Simply logging in gives you access to as many locations as you need.

Key Features:

  • Simple Web Browser Operation
    • Just point your browser to the iBoot, login and you are one click away from bringing that failed system back to life
    • All setup functions are easy to configure from the browser
  • Free Cloud Service
    • Manage an unlimited number of iBoots from a single login
    • Eliminate port forwarding and dynamic DNS issues
    • More secure with outbound connections only
  • 2 Port Network Switch Built-in
    • 10/100 switch eliminates extra cables and make installation easier
    • Includes 2 customizable external I/O to expand to 3 outlets or for outlet control
  • Plus
    • USB port for direct serial control and programmable shutdown prior to auto power reboot
    • Includes additional auto ping triggers

Download

Datasheet

More Information

Brand Dataprobe
Specifications
Power
12 Amps at 105-125 VAC, 10 Amps at 210-240 VAC

Power Switching
  • 12 Amps at 105-125 VAC, 10 Amps at  210-240 VAC
Power Connectors
  • Power Inlet: IEC 320 C13 Plug. Line cord for North America Included. 16AWGX3C x 6’/2m Power Out: IEC 320 C14 Receptacle. Extension Cord for N. America Included. 16AWGX3C x 2’/60cm
Network
  • 10/100base-T, Auto sensing Uplink/Downlink Cat 5 Cable Included 6’/2m long
  • USB Mini-B Com Port 9600 8 N 1
Protocols
  • IP Addressable. DHCP or Static HTTP Web Server built-in, Port Assignable Telnet Server built-in, Port Assignable DxP Messaging Protocol, Port Assignable Auto-Ping TCP Protocol Heartbeat Detector Protocol
External I/O
  • Two Inputs, Two Outputs, Screw Terminal Connections:
Designator Name Description
V+
Power Out
This is +12 VDC power out from the iBoot-G2+ Maximum current 100 mA
I Input
Input for status signals. Dry Contact input or Open Collector.
G Ground
Signal Ground for Input and Output
O Output
2N3904 NPN Transistor. 100 mA Maximum

Browser
  • Form Processing Browser Required Mozilla 3.0 or IE 3.0 or greater
Security
  • Dual Password Protected, User and Admin
Physical
  • H x W x D: 2.0″ x 3.2″ x 4.2″ (60mm x 82mm x 107mm) Operating Temperature 0 to 50 Deg. C
Reliability
  • MTBF 320,000 Hours Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load
Compliance
  • RoHS/WEEE FCC Part 15 Class B AC Versions UL/cUL UL60950 Listed I.T.E File No. E225914 CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC
