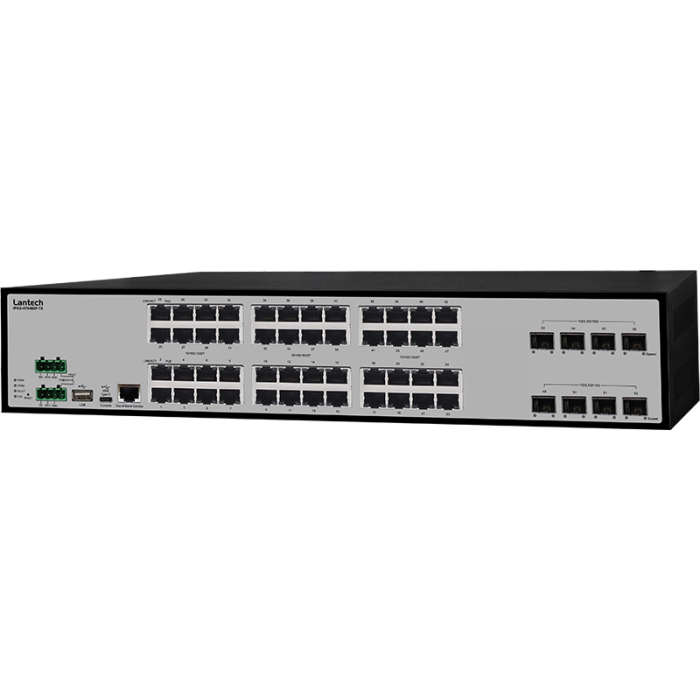

I(P)GS-H7848XF-TX 48GE + 8 10G SFP+ Industrial Managed PoE Switch

SKU: IxGS-H7848XF-TX-xx-2xxx-xx-x-OOB

48 GE + 8 10G SFP+ (w/48 PoE) Managed Ethernet Switch w/optional L3L/L3 & Cybersecurity

Key Features:

  • 48GE RJ45 + 8× 10G SFP+
  • Optional 48-port PoE at/af
  • OS5 L3/L2 managed platform
  • IEC 62443 cybersecurity option
  • OOB management and USB config
  • PTP v2 and MACsec options
  • Rackmount IP30 metal housing
  • 16.8–137.5VDC or 90–264VAC
Datasheet

Description

Product Overview

The Lantech I(P)GS-H7848XF-TX is a high-performance OS5-managed Ethernet switch designed for high-density industrial, infrastructure, and secure network applications. It provides 48 Gigabit RJ45 ports and 8 auto-sensing 1G/2.5G/5G/10G SFP+ ports, delivering a total of 56 ports in a 2U rackmount platform. With optional 48-port PoE, Layer 3 Lite, Layer 3, IEC 62443 cybersecurity, MACsec, PTP v2 and railway communication protocol support, the I(P)GS-H7848XF-TX is suited to demanding backbone, surveillance, automation and transport network deployments.

Key Features

48 GE and 8 10G SFP+ Ports

  • 48 x 10/100/1000T RJ45 ports

  • 8 x 1G/2.5G/5G/10G SFP+ sockets

  • Total of 56 ports for high-density network deployments

  • 256 Gbps switching fabric and 16K MAC address table

  • 10KB jumbo frame support

PoE Model Options

  • Available with 48 PoE 802.3af/at ports

  • Up to 30 W per PoE port for connected PD devices

  • Maximum PoE budget up to 720 W from a separate PoE power input

  • Supports advanced PoE management with detection and scheduling

  • Per port PoE enable, disable, voltage, current, wattage and temperature monitoring

  • Perpetual PoE and Fast PoE support for critical connected devices

OS5 Managed Switch Platform

  • Complete Layer 2 management feature set

  • Optional Layer 3 Lite and Layer 3 support

  • Supports dynamic routing, multicast routing and hardware-based NAT

  • Optional ETBN TTDP, TRDP, MACsec and PTP v2 support

  • IPv4 and IPv6 network support for modern managed deployments

Cybersecurity and Network Protection

  • Optional IEC 62443-4-2 cybersecurity model

  • DDoS attack mitigation and Layer 2 threat protection

  • 802.1X port-based authentication

  • Dynamic ARP Inspection, IP Source Guard and Port Security support

  • SNMPv3 security models for authentication, encryption and access control

Management and Diagnostics

  • Web GUI and complete CLI support

  • RESTful API for centralised network management

  • Auto topology drawing for easier configuration

  • Auto provisioning for firmware and configuration updates

  • USB Type-C console port and USB Type-A configuration port

  • Out-of-band RJ45 management port for secure access

Power and Reliability

  • Dual galvanically isolated DC 16.8 V to 137.5 V input models

  • Dual isolated AC 90 V to 264 V input models

  • Dedicated 48 VDC PoE power input on PoE models

  • Dying Gasp support for power loss event notification

  • Real Time Clock with a golden capacitor for accurate event logs

  • Enhanced environmental monitoring for voltage, current, temperature and power load

Rugged Rackmount Design

  • IP30 metal enclosure

  • 2U rackmount design

  • Standard temperature models from -20°C to 60°C

  • Wide temperature models from -40°C to 75°C

  • 5% to 95% non-condensing operating humidity

  • DI/DO and relay terminal blocks for alarm and event integration

Applications and Use Cases

The I(P)GS-H7848XF-TX is suitable for:

  • High-density industrial Ethernet networks

  • Large-scale IP surveillance systems

  • Control room and infrastructure switching

  • Transport and onboard network deployments

  • Factory automation and plant-wide networking

  • Secure managed Layer 2 and Layer 3 switching

  • PoE device aggregation for cameras, wireless access points and edge devices

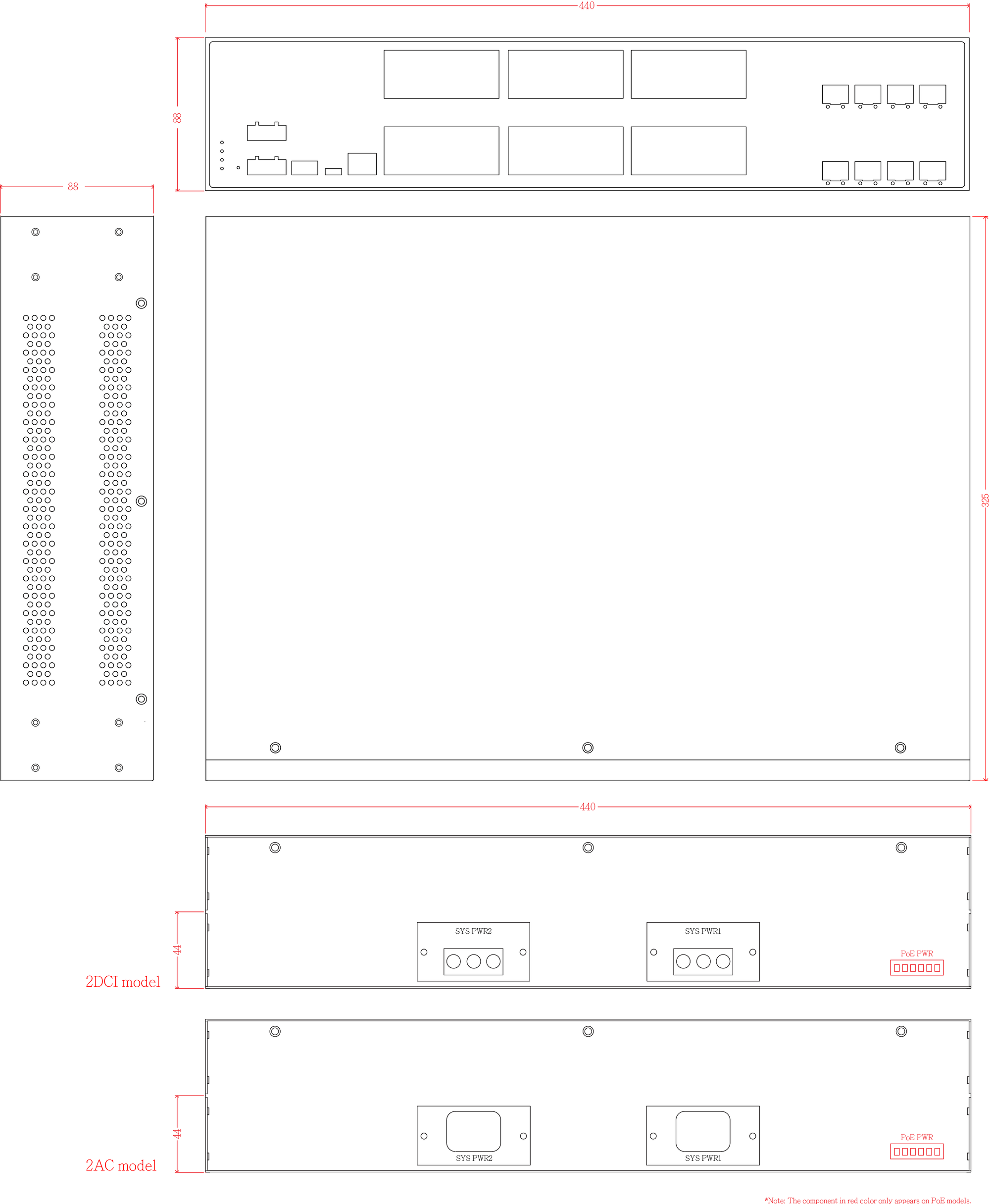

Dimensions/Drawings





Download

Datasheet

More Information

Brand Lantech
Specifications

Standards

IEEE 802.3u 100BASE-FX
IEEE 802.3z 1000BASE-SX / 1000BASE-LX
IEEE 802.3ae 10GBASE-SR (850nm multi-mode) /10GBASE-LR (1310nm single-mode) / 10GBASE-ER (1550nm single-mode)
IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3an 10Gbase-T
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ax Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet (PoE models)

Switch Architecture

Back-plane (Switching Fabric): 256Gbps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

48 10/100/1000T RJ-45 with auto MDI/MDI-X function
8 1G/2.5G/5G/10G Mini-GBIC: SFP+ sockets
Console: USB type C
USB type A slot for upload/download config file
Out-Of-Band connector: RJ45 *1
DI/DO and Relay: 2x 4 pin terminal blocks

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA

Optical Cable

1Gbps:
Multi-mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
2.5Gbps
Multi-mode: 0 to 300 m, 850 nm (50/125 μm);
Single mode: 0 to 2 km/ 15 km/ 40 km, 1310 nm (9/125 μm); 0 to 40 km/ 80 km/ 100km, 1550 nm (9/125 μm)
WDM 1Gbps:
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 2.5Gbps
Single mode: 0 to 5 km/ 20 km/ 40 km/ 60 km, 1310 /1550nm (9/125 μm); 0 to 80 km, 1490/1550 nm (9/125 μm)
10Gbps
Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm);
Single mode: 0 to 10 km/ 20 km, 1310 nm (9/125 μm); 0 to 40 km/ 80km/ 100 km, 1550 nm (9/125 μm)
WDM 10Gbps
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1270/1330 nm (9/125 μm); 0 to 80km, 1490/1550 nm (9/125 μm)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red)
R.M. indicator (Green)
100M/1G Mini-GBIC: Link/Active (Green); Speed (Orange)
2.5G/5G/10G Mini-GBIC: Link/Activity (Green); Speed (Orange)
100M/1G Copper port: Link/Active (Green); Speed (100M/1G: Green; 2.5G/5G/10G: Orange)
PoE: Link/Act (Green) (PoE model)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (standard model)
-40°C~75°C / -40°F~167°F (-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

2DCI model: Galvanic isolated 16.8~137.5VDC
2AC model: 90~264VAC IEC320 socket

PoE Budget (PoE model)

Max 720W (from separate PoE power supply)
(50-57VDC input is recommended for 802.3at 30W applications)

PoE pin assignment (PoE model)

RJ-45 port #1~#24 & #29~#52 supports IEEE 802.3at/af End-point, Alternative A mode. (IPGS-H7848XF-TX-48)
Positive (VCC+): RJ-45 pin 1,2.
Negative (VCC-): RJ-45 pin 3,6.

PoE Type (PoE model)

IEEE802.3af/at (Type 1, PoE)
IEEE802.3at (Type 2, PoE+)

Power Consumption

Max. 120W

Dimensions

Metal case. IP-30
440mm(W)x88mm(H)x325mm(D)

Weight

5.8kgs

Installation

Rackmount Design

EMI & EMS

FCC Part 15 Class A
EN61000-6-2
EN61000-6-4
CE EN55032 Class A
CE EN55024
CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3

MTBF

114,831 hrs. (standards: IEC 62380)

Ordering Information

P/N

Model name

Description

8361-0461

IGS-H7848XF-TX-2DCI-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply; IP30 rackmount design; -20°C to 60°C；w/Out-of-band

8361-04601

IGS-H7848XF-TX-2DCI-E-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply; IP30 rackmount design; -40°C to 75°C；w/Out-of-band

8361-046

IGS-H7848XF-TX-2AC-EU-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C; EU power cords；w/Out-of-band

8361-04611

IGS-H7848XF-TX-2AC-EU-E-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C; EU power cords；w/Out-of-band

8361-0462

IGS-H7848XF-TX-2AC-UK-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C; UK power cords；w/Out-of-band

8361-04621

IGS-H7848XF-TX-2AC-UK-E-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C; UK power cords；w/Out-of-band

8361-0464

IGS-H7848XF-TX-2AC-US-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C; US power cords；w/Out-of-band

8361-04641

IGS-H7848XF-TX-2AC-US-E-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C; US power cords；w/Out-of-band

8361-0467

IPGS-H7848XF-TX-48-2DCI-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ with 48 PoE at/af Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C；w/Out-of-band

8361-0463

IPGS-H7848XF-TX-48-2DCI-E-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ with 48 PoE at/af Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C；w/Out-of-band

8361-0465

IPGS-H7848XF-TX-48-2AC-EU-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ with 48 PoE at/af Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C; EU power cords；w/Out-of-band

8361-04651

IPGS-H7848XF-TX-48-2AC-EU-E-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ with 48 PoE at/af Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C; EU power cords；w/Out-of-band

8361-0466

IPGS-H7848XF-TX-48-2AC-UK-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ with 48 PoE at/af Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C; UK power cords；w/Out-of-band

8361-04661

IPGS-H7848XF-TX-48-2AC-UK-E-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ with 48 PoE at/af Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C; UK power cords；w/Out-of-band

8361-0468

IPGS-H7848XF-TX-48-2AC-US-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ with 48 PoE at/af Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C; US power cords；w/Out-of-band

8361-04681

IPGS-H7848XF-TX-48-2AC-US-E-OOB

48 10/100/1000T + 8 1G/2.5G/5G/10G SFP+ with 48 PoE at/af Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C; US power cords；w/Out-of-band
