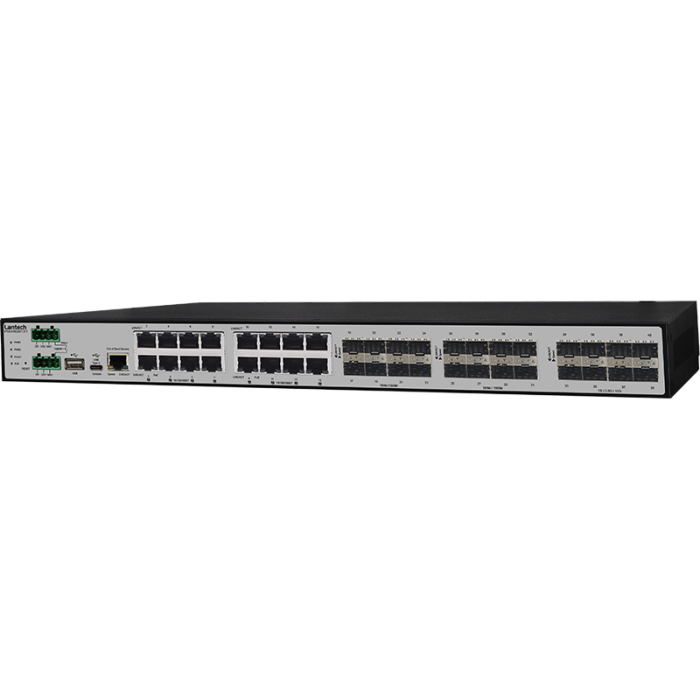

I(P)GS-H7832XF-DFT 16GE + 16 SFP + 8 10G SFP+ Managed PoE Switch

SKU: IxGS-H7832XF-DFT-xx-2xxx-xx-x-OOB

16GE + 16GE SFP + 8 10GE SFP+ (PoE) Managed Ethernet Switch; dual DCI/AC input models w/optional L3L/L3 & Cybersecurity

Key Features:

  • 16GE + 16× SFP + 8× 10G SFP+
  • 16-port PoE or 8-port PoE++ options
  • OS5 L3/L2 managed platform
  • IEC 62443 cybersecurity option
  • OOB management and USB config
  • PTP v2 and MACsec options
  • Rackmount IP30 metal housing
  • 16.8–137.5VDC or 90–264VAC
Datasheet

Description

Product Overview

The Lantech I(P)GS-H7832XF-DFT is a high-performance OS5-managed Ethernet switch designed for high-density industrial, transport, fibre aggregation, and secure network applications. It provides 16 Gigabit RJ45 ports, 16 100M/1G SFP fibre ports, and 8 auto-sensing 1G/2.5G/5G/10G SFP+ ports, delivering a total of 40 ports on a rack-mount platform. With PoE model options, optional Layer 3 Lite, Layer 3, cybersecurity, MACsec, PTP v2, ETBN TTDP and TRDP support, the I(P)GS-H7832XF-DFT is suited to demanding backbone, onboard and infrastructure network deployments.

Key Features

16 GE, 16 SFP and 8 10G SFP+ Ports

  • 16 x 10/100/1000T RJ45 ports

  • 16 x 100M/1G SFP fibre ports

  • 8 x 1G/2.5G/5G/10G SFP+ auto-sensing sockets

  • Total of 40 ports for high-density network deployments

  • 224 Gbps switching fabric and 16K MAC address table

PoE Model Options

  • Available with 16 PoE af/at ports

  • Alternative model supports 8 Type 4 PoE bt/at/af ports

  • Up to 30 W per port on 802.3af/at PoE models

  • Up to 90 W per port on Type 4 PoE models

  • PoE budget up to 480 W or 720 W, depending on model

  • Supports Perpetual PoE and Fast PoE for critical connected devices

OS5 Managed Switch Platform

  • Complete Layer 2 management feature set

  • IPv4 and IPv6 network support

  • Optional Layer 3 Lite and Layer 3 support

  • NAT support on applicable software configurations

  • Optional MACsec, PTP v2, ETBN TTDP and TRDP protocol support

Cybersecurity and Network Protection

  • Optional IEC 62443-4-2 cybersecurity model

  • DDoS attack mitigation and Layer 2 threat protection

  • 802.1X port-based authentication

  • Dynamic ARP Inspection, IP Source Guard and Port Security support

  • SNMPv3 security models for authentication, encryption and access control

Redundancy and Reliability

  • Standardised ITU G.803 ring support

  • Auto feed configuration for replacement switch deployment

  • Real Time Clock with a golden capacitor for accurate event logs

  • Enhanced environmental monitoring for input voltage, current, temperature and power load

  • Designed for resilient industrial and transport network operation

Management and Diagnostics

  • Web GUI and complete CLI support

  • RESTful API for centralised network management

  • Auto topology drawing for easier configuration

  • Auto provisioning for firmware and configuration updates

  • USB Type-C console port and USB Type-A configuration port

  • Out-of-band RJ45 management port

Rugged Rackmount Design

  • IP30 rackmount enclosure

  • Dual galvanically isolated DC 16.8 V to 137.5 V input models

  • Dual isolated AC 90 V to 264 V input models

  • Standard temperature models from -20°C to 60°C

  • Wide temperature models from -40°C to 75°C

  • DI/DO and relay terminal blocks for alarm and event integration

Applications and Use Cases

The I(P)GS-H7832XF-DFT is suitable for:

  • Industrial fibre aggregation

  • Railway and transportation networks

  • High-density IP surveillance systems

  • Onboard and infrastructure Ethernet networks

  • Factory automation and plant-wide networking

  • Secure managed Layer 2 and Layer 3 switching

  • High bandwidth SFP and SFP+ backbone deployments

Dimensions/Drawings





Download

Datasheet

More Information

Brand Lantech
Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3an 10Gbase-T
IEEE 802.3u 100BASE-FX
IEEE 802.3z 1000BASE-SX / 1000BASE-LX
IEEE 802.3ae 10GBASE-SR (850nm multi-mode) /10GBASE-LR (1310nm single-mode) / 10GBASE-ER (1550nm single-mode)
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ax Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet
Type 3 IEEE802.3bt Power over Ethernet
Type 4 IEEE802.3bt Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 224 Gbps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100/1000T: 16 x ports RJ-45 with Auto MDI/MDI-X function
Mini-GBIC: 16 x 100M/1G SFP + 8 x 1G/2.5G/10G SFP+ auto-sensing cage with DDMI
Console: USB2.0 type C
USB2.0 type A slot for upload/download config file
Out-Of-Band connector: RJ45 *1
DI/DO and Relay: 2x 4 pin terminal blocks

Optical Cable

1Gbps:
Multi-mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
2.5Gbps
Multi-mode: 0 to 300 m, 850 nm (50/125 μm);
Single mode: 0 to 2 km/ 15 km/ 40 km, 1310 nm (9/125 μm); 0 to 40 km/ 80 km/ 100km, 1550 nm (9/125 μm)
WDM 1Gbps:
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 2.5Gbps
Single mode: 0 to 5 km/ 20 km/ 40 km/ 60 km, 1310 /1550nm (9/125 μm); 0 to 80 km, 1490/1550 nm (9/125 μm)
10Gbps
Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm);
Single mode: 0 to 10 km/ 20 km, 1310 nm (9/125 μm); 0 to 40 km/ 80km/ 100 km, 1550 nm (9/125 μm)
WDM 10Gbps
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1270/1330 nm (9/125 μm); 0 to 80km, 1490/1550 nm (9/125 μm)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red)
R.M. indicator (Green)
100M/1G Mini-GBIC: Link/Active (Green); Speed (Orange)
2.5G/5G/10G Mini-GBIC: Link/Activity (Green); Speed (Orange)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (standard model)
-40°C~75°C / -40°F~167°F (-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

2DCI model: Galvanic isolated 16.8~137.5VDC
2AC model: 2x 90-264VAC IEC320 power input socket

PoE Budget (PoE model)

480W (-16 AT model)
720W (-8 T4 BT model)

PoE pin assignment (PoE model)

RJ45 port #1~#16 (AT 30W)
RJ45 port #1.3.5.7.9.11.13.15 (BT 90W)
Support IEEE 802.3bt/at/af End-point, Alternative A mode

Power Consumption

Max. 70W w/o PoE load

Dimensions

Metal case. IP-30
440mm(W)x44mm(H)x325mm(D)

Weight

2.9kgs

Installation

Rackmount Design

EMI & EMS

FCC Part 15 Class A
EN61000-6-2
EN61000-6-4
CE EN55032 Class A
CE EN55035
CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3

Verifications

EN50121-1/EN50121-4; EN50125-3,
EN50124-1/IEC60664-1, EN61140-1

MTBF

251,998 hrs (standards: IEC 62380)

Ordering Information

P/N

Model name

Description

8361-051

IGS-H7832XF-DFT-2DCI-OOB

16 10/100/1000T + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply; IP30 rackmount design; -20°C to 60°C；w/Out-of-band

8361-05101

IGS-H7832XF-DFT-2DCI-E-OOB

16 10/100/1000T + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply; IP30 rackmount design; -40°C to 75°C；w/Out-of-band

8361-0511

IGS-H7832XF-DFT-2AC-EU-OOB

16 10/100/1000T + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C, EU power cord；w/Out-of-band

8361-05111

IGS-H7832XF-DFT-2AC-EU-E-OOB

16 10/100/1000T + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C, EU power cord；w/Out-of-band

8361-05112

IGS-H7832XF-DFT-2AC-UK-OOB

16 10/100/1000T + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C, UK power cord；w/Out-of-band

8361-05113

IGS-H7832XF-DFT-2AC-UK-E-OOB

16 10/100/1000T + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C, UK power cord；w/Out-of-band

8361-05114

IGS-H7832XF-DFT-2AC-US-OOB

16 10/100/1000T + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C, US power cord；w/Out-of-band

8361-05115

IGS-H7832XF-DFT-2AC-US-E-OOB

16 10/100/1000T + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C, US power cord；w/Out-of-band

8361-0512

IPGS-H7832XF-DFT-16-2DCI-OOB

16 10/100/1000T PoE at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C；w/Out-of-band

8361-05121

IPGS-H7832XF-DFT-16-2DCI-E-OOB

16 10/100/1000T PoE at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C；w/Out-of-band

8361-0513

IPGS-H7832XF-DFT-16-2AC-EU-OOB

16 10/100/1000T PoE at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C, EU power cords；w/Out-of-band

8361-05131

IPGS-H7832XF-DFT-16-2AC-EU-E-OOB

16 10/100/1000T PoE at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C, EU power cords；w/Out-of-band

8361-05132

IPGS-H7832XF-DFT-16-2AC-UK-OOB

16 10/100/1000T PoE at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C, UK power cords；w/Out-of-band

8361-05133

IPGS-H7832XF-DFT-16-2AC-UK-E-OOB

16 10/100/1000T PoE at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C, UK power cords；w/Out-of-band

8361-05134

IPGS-H7832XF-DFT-16-2AC-US-OOB

16 10/100/1000T PoE at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C, US power cords；w/Out-of-band

8361-05135

IPGS-H7832XF-DFT-16-2AC-US-E-OOB

16 10/100/1000T PoE at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C, US power cords；w/Out-of-band

8361-0514

IPGS-H7832XF-DFT-8-2DCI-OOB

16 10/100/1000T w/8 PoE T4 bt/at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C；w/Out-of-band

8361-05141

IPGS-H7832XF-DFT-8-2DCI-E-OOB

16 10/100/1000T w/8 PoE T4 bt/at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C；w/Out-of-band

8361-0515

IPGS-H7832XF-DFT-8-2AC-EU-OOB

16 10/100/1000T w/8 PoE T4 bt/at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C, EU power cord；w/Out-of-band

8361-05151

IPGS-H7832XF-DFT-8-2AC-EU-E-OOB

16 10/100/1000T w/8 PoE T4 bt/at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C, EU power cord；w/Out-of-band

8361-05152

IPGS-H7832XF-DFT-8-2AC-UK-OOB

16 10/100/1000T w/8 PoE T4 bt/at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C, UK power cord；w/Out-of-band

8361-05153

IPGS-H7832XF-DFT-8-2AC-UK-E-OOB

16 10/100/1000T w/8 PoE T4 bt/at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C, UK power cord；w/Out-of-band

8361-05154

IPGS-H7832XF-DFT-8-2AC-US-OOB

16 10/100/1000T w/8 PoE T4 bt/at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C, US power cord；w/Out-of-band

8361-05155

IPGS-H7832XF-DFT-8-2AC-US-E-OOB

16 10/100/1000T w/8 PoE T4 bt/at/af + 16 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C, US power cord；w/Out-of-band

OPTIONAL ACCESSORIES - Power cords (2AC models)

Description Part Number
EUROPE AC POWER CORDS P/N: 4106-00000014-001
USA AC POWER CORDS P/N: 4106-00000012-001
UK AC POWER CORDS P/N: 4106-00000015-001

OPTIONAL ACCESSORIES - Mini GBIC (SFP)

Model name Description Model name Description
8330-162D-V1 MINI GBIC 1000SX (LC/0.5km) Transceiver 8330-184D-V1 LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-163D-V1 MINI GBIC 1000SX2 (LC/2km) Transceiver 8330-185D-V1 LTSFP-1000BX-80KM Transceiver (WDM 1550)
8330-165D-V1 MINI GBIC 1000LX (LC/10km) Transceiver 8330-262D-V1 MINI GBIC 2.5G 850nm VCSEL (LC/0.3km) Transceiver
8340-0591D-V1 MINI GBIC 1000LHX (LC/40km) Transceiver 8330-263D-V1 MINI GBIC 2.5G 1310nm FP (LC/2km) Transceiver
8330-166D-V1 MINI GBIC 1000XD (LC/50km) Transceiver 8330-265D-V1 MINI GBIC 2.5G 1310nm DFB (LC/15km) Transceiver
8330-169D-V1 MINI GBIC 1000XD (LC/60km) Transceiver 8330-193D-V1 10G Base SFP+ SR, Multi-mode (LC/300m) Transceiver
8330-167D-V1 MINI GBIC 1000ZX (LC/80km) Transceiver 8330-194D-V1 10G Base SFP+ LR, Single-mode (LC/10km) Transceiver
8330-170D-V1 MINI GBIC 1000EZX (120km) Transceiver 8330-223D-V1 10G Base SFP+ LR, Single-mode (LC/1310nm/20km) DDM Transceiver
8330-168-V1 MINI GBIC 1000T (100m) Transceiver 8330-225D-V1 10G Base SFP+ LR , Single-mode (LC/1310nm /40km) DDM Transceiver
8330-188D-V1 LTSFP-1000BX-10KM Transceiver (WDM 1310) 8330-205D-V1 10G Base SFP+ LR , Single-mode (LC/1550nm/40km) DDM Transceiver
8330-189D-V1 LTSFP-1000BX-10KM Transceiver (WDM 1550) 8330-209D-V1 10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1270)
8330-186D-V1 LTSFP-1000BX-20KM Transceiver (WDM 1310) 8330-210D-V1 10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1330)
8330-187D-V1 LTSFP-1000BX-20KM Transceiver (WDM 1550) 8330-200D-V1 10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1270)
8330-180D-V1 LTSFP-1000BX-40KM Transceiver (WDM 1310) 8330-201D-V1 10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1330)
8330-182D-V1 LTSFP-1000BX-40KM Transceiver (WDM 1550) 8330-202D-V1 10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1270)
8330-181D-V1 LTSFP-1000BX-60KM Transceiver (WDM 1310) 8330-203D-V1 10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1330)
8330-183D-V1 LTSFP-1000BX-60KM Transceiver (WDM 1550) 8330-206-V1 10G/5G/2.5G/1000Base-T SFP, 3.3V,30m (10G) 50m (2.5G/5G) 100m (1G); -10~70°C
    All SFP ended with D are with Diagnostic function
Builder Banner

Need something specific?

We build to order.

We can customise any solutions according to your specifications. Click below to learn more
and contact us.

Learn more Speak to a specialist

Product

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Sign In
