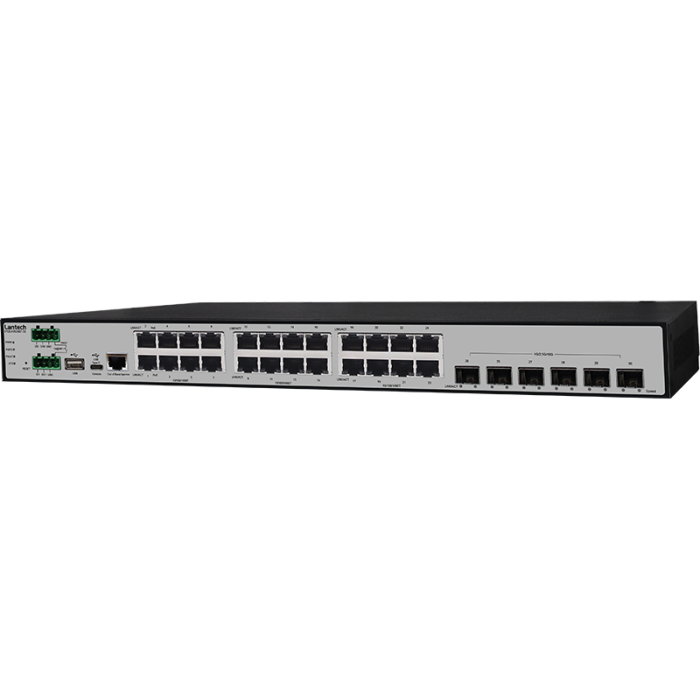

I(P)GS-H7624XF-TX 24GT + 6 10G SFP+ Managed Ethernet Switch

SKU: IxGS-H7624XF-TX-xx-2xxx-xx-x-OOB

24 GT + 6 10G SFP+ (w/24 PoE) Managed Ethernet Switch w/optional L3L/L3 & Cybersecurity

Key Features:

  • 24× GE RJ45 + 6× 10G SFP+
  • 20/24-port PoE and PoE++ options
  • OS5 L3/L2 managed platform
  • IEC 62443 cybersecurity option
  • OOB management and USB config
  • PTP v2 and MACsec options
  • Rackmount IP30 metal housing
  • 16.8–137.5VDC or 90–264VAC
Datasheet

Description

Product Overview

The Lantech I(P)GS-H7624XF-TX is a high-performance OS5 EN50155 managed Ethernet switch designed for railway, transport, industrial backbone and high-density PoE network applications. It provides 24 Gigabit RJ45 ports and 6 auto-sensing 1G/2.5G/5G/10G SFP+ fibre ports, delivering a total of 30 ports in a 1U rackmount platform. With PoE model options, optional Layer 3 Lite, Layer 3, cybersecurity, MACsec, PTP v2 and ETBN TTDP support, the I(P)GS-H7624XF-TX is suited to demanding onboard and infrastructure networks requiring high bandwidth, redundancy and secure management.

Key Features

24 GE and 6 10G SFP+ Ports

  • 24 x 10/100/1000T RJ45 ports

  • 6 x 1G/2.5G/5G/10G SFP+ sockets

  • Total of 30 ports for high-density network deployments

  • 168 Gbps switching fabric and 16K MAC address table

  • 10KB jumbo frame support

PoE Model Options

  • Available with 24 PoE af/at ports

  • Alternative model supports 16 PoE af/at ports plus 4 Type 4 PoE bt ports

  • PoE budget up to 720 W from a separate PoE power input

  • Supports Perpetual PoE and Fast PoE for critical connected devices

  • Advanced PoE management with detection, scheduling and per-port monitoring

OS5 Managed Switch Platform

  • Complete Layer 2 management feature set

  • Optional Layer 3 Lite and Layer 3 support

  • Supports dynamic routing, multicast routing and hardware-based NAT

  • Optional PTP v2, gPTP and MACsec support

  • Optional ETBN TTDP protocol for railway communication networks

Cybersecurity and Network Protection

  • Optional IEC 62443-4-2 cybersecurity model

  • IEC 62443-4-1 certified software development process

  • DDoS attack mitigation and Layer 2 threat protection

  • 802.1X port-based authentication

  • Dynamic ARP Inspection, IP Source Guard and Port Security support

Railway and Redundancy Features

  • EN50155 railway verification

  • EN50121-3-2 and EN50121-4 verification

  • EN 45545-1 and EN 45545-2 fire and smoke verification

  • Standardised ITU G.803 ring support

  • Dying Gasp message support before power loss

Management and Diagnostics

  • Web GUI and complete CLI support

  • RESTful API for centralised management

  • Auto topology drawing for easier deployment

  • Auto provisioning for firmware and configuration updates

  • USB Type-C console port and USB Type-A configuration port

  • Out-of-band RJ45 management port

Rugged Rackmount Design

  • IP30 metal enclosure

  • 1U rackmount design

  • Operating temperature from -40°C to 75°C on wide temperature models

  • Dual galvanically isolated DC 16.8 V to 137.5 V input models

  • Dual isolated AC 90 V to 264 V input models

  • 5% to 95% non-condensing operating humidity

Applications and Use Cases

The I(P)GS-H7624XF-TX is suitable for:

  • Railway and rolling stock Ethernet networks

  • Onboard PoE surveillance systems

  • Industrial fibre backbone networks

  • Transport infrastructure and control systems

  • High-density IP camera deployments

  • Factory automation and mission-critical networking

  • Secure Layer 2 and Layer 3 managed switching

Dimensions/Drawings




Download

Datasheet

More Information

Brand Lantech
Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3an 10Gbase-T
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ax Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3bt/at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 168Gbps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

24 10/100/1000T RJ-45 with auto MDI/MDI-X function
6 1G/2.5G/5G/10G Mini-GBIC: SFP+ sockets
Console: USB type C
USB type A slot for upload/download config file
Out-Of-Band connector: RJ45 *1
DI/DO and Relay: 2x 4 pin terminal blocks

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA

Optical Cable

1Gbps:
Multi-mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
2.5Gbps
Multi-mode: 0 to 300 m, 850 nm (50/125 μm);
Single mode: 0 to 2 km/ 15 km/ 40 km, 1310 nm (9/125 μm); 0 to 40 km/ 80 km/ 100km, 1550 nm (9/125 μm)
WDM 1Gbps:
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 2.5Gbps
Single mode: 0 to 5 km/ 20 km/ 40 km/ 60 km, 1310 /1550nm (9/125 μm); 0 to 80 km, 1490/1550 nm (9/125 μm)
10Gbps
Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm);
Single mode: 0 to 10 km/ 20 km, 1310 nm (9/125 μm); 0 to 40 km/ 80km/ 100 km, 1550 nm (9/125 μm)
WDM 10Gbps
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1270/1330 nm (9/125 μm); 0 to 80km, 1490/1550 nm (9/125 μm)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red)
R.M. indicator (Green)
100M/1G Mini-GBIC: Link/Active (Green); Speed (Orange)
2.5G/5G/10G Mini-GBIC: Link/Activity (Green); Speed (Orange)
100M/1G Copper port: Link/Active (Green); Speed (100M/1G: Green; 2.5G/5G/10G: Orange)
PoE: Link/Act (Green) (PoE model)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C~75°C / -40°F~167°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Galvanic isolated 16.8~137.5VDC (2DCI model)
AC 90~264VAC IEC320 socket (2AC model)

PoE Budget (PoE model)

Max 720W (from separate PoE power supply)
(50-57VDC input is recommended for 802.3at 30W applications)

PoE pin assignment (PoE model)

RJ-45 port # 1~#24 supports IEEE 802.3at/af End-point, Alternative A mode. (IPGS-H7624XF-TX-24)
RJ-45 port #1~$16 supports IEEE 802.3at/af End-point, Alternative A model. Port #17,19,21,23 support T4 IEEE 802.3bt/at/af 90W (IPGS-H7624XF-TX-20)
Positive (VCC+): RJ-45 pin 1,2.
Negative (VCC-): RJ-45 pin 3,6.

PoE Type (PoE model)

IEEE802.3af (Type 1, PoE)
IEEE802.3at (Type 2, PoE+)
IEEE 802.3bt (Type 3,4, PoE++)

Power Consumption

Max. 60W

Dimensions

Metal case. IP-30
440mm(W)x44mm(H)x325mm(D)

Weight

2.9kgs

Installation

Rackmount Design

EMI & EMS

FCC Part 15 Class A
EN61000-6-2
EN61000-6-4
CE EN55032 Class A
CE EN55024
CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3

Verifications

EN50155; EN50121-3-2/EN50121-4;
EN 45545-1, EN 45545-2** Fire & Smoke verification

MTBF

114,831 hrs. (standards: IEC 62380)

Ordering Information

P/N

Model name

Description

8361-0324

IPGS-H7624XF-TX-24-2DCI-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 24 PoE at/af Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C；w/Out-of-band

8361-032401

IGS-H7624XF-TX-2DCI-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply; IP30 rackmount design; -40°C to 75°C；w/Out-of-band

8361-032402

IGS-H7624XF-TX-2AC-EU-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C; EU plug；w/Out-of-band

8361-032403

IGS-H7624XF-TX-2AC-UK-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C; UK plug；w/Out-of-band

8361-032404

IGS-H7624XF-TX-2AC-US-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C; US plug；w/Out-of-band

8361-032405

IPGS-H7624XF-TX-24-2AC-EU-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 24 PoE at/af Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C; EU plug；w/Out-of-band

8361-032406

IPGS-H7624XF-TX-24-2AC-UK-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 24 PoE at/af Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C; UK plug；w/Out-of-band

8361-032407

IPGS-H7624XF-TX-24-2AC-US-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 24 PoE at/af Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C; US plug；w/Out-of-band

8361-032408

IPGS-H7624XF-TX-20-2DCI-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 16 PoE at/af + 4 T4 PoE IEEE 802.3bt Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C；w/Out-of-band

8361-032409

IPGS-H7624XF-TX-20-2AC-EU-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 16 PoE at/af + 4 T4 PoE IEEE 802.3bt Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C; EU plug；w/Out-of-band

8361-032411

IPGS-H7624XF-TX-20-2AC-UK-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 16 PoE at/af + 4 T4 PoE IEEE 802.3bt Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C; UK plug；w/Out-of-band

8361-032412

IPGS-H7624XF-TX-20-2AC-US-E-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 16 PoE at/af + 4 T4 PoE IEEE 802.3bt Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -40°C to 75°C; US plug；w/Out-of-band

8361-032413

IGS-H7624XF-TX-2DCI-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply; IP30 rackmount design; -20°C to 60°C；w/Out-of-band

8361-032414

IGS-H7624XF-TX-2AC-EU-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C; EU plug；w/Out-of-band

8361-032415

IGS-H7624XF-TX-2AC-UK-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C; UK plug；w/Out-of-band

8361-032416

IGS-H7624XF-TX-2AC-US-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C; US plug；w/Out-of-band

8361-0329

IPGS-H7624XF-TX-24-2DCI-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 24 PoE at/af Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C；w/Out-of-band

8361-032417

IPGS-H7624XF-TX-24-2AC-EU-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 24 PoE at/af Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C; EU plug；w/Out-of-band

8361-032418

IPGS-H7624XF-TX-24-2AC-UK-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 24 PoE at/af Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C; UK plug；w/Out-of-band

8361-032419

IPGS-H7624XF-TX-24-2AC-US-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 24 PoE at/af Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C; US plug；w/Out-of-band

8361-032421

IPGS-H7624XF-TX-20-2DCI-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 16 PoE at/af + 4 T4 PoE IEEE 802.3bt Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C；w/Out-of-band

8361-032422

IPGS-H7624XF-TX-20-2AC-EU-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 16 PoE at/af + 4 T4 PoE IEEE 802.3bt Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C; EU plug；w/Out-of-band

8361-032423

IPGS-H7624XF-TX-20-2AC-UK-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 16 PoE at/af + 4 T4 PoE IEEE 802.3bt Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C; UK plug；w/Out-of-band

8361-032424

IPGS-H7624XF-TX-20-2AC-US-OOB

24 10/100/1000T+ 6 1G/2.5G/5G/10G SFP+ with 16 PoE at/af + 4 T4 PoE IEEE 802.3bt Managed Ethernet Switch; Built-in 2x isolated AC 90~264VAC IEC320 power conversion w/ 1x 48VDC PoE power input; IP30 rackmount design; -20°C to 60°C; US plug；w/Out-of-band

OPTIONAL ACCESSORIES - Power cords (2AC models)

Description Part Number
EUROPE AC POWER CORDS P/N: 4106-00000014-001
USA AC POWER CORDS P/N: 4106-00000012-001
UK AC POWER CORDS P/N: 4106-00000015-001

OPTIONAL ACCESSORIES - Mini GBIC (SFP)

Model name Description Model name Description
8330-162D-V1 MINI GBIC 1000SX (LC/0.5km) Transceiver 8330-184D-V1 LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-163D-V1 MINI GBIC 1000SX2 (LC/2km) Transceiver 8330-185D-V1 LTSFP-1000BX-80KM Transceiver (WDM 1550)
8330-165D-V1 MINI GBIC 1000LX (LC/10km) Transceiver 8330-262D-V1 MINI GBIC 2.5G 850nm VCSEL (LC/0.3km) Transceiver
8340-0591D-V1 MINI GBIC 1000LHX (LC/40km) Transceiver 8330-263D-V1 MINI GBIC 2.5G 1310nm FP (LC/2km) Transceiver
8330-166D-V1 MINI GBIC 1000XD (LC/50km) Transceiver 8330-265D-V1 MINI GBIC 2.5G 1310nm DFB (LC/15km) Transceiver
8330-169D-V1 MINI GBIC 1000XD (LC/60km) Transceiver 8330-193D-V1 10G Base SFP+ SR, Multi-mode (LC/300m) Transceiver
8330-167D-V1 MINI GBIC 1000ZX (LC/80km) Transceiver 8330-194D-V1 10G Base SFP+ LR, Single-mode (LC/10km) Transceiver
8330-170D-V1 MINI GBIC 1000EZX (120km) Transceiver 8330-223D-V1 10G Base SFP+ LR, Single-mode (LC/1310nm/20km) DDM Transceiver
8330-168-V1 MINI GBIC 1000T (100m) Transceiver 8330-225D-V1 10G Base SFP+ LR , Single-mode (LC/1310nm /40km) DDM Transceiver
8330-188D-V1 LTSFP-1000BX-10KM Transceiver (WDM 1310) 8330-205D-V1 10G Base SFP+ LR , Single-mode (LC/1550nm/40km) DDM Transceiver
8330-189D-V1 LTSFP-1000BX-10KM Transceiver (WDM 1550) 8330-209D-V1 10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1270)
8330-186D-V1 LTSFP-1000BX-20KM Transceiver (WDM 1310) 8330-210D-V1 10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1330)
8330-187D-V1 LTSFP-1000BX-20KM Transceiver (WDM 1550) 8330-200D-V1 10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1270)
8330-180D-V1 LTSFP-1000BX-40KM Transceiver (WDM 1310) 8330-201D-V1 10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1330)
8330-182D-V1 LTSFP-1000BX-40KM Transceiver (WDM 1550) 8330-202D-V1 10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1270)
8330-181D-V1 LTSFP-1000BX-60KM Transceiver (WDM 1310) 8330-203D-V1 10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1330)
8330-183D-V1 LTSFP-1000BX-60KM Transceiver (WDM 1550) 8330-206-V1 10G/5G/2.5G/1000Base-T SFP, 3.3V,30m (10G) 50m (2.5G/5G) 100m (1G); -10~70°C
    All SFP ended with D are with Diagnostic function
Builder Banner

Need something specific?

We build to order.

We can customise any solutions according to your specifications. Click below to learn more
and contact us.

Learn more Speak to a specialist

Product

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Sign In
