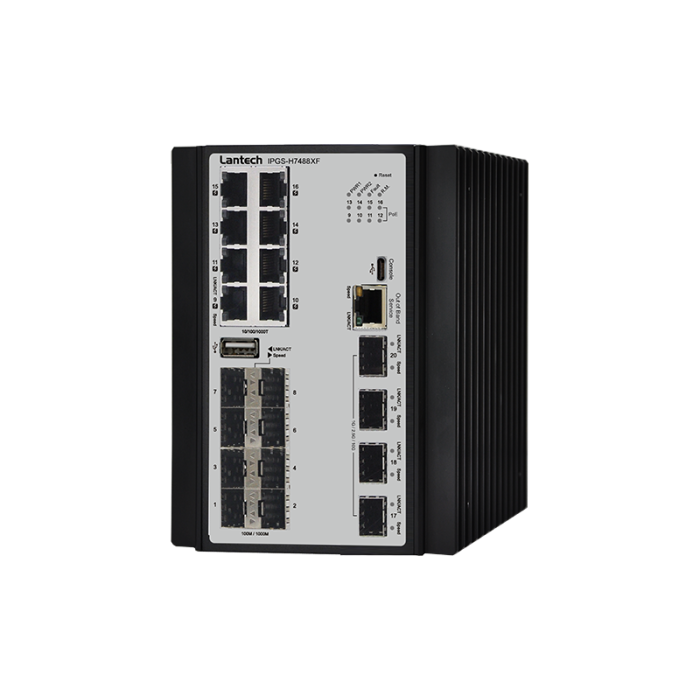

I(P)GS-H7488XF 8GE PoE + 8 SFP + 4 10G SFP+ Rail Managed Ethernet Switch

SKU: IxGS-H7488XF-x-xxVx-OOB

8 GE (PoE) + 8 100M/1G SFP + 4 10G SFP+ Industrial Managed Ethernet Switch; 24TVI/24V(I)/48V input models w/ optional dynamic routing, multicast routing, Cybersecurity, and hardware NAT

Key Features:

  • 8GE PoE + 8× SFP + 4× 10G SFP+
  • OS5 L3/L2 managed switch
  • 802.3af/at PoE, up to 30W per port
  • Dynamic routing, multicast and NAT options
  • IEC 62443 cybersecurity option
  • OOB management and USB config
  • PTP v2 and MACsec options
  • EN50155, -40°C to 75°C operation
Datasheet

Description

Product Overview

The Lantech I(P)GS-H7488XF is an industrial OS5 managed Ethernet switch designed for high performance fibre aggregation, transport networks, automation systems and surveillance applications. It provides 8 Gigabit RJ45 ports, 8 100M/1G SFP fibre ports and 4 auto sensing 1G/2.5G/10G SFP+ ports, with PoE model options available for powering connected IP devices. With advanced Layer 2 and Layer 3 support, optional cybersecurity, hardware NAT, dynamic routing, multicast routing and EN 50155 railway verification, the I(P)GS-H7488XF is suited to demanding industrial and transportation network environments.

Key Features

8 GE, 8 SFP and 4 10G SFP+ Ports

  • 8 x 10/100/1000T RJ45 ports

  • 8 x 100M/1G SFP fibre ports

  • 4 x 1G/2.5G/10G SFP+ auto-sensing sockets

  • Supports high-bandwidth fibre aggregation and uplink applications

  • 112 Gbps switching fabric and 16K MAC address table

PoE Model Options

  • PoE models available with 8 IEEE 802.3af/at ports

  • Provides up to 30 W per PoE port

  • PoE budget up to 80 W, 120 W or 480 W, depending on input model

  • Supports Fast PoE and Perpetual PoE for critical connected devices

  • Advanced PoE management with detection, scheduling and per-port monitoring

OS5 Managed Switch Platform

  • Advanced Layer 2 and Layer 3 management support

  • Supports IPv4 and IPv6 networking

  • Dynamic routing and multicast routing support

  • Hardware-based NAT support on optional configurations

  • Optional PTP, MACsec, Layer 3 Lite and Layer 3 software options

Network Protection and Cybersecurity

  • Optional IEC 62443-4-2 cybersecurity model

  • DDoS attack mitigation and Layer 2 threat protection

  • Supports 802.1X port-based authentication

  • Dynamic ARP Inspection, IP Source Guard and Port Security support

  • SNMPv3 security models for authentication, encryption and access control

Ring Protection and Reliability

  • Supports standardised ITU G.803 ring protection

  • Miss wiring avoidance and node failure protection

  • Loop protection helps prevent broadcast storms

  • Designed for resilient industrial and transport network architectures

Management and Diagnostics

  • Web GUI and complete CLI support

  • RESTful API for centralised network management

  • Auto topology drawing for easier deployment

  • USB port for configuration import, export and firmware upgrades

  • Out-of-band RJ45 management port for secure access

  • 2DI and 2DO for alarm, sensor and event integration

Rugged Industrial Design

  • IP30 metal enclosure

  • DIN rail and wall mount installation support

  • Operating temperature from -40°C to 75°C

  • Dual DC input options including 24TVI, 24VI and 48VI models

  • EN 50155, EN 50121 and EN 61373 shock and vibration verification

  • MTBF of 373,958 hours under IEC 62380 standards

Applications and Use Cases

The I(P)GS-H7488XF is suitable for:

  • Industrial fibre aggregation

  • Railway and transportation networks

  • IP surveillance and PoE device networks

  • Factory automation systems

  • Wireless backhaul applications

  • Semiconductor and infrastructure networks

  • High bandwidth SFP and SFP+ deployments

Dimensions/Drawings





Download

Datasheet

More Information

Brand Lantech
Specifications


Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 112 Gbps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function
Mini-GBIC: 8x 100M/1G SFP + 4 x 1G/2.5G/10G SFP+ auto-sensing cage with DDMI
RS-232 connector: USB type-C
USB type-A x 1
Power connector: 1 x 6-pole terminal block
DIDO: 1 x 6-pole terminal block
Out-Of-Band connector: RJ-45 type

Network Cable

100Base-TX: 2-pair STP Cat. 5/ 5E/ 6 cable; EIA/TIA-568 100-ohm (100m)
1000Base-T: 4-pair STP Cat5E/6 cable;
10GBaseT:4-pair STP Cat6/6A/7 cable

Optical Cable

1Gbps:
Multi-mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
2.5Gbps
Multi-mode: 0 to 300 m, 850 nm (50/125 μm);
Single mode: 0 to 2 km/ 15 km/ 40 km, 1310 nm (9/125 μm); 0 to 40 km/ 80 km/ 100km, 1550 nm (9/125 μm)
WDM 1Gbps:
Single-mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 2.5Gbps
Single-mode: 0 to 5 km/ 20 km/ 40 km/ 60 km, 1310 /1550nm (9/125 μm); 0 to 80 km, 1490/1550 nm (9/125 μm)
10Gbps
Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm);
Single mode: 0 to 10 km/ 20 km, 1310 nm (9/125 μm); 0 to 40 km/ 80km/ 100 km, 1550 nm (9/125 μm)
WDM 10Gbps
Single-mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1270/1330 nm (9/125 μm); 0 to 80km, 1490/1550 nm (9/125 μm)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green)
Ethernet port: Link/Activity (Green), Speed (Green); 10G (Amber)
PoE: Link/Act (Green, PoE model); Mini-GBIC: Link/Activity (Green)

DI/DO

2 Digital Input (DI):
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output (DO): Open collector to 40 VDC, 200mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C~75°C / -40°F~167°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Dual DC input, 16.8~56VDC (24TVI model)
44~56VDC(48V model)；
12~56VDC(24V/24VI model)

PoE Budget (PoE model)

24TVI model:80W
24V(I) model:120W
48V model:480W

PoE pin assignment (PoE model)

RJ-45 port # 1~#8 supports IEEE 802.3at/af End-point, Alternative A mode.
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6

Power Consumption

Max. 24.9W (full load w/o PoE)

Case Dimension

Metal case. IP-30,
110 (W) x 135 (D) x 152 (H) mm (PoE model)
88 (W) x 135 (D) x 152 (H) mm (Non-PoE model)

Weight

1400g

Installation

DIN Rail and Wall Mount** Design

EMI & EMS

EN 55035: 2017/ A11: 2020
EN 55032: 2015/ A11: 2020
FCC Part 15, Subpart B
ICES-003 Issue 7
IEC 61000-4-2: 2008
IEC 61000-4-3: 2020
IEC 61000-4-4: 2012
IEC 61000-4-5: 2014+AMD1: 2017 CSV
IEC 61000-4-6: 2023
IEC 61000-4-8: 2009
IEC 61000-6-2: 2016
IEC 61000-6-4: 2018
EN IEC 61000-6-2: 2019
EN IEC 61000-6-4: 2019
BS EN 55035: 2017+A11: 2020
BS EN 55032: 2015+A11: 2020

Verifications

EN 50155: 2021
EN 50121-4: 2016/ A1: 2019
EN 50121-3-2: 2016/ A1: 2019

Safety

EN IEC 62368-1

Stability Testing

EN 61373: 2010 (Shock and Vibration)

MTBF

373,958hrs (standards: IEC 62380)

Ordering Information

P/N

Model name

Description

8361-048

IPGS-H7488XF-8-24TVI-OOB

8 10/100/1000T PoE at/af up to 30W + 8 100M/1G SFP + 4 1G/2.5G/10G SFP+ OS5 EN50155 Managed Ethernet Switch; -40°C to 75°C; dual 16.8~56V input; w/Out-of-band; w/PoE & Ethernet galvanic isolation

8361-04801

IGS-H7488XF-24TVI-OOB

8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G/10G SFP+ OS5 EN50155 Managed Ethernet Switch; -40°C to 75°C; 16.8~56V input; w/Out-of-band; w/Ethernet galvanic isolation

8361-04802

IPGS-H7488XF-8-48VI-OOB

8 10/100/1000T PoE at/af up to 30W + 8 100M/1G SFP + 4 1G/2.5G/10G SFP+ OS5 EN50155 Managed Ethernet Switch; -40°C to 75°C; dual 44~56V input; w/Out-of-band; w/PoE & Ethernet galvanic isolation

8361-04803

IPGS-H7488XF-8-24VI-OOB

8 10/100/1000T PoE at/af up to 30W + 8 100M/1G SFP + 4 1G/2.5G/10G SFP+ OS5 EN50155 Managed Ethernet Switch; -40°C to 75°C; dual 12~56V input; w/Out-of-band; w/PoE & Ethernet galvanic isolation

8361-04804

IGS-H7488XF-24VI-OOB

8 10/100/1000T + 8 100M/1G SFP + 4 1G/2.5G/10G SFP+ OS5 EN50155 Managed Ethernet Switch; -40°C to 75°C; 12~56V input; w/Out-of-band; w/Ethernet galvanic isolation

OPTIONAL ACCESSORIES

Model name

Description



NDR-240 Series

240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)



Model name

Description

Model name

Description

8330-162D-V1

MINI GBIC 1000SX (LC/0.5km) Transceiver

8330-184D-V1

LTSFP-1000BX-80KM Transceiver (WDM 1490)

8330-163D-V1

MINI GBIC 1000SX2 (LC/2km) Transceiver

8330-185D-V1

LTSFP-1000BX-80KM Transceiver (WDM 1550)

8330-165D-V1

MINI GBIC 1000LX (LC/10km) Transceiver

8330-262D-V1

MINI GBIC 2.5G 850nm VCSEL (LC/0.3km) Transceiver

8340-0591D-V1

MINI GBIC 1000LHX (LC/40km) Transceiver

8330-263D-V1

MINI GBIC 2.5G 1310nm FP (LC/2km) Transceiver

8330-166D-V1

MINI GBIC 1000XD (LC/50km) Transceiver

8330-265D-V1

MINI GBIC 2.5G 1310nm DFB (LC/15km) Transceiver

8330-169D-V1

MINI GBIC 1000XD (LC/60km) Transceiver

8330-193D-V1

10G Base SFP+ SR, Multi-mode (LC/300m) Transceiver

8330-167D-V1

MINI GBIC 1000ZX (LC/80km) Transceiver

8330-194D-V1

10G Base SFP+ LR, Single-mode (LC/10km) Transceiver

8330-170D-V1

MINI GBIC 1000EZX (120km) Transceiver

8330-223D-V1

10G Base SFP+ LR, Single-mode (LC/1310nm/20km) DDM Transceiver

8330-168-V1

MINI GBIC 1000T (100m) Transceiver

8330-225D-V1

10G Base SFP+ LR , Single-mode (LC/1310nm /40km) DDM Transceiver

8330-188D-V1

LTSFP-1000BX-10KM Transceiver (WDM 1310)

8330-205D-V1

10G Base SFP+ LR , Single-mode (LC/1550nm/40km) DDM Transceiver

8330-189D-V1

LTSFP-1000BX-10KM Transceiver (WDM 1550)

8330-209D-V1

10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1270)

8330-186D-V1

LTSFP-1000BX-20KM Transceiver (WDM 1310)

8330-210D-V1

10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1330)

8330-187D-V1

LTSFP-1000BX-20KM Transceiver (WDM 1550)

8330-200D-V1

10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1270)

8330-180D-V1

LTSFP-1000BX-40KM Transceiver (WDM 1310)

8330-201D-V1

10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1330)

8330-182D-V1

LTSFP-1000BX-40KM Transceiver (WDM 1550)

8330-202D-V1

10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1270)

8330-181D-V1

LTSFP-1000BX-60KM Transceiver (WDM 1310)

8330-203D-V1

10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1330)

8330-183D-V1

LTSFP-1000BX-60KM Transceiver (WDM 1550)

8330-206-V1

10G/5G/2.5G/1000Base-T SFP, 3.3V,30m (10G) 50m (2.5G/5G) 100m (1G); -10~70°C
