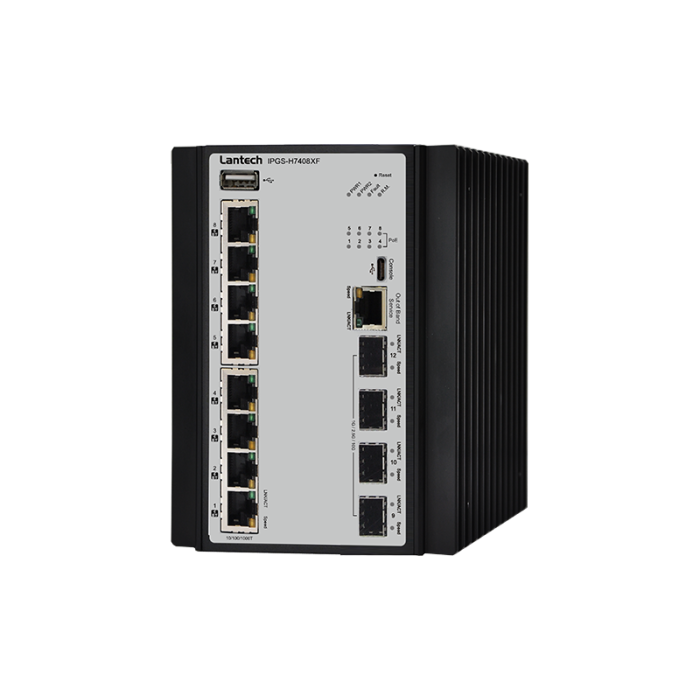

I(P)GS-H7408XF 8GE PoE + 410G SFP+ Rail Managed Ethernet Switch

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3 bt/at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 96 Gbps

Forwarding Rate

71.43Mpps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function
4 x 1G/2.5G/10G SFP+ auto-sensing cage with DDMI
RS-232 connector: USB type-C
USB type-A x 1
Power connector: 1 x 6-pole terminal block
DIDO: 1 x 6-pole terminal block
Out-Of-Band connector: RJ-45 type

Network Cable

100Base-TX: 2-pair STP Cat. 5/ 5E/ 6 cable; EIA/TIA-568 100-ohm (100m)
1000Base-T: 4-pair STP Cat5E/6 cable;
10GBaseT:4-pair STP Cat6/6A/7 cable

Optical Cable

1Gbps:
Multi-mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
2.5Gbps
Multi-mode: 0 to 300 m, 850 nm (50/125 μm);
Single mode: 0 to 2 km/ 15 km/ 40 km, 1310 nm (9/125 μm); 0 to 40 km/ 80 km/ 100km, 1550 nm (9/125 μm)
WDM 1Gbps:
Single-mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 2.5Gbps
Single-mode: 0 to 5 km/ 20 km/ 40 km/ 60 km, 1310 /1550nm (9/125 μm); 0 to 80 km, 1490/1550 nm (9/125 μm)
10Gbps
Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm);
Single mode: 0 to 10 km/ 20 km, 1310 nm (9/125 μm); 0 to 40 km/ 80km/ 100 km, 1550 nm (9/125 μm)
WDM 10Gbps
Single-mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1270/1330 nm (9/125 μm); 0 to 80km, 1490/1550 nm (9/125 μm)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green)
Ethernet port: Link/Activity (Green), Speed (Green); 10G (Amber)
PoE: Link/Act (Green, PoE model); Mini-GBIC: Link/Activity (Green)

DI/DO

2 Digital Input (DI):
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output (DO): Open collector to 40 VDC, 200mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C~75°C / -40°F~167°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Dual DC input, 16.8~56VDC (24TVI model)
44~56VDC(48VI model)；
12~56VDC(24VI model)

PoE Budget (PoE model)

24TVI model:80W
24VI model:120W
48VI model:480W

PoE pin assignment (PoE model)

RJ-45 port # 1~#8 supports IEEE 802.3at/af End-point, Alternative A mode. (-8 model)
RJ-45 port # 1~#4 supports IEEE 802.3at/af End-point, Alternative A mode;
RJ-45 port # 5~#6 supports IEEE 802.3bt/at/af End-point, Alternative A mode (-6 model)
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6

Power Consumption

Max. 37W (full load w/o PoE)

Case Dimension

Metal case. IP-30,
110 (W) x 135 (D) x 152 (H) mm (PoE model)
88 (W) x 135 (D) x 152 (H) mm (Non-PoE model)

Weight

1400g

Installation

DIN Rail and Wall Mount** Design

EMI & EMS

EN 55035: 2017/ A11: 2020
EN 55032: 2015/ A11: 2020
FCC Part 15, Subpart B
ICES-003 Issue 7
IEC 61000-4-2: 2008
IEC 61000-4-3: 2020
IEC 61000-4-4: 2012
IEC 61000-4-5: 2014+AMD1: 2017 CSV
IEC 61000-4-6: 2023
IEC 61000-4-8: 2009
IEC 61000-6-2: 2016
IEC 61000-6-4: 2018
EN IEC 61000-6-2: 2019
EN IEC 61000-6-4: 2019
BS EN 55035: 2017+A11: 2020
BS EN 55032: 2015+A11: 2020

Verifications

EN 50155: 2021
EN 50121-4: 2016/ A1: 2019
EN 50121-3-2: 2016/ A1: 2019

Safety

EN IEC 62368-1

Stability Testing

EN 61373: 2010 (Shock and Vibration)

MTBF

371,174hrs (standards: IEC 62380)
