I(P)GS-6416XSFP 16GE + 4 10G SFP+ Managed PoE Switch

SKU: IxGS-6416XSFP-xx-xxxx-x

16 10/100/1000T (PoE at/af) + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; 24VI/24TVI/48V input models

Key Features:

  • 16GE RJ45 + 4× 10G SFP+
  • Optional 16-port PoE at/af
  • OS3 L2+ managed platform
  • Optional L3 upgrade support
  • USB configuration import/export
  • Enhanced environmental monitoring
  • DIN rail and wall mount design
  • 9–36VDC, 16.8–56VDC or 44–56VDC
Datasheet

Description

Product Overview

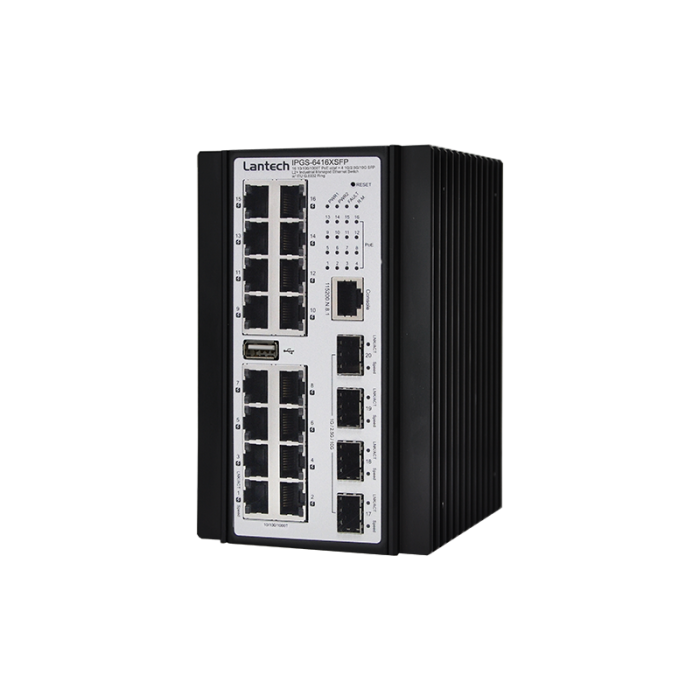

The Lantech I(P)GS-6416XSFP is a high-performance L2+ industrial managed Ethernet switch designed for network aggregation, transportation, automation, surveillance and industrial backbone applications. It provides 16 Gigabit RJ45 ports and 4 auto-sensing 1G/2.5G/10G SFP+ ports, with PoE model options available for powering connected IP devices. With OS3 management, advanced Layer 2 features, optional Layer 3 expansion, enhanced cybersecurity, environmental monitoring and wide temperature model options, the I(P)GS-6416XSFP is suited to demanding industrial and transport network deployments.

Key Features

16 GE and 4 10G SFP+ Ports

  • 16 x 10/100/1000T RJ45 ports

  • 4 x 1G/2.5G/10G SFP+ auto-sensing sockets

  • 112 Gbps switching fabric and 83.33 Mpps forwarding rate

  • 16K MAC address table and 10KB jumbo frame support

  • Suitable for high-bandwidth aggregation and uplink applications

PoE Model Options

  • PoE models support 16 IEEE 802.3af/at ports

  • Provides up to 30 W per PoE port

  • PoE budget up to 240 W on 48 V models

  • PoE budget up to 80 W on 24VI and 24TVI models

  • Advanced PoE management with detection, scheduling and per-port monitoring

OS3 Managed Switch Platform

  • Complete Layer 2 management feature set

  • Optional Layer 3 Lite and Layer 3 expansion support

  • Supports VLAN, QoS, LACP, LLDP, MSTP, RSTP and IGMP

  • Designed for scalable industrial network aggregation

  • Suitable for managed fibre uplink and Ethernet access deployments

Network Protection and Cybersecurity

  • Enhanced cybersecurity through the OS3 platform

  • IEC 62443-4-1 certified software development process

  • DDoS attack protection for network security

  • 802.1X user authentication and RADIUS support

  • Miss wiring avoidance, node failure protection and loop protection

Management and Diagnostics

  • User-friendly Web GUI and complete CLI support

  • Auto topology drawing and topology demo functions

  • Enhanced environmental monitoring for input voltage, current, ambient temperature and total power load

  • Editable configuration file for easier switch deployment

  • USB port for configuration import, export and firmware upgrades

Industrial I/O and Alarm Support

  • 2 digital inputs and 2 digital outputs

  • DI support for sensor and event integration

  • DO support for external alarm triggering

  • Fault LED and relay alarm support

  • Factory default button for quick reset

Flexible Power Input Models

  • PoE 48 V models support dual 44 V to 56 VDC input

  • PoE 24VI models support dual 9 V to 36 VDC input

  • PoE 24TVI models support dual 16.8 V to 56 VDC input

  • Non-PoE models support 24VI and 24TVI input options

  • Ethernet galvanic isolation, with PoE galvanic isolation on selected PoE models

Rugged Industrial Design

  • IP30 metal enclosure

  • DIN rail and optional wall mount installation

  • Standard temperature models from -20°C to 60°C

  • Wide temperature models from -40°C to 75°C

  • E24 marking on 24VI models for vehicle applications

  • EN50155, EN50121 and EN61373 verification on 24TVI models

Applications and Use Cases

The I(P)GS-6416XSFP is suitable for:

  • Industrial Ethernet aggregation

  • Transportation and vehicle networks

  • Railway onboard and trackside systems

  • IP surveillance and PoE camera networks

  • Factory automation and process control

  • Wireless backhaul applications

  • Semiconductor factory networks

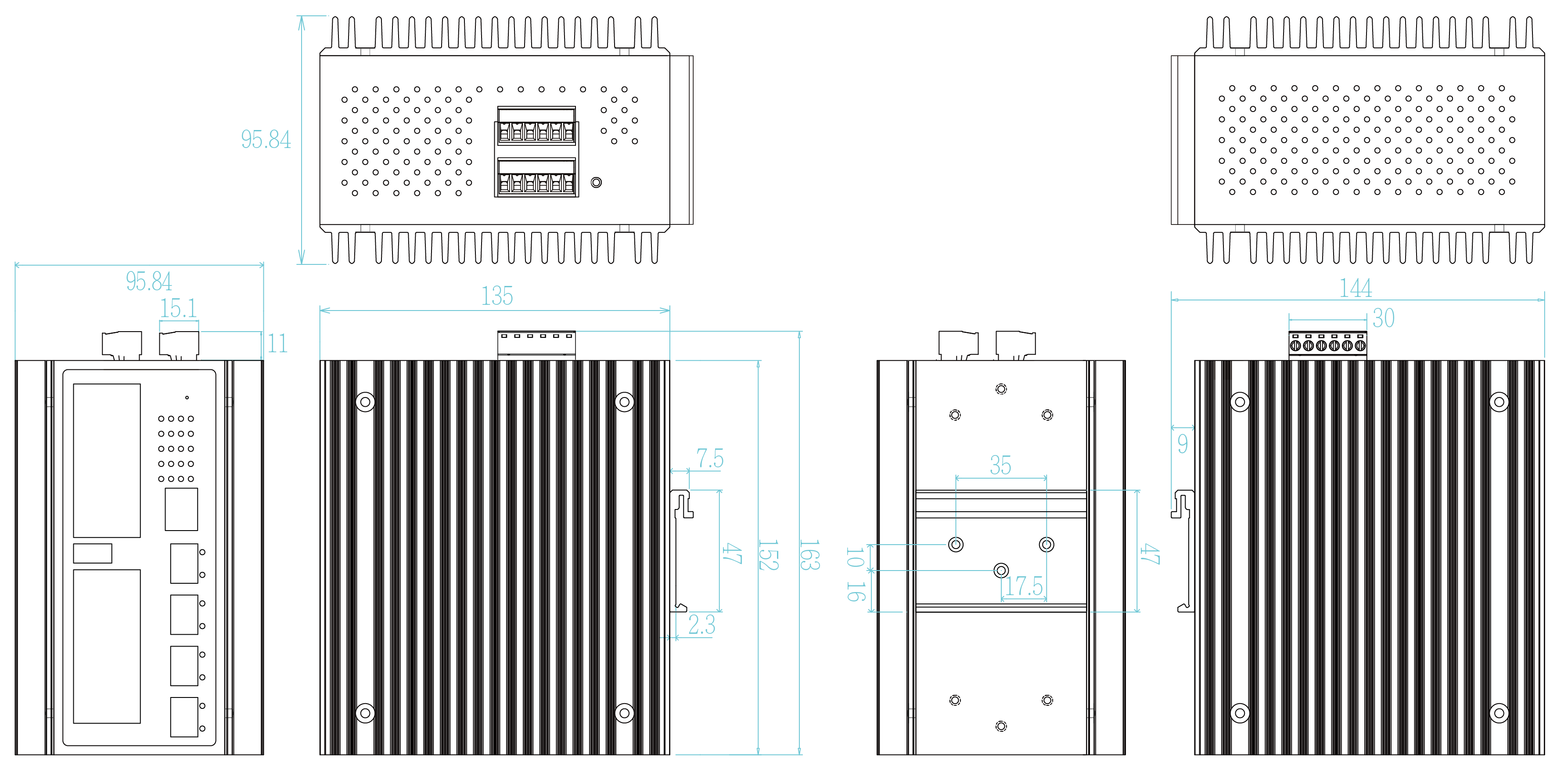

Dimensions/Drawings





Download

Datasheet

More Information

Brand Lantech
Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 112Gbps

Forwarding Rate

83.33Mpps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100/1000T: 16 x ports RJ-45 with Auto MDI/MDI-X function
Mini-GBIC: 4 x 1G/2.5G/10G SFP+ auto-sensing socket with DDMI
RS-232 connector: RJ-45 type
USB x 1
Power connector: 1 x 6-pole terminal block
DIDO: 1 x 6-pole terminal block

Network Cable

100Base-TX: 2-pair STP Cat. 5/ 5E/ 6 cable; EIA/TIA-568 100-ohm (100m)
1000Base-T: 4-pair STP Cat5E/6 cable;
10GBaseT:4-pair STP Cat6/6A/7 cable

Optical Cable

1Gbps:
Multi-mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
2.5Gbps
Multi-mode: 0 to 300 m, 850 nm (50/125 μm);
Single mode: 0 to 2 km/ 15 km/ 40 km, 1310 nm (9/125 μm); 0 to 40 km/ 80 km/ 100km, 1550 nm (9/125 μm)
WDM 1Gbps:
Single-mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 2.5Gbps
Single-mode: 0 to 5 km/ 20 km/ 40 km/ 60 km, 1310 /1550nm (9/125 μm); 0 to 80 km, 1490/1550 nm (9/125 μm)
10Gbps
Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm);
Single mode: 0 to 10 km/ 20 km, 1310 nm (9/125 μm); 0 to 40 km/ 80km/ 100 km, 1550 nm (9/125 μm)
WDM 10Gbps
Single-mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1270/1330 nm (9/125 μm); 0 to 80km, 1490/1550 nm (9/125 μm)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green)
Ethernet port: Link/Activity (Green), Speed (Green); 10G (Amber)
PoE: Link/Act (Green, PoE model); Mini-GBIC: Link/Activity (Green)

DI/DO

2 Digital Input (DI):
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output (DO): Open collector to 40 VDC, 200mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

IPGS-6416XSFP
Dual DC input, 44~56VDC with Ethernet galvanic isolation (48V model);
Dual DC input, 9~36VDC with PoE and Ethernet galvanic isolation (24VI model)
Dual DC input, 16.8~56VDC with PoE and Ethernet galvanic isolation (24TVI model)
IGS-6416XSFP
Dual DC input, 9~36VDC with Ethernet galvanic isolation (24VI model);
Dual DC input, 16.8~56VDC with Ethernet galvanic isolation (24TVI model)

PoE Budget (PoE model)

240W @48VDC (48V model)
(50-56VDC input is recommended for 802.3at 30W applications)
80W @24VDC (24VI/24TVI model)
Higher PoE budget can be applied upon request. **

PoE pin assignment (PoE model)

RJ-45 port # 1~#16 support IEEE 802.3at/af End-point, Alternative A mode.
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6

Power Consumption

Max. 27W (full load w/o PoE)

Case Dimension

Metal case. IP-30,
IPGS-6416XSFP
95.84 (W) x 135 (D) x 152 (H) mm
IGS-6416XSFP
74 (W) x 135 (D) x 152 (H) mm

Weight

1400g (IGS-6416XSFP, 24VI/24TVI model)
1950g (IPGS-6416XSFP, 24VI/24TVI model)
1800g (IPGS-6416XSFP, 48V model)

Installation

DIN Rail and Wall Mount** Design

EMI & EMS

EN 55011:2016
FCC Class A,
CE EN55035:2017/A11:2020,
CE EN55032:2015/A11:2020,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8,
CE EN61000-6-2

Safety

EN IEC 62368-1

Stability Testing

IEC60068-2-31 (Free fall),
IEC60068-2-27 (Shock),
IEC60068-2-6 (Vibration)

Railway compliance

EN50155:2017, EN50121-3-2:2015,
EN50121-4:2015, EN61373:2010 (24TVI model)

MTBF

586,082.5 Hrs.
(IEC 62380 standards)

Vehicle certificate

E24 marking (24VI model)

Ordering Information

P/N

Model name

Description

8350-864

IPGS-6416XSFP-16-48V

16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 44~56VDC input w/Ethernet galvanic isolation; PoE budget 240W

8350-865

IPGS-6416XSFP-16-48V-E

16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 44~56VDC input w/Ethernet galvanic isolation; PoE budget 240W

8350-86622

IPGS-6416XSFP-16-24VI

16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 9~36VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (E-Marking Certified)

8350-86634

IPGS-6416XSFP-16-24VI-E

16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 9~36VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (E-Marking Certified)

8350-86623

IPGS-6416XSFP-16-24TVI

16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (EN50155 Compliance)

8350-86633

IPGS-6416XSFP-16-24TVI-E

16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (EN50155 Compliance)

8350-86812

IGS-6416XSFP-24VI

16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 9~36VDC input w/ Ethernet galvanic isolation (E-Marking Certified)

8350-86912

IGS-6416XSFP-24VI-E

16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 9~36VDC input w/ Ethernet galvanic isolation (E-Marking Certified)

8350-86811

IGS-6416XSFP-24TVI

16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input w/ Ethernet galvanic isolation (EN50155 Compliance)

8350-86911

IGS-6416XSFP-24TVI-E

16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input w/ Ethernet galvanic isolation (EN50155 Compliance)



OPTIONAL ACCESSORIES - DIN Rail Power for 802.3at Applications

Model name Description
NDR-240 Series 240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)



OPTIONAL ACCESSORIES - Mini GBIC (SFP)

Model name

Description

Model name

Description

8330-162D-V1

MINI GBIC 1000SX (LC/0.5km) Transceiver

8330-184D-V1

LTSFP-1000BX-80KM Transceiver (WDM 1490)

8330-163D-V1

MINI GBIC 1000SX2 (LC/2km) Transceiver

8330-185D-V1

LTSFP-1000BX-80KM Transceiver (WDM 1550)

8330-165D-V1

MINI GBIC 1000LX (LC/10km) Transceiver

8330-262D-V1

MINI GBIC 2.5G 850nm VCSEL (LC/0.3km) Transceiver

8340-0591D-V1

MINI GBIC 1000LHX (LC/40km) Transceiver

8330-263D-V1

MINI GBIC 2.5G 1310nm FP (LC/2km) Transceiver

8330-166D-V1

MINI GBIC 1000XD (LC/50km) Transceiver

8330-265D-V1

MINI GBIC 2.5G 1310nm DFB (LC/15km) Transceiver

8330-169D-V1

MINI GBIC 1000XD (LC/60km) Transceiver

8330-193D-V1

10G Base SFP+ SR, Multi-mode (LC/300m) Transceiver

8330-167D-V1

MINI GBIC 1000ZX (LC/80km) Transceiver

8330-194D-V1

10G Base SFP+ LR, Single-mode (LC/10km) Transceiver

8330-170D-V1

MINI GBIC 1000EZX (120km) Transceiver

8330-223D-V1

10G Base SFP+ LR, Single-mode (LC/1310nm/20km) DDM Transceiver

8330-168-V1

MINI GBIC 1000T (100m) Transceiver

8330-225D-V1

10G Base SFP+ LR , Single-mode (LC/1310nm /40km) DDM Transceiver

8330-188D-V1

LTSFP-1000BX-10KM Transceiver (WDM 1310)

8330-205D-V1

10G Base SFP+ LR , Single-mode (LC/1550nm/40km) DDM Transceiver

8330-189D-V1

LTSFP-1000BX-10KM Transceiver (WDM 1550)

8330-209D-V1

10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1270)

8330-186D-V1

LTSFP-1000BX-20KM Transceiver (WDM 1310)

8330-210D-V1

10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1330)

8330-187D-V1

LTSFP-1000BX-20KM Transceiver (WDM 1550)

8330-200D-V1

10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1270)

8330-180D-V1

LTSFP-1000BX-40KM Transceiver (WDM 1310)

8330-201D-V1

10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1330)

8330-182D-V1

LTSFP-1000BX-40KM Transceiver (WDM 1550)

8330-202D-V1

10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1270)

8330-181D-V1

LTSFP-1000BX-60KM Transceiver (WDM 1310)

8330-203D-V1

10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1330)

8330-183D-V1

LTSFP-1000BX-60KM Transceiver (WDM 1550)

8330-206-V1

10G/5G/2.5G/1000Base-T SFP, 3.3V,30m (10G) 50m (2.5G/5G) 100m (1G); -10~70°C


All SFP ended with D are with Diagnostic function


Builder Banner

Need something specific?

We build to order.

We can customise any solutions according to your specifications. Click below to learn more
and contact us.

Learn more Speak to a specialist

Product

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Sign In
