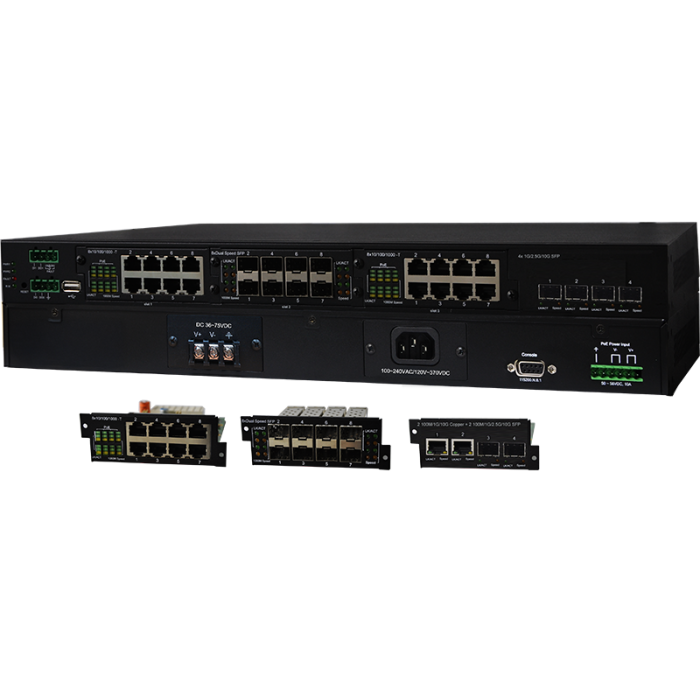

I(P)GS-6300-2P Modular 28 Port Managed PoE Switch
4 Modular-Slots w/ 4 x 10G uplink L2+ Industrial Managed Ethernet Switch; 2DCI/2HV/2AC input models
Key Features:
- Up to 28 total ports
- 4× 10G uplink support
- Optional 24-port PoE at/af
- OS3 L2+ managed platform
- Optional L3 upgrade support
- USB configuration import/export
- Rackmount IP30 metal housing
- AC, DC or HV input models
Description
Product Overview
The Lantech I(P)GS-6300-2P is a modular L2+ industrial managed Ethernet switch designed for network aggregation, automation, transportation, surveillance and industrial backbone applications. It supports up to 24/26 Gigabit ports with 4 x 10G uplink ports, providing a total of up to 28 ports through four factory-installed modular slots. With PoE model options, OS3 management, advanced Layer 2 features, optional Layer 3 expansion and flexible isolated power input models, the I(P)GS-6300-2P is suited to demanding industrial networks that require scalability, redundancy and long-term reliability.
Key Features
Modular 10G Uplink Platform
-
Four modular slots for flexible port configuration
-
Supports up to 24/26 Gigabit ports plus 4 x 10G uplink ports
-
Slot options include Gigabit RJ45, Gigabit PoE and SFP fibre modules
-
10G uplink module options include 4 x 10G SFP or 2 x 10G copper plus 2 x 10G SFP+
-
128 Gbps switching fabric and 16K MAC address table
PoE Model Options
-
PoE models support up to 24 IEEE 802.3af/at ports
-
Provides up to 30 W per PoE port
-
PoE budget up to 720 W from a separate PoE power input
-
Advanced PoE management with PD detection and scheduling
-
Per port PoE enable, disable, voltage, current, wattage and temperature monitoring
OS3 Managed Switch Platform
-
Complete Layer 2 management features
-
Optional Layer 3 Lite and Layer 3 expansion support
-
Supports VLAN, QoS, MSTP, RSTP, LACP and LLDP
-
Designed for scalable industrial network aggregation
-
10KB jumbo frame support for high data throughput
Network Protection and Cybersecurity
-
IEC 62443-4-1 certified software development process
-
DDoS attack protection through the OS3 platform
-
802.1X access control and RADIUS authentication support
-
Miss wiring avoidance and loop protection
-
Node failure protection for resilient ring networks
Management and Diagnostics
-
User-friendly Web GUI and complete CLI support
-
Auto topology drawing and topology demo functions
-
Enhanced environmental monitoring for input voltage, current, ambient temperature and total power load
-
Editable configuration file for easier deployment across multiple switches
-
USB port for configuration import, export and firmware upgrades
Industrial I/O and Alarm Support
-
2 digital inputs and 2 digital outputs
-
DI support for sensor and event integration
-
DO support for external alarm triggering
-
Relay contact alarm function for power failure or port disconnection events
-
Factory default button for quick reset
Flexible Power Input Models
-
2DCI models with dual isolated DC 16.8 V to 137.5 V input
-
2HV models with dual isolated AC/DC 100 V to 240 VAC or 120 V to 370 VDC input
-
2AC models with dual isolated AC 100 V to 240 VAC input
-
Dedicated 48 VDC PoE power input on PoE models
-
Designed to improve network reliability through redundant power options
Rugged Rackmount Design
-
IP30 metal enclosure
-
1U rackmount design
-
Standard temperature models from -20°C to 60°C
-
Wide temperature models from -40°C to 75°C
-
2000 V EFT and surge protection
-
6000 V ESD contact protection
-
IEC 60068 vibration and shock testing
Applications and Use Cases
The I(P)GS-6300-2P is suitable for:
-
Industrial network aggregation
-
Transportation Ethernet networks
-
IP surveillance and PoE camera systems
-
Factory automation and process control
-
Wireless backhaul applications
-
Semiconductor factory networks
-
Fibre and 10G uplink backbone deployments

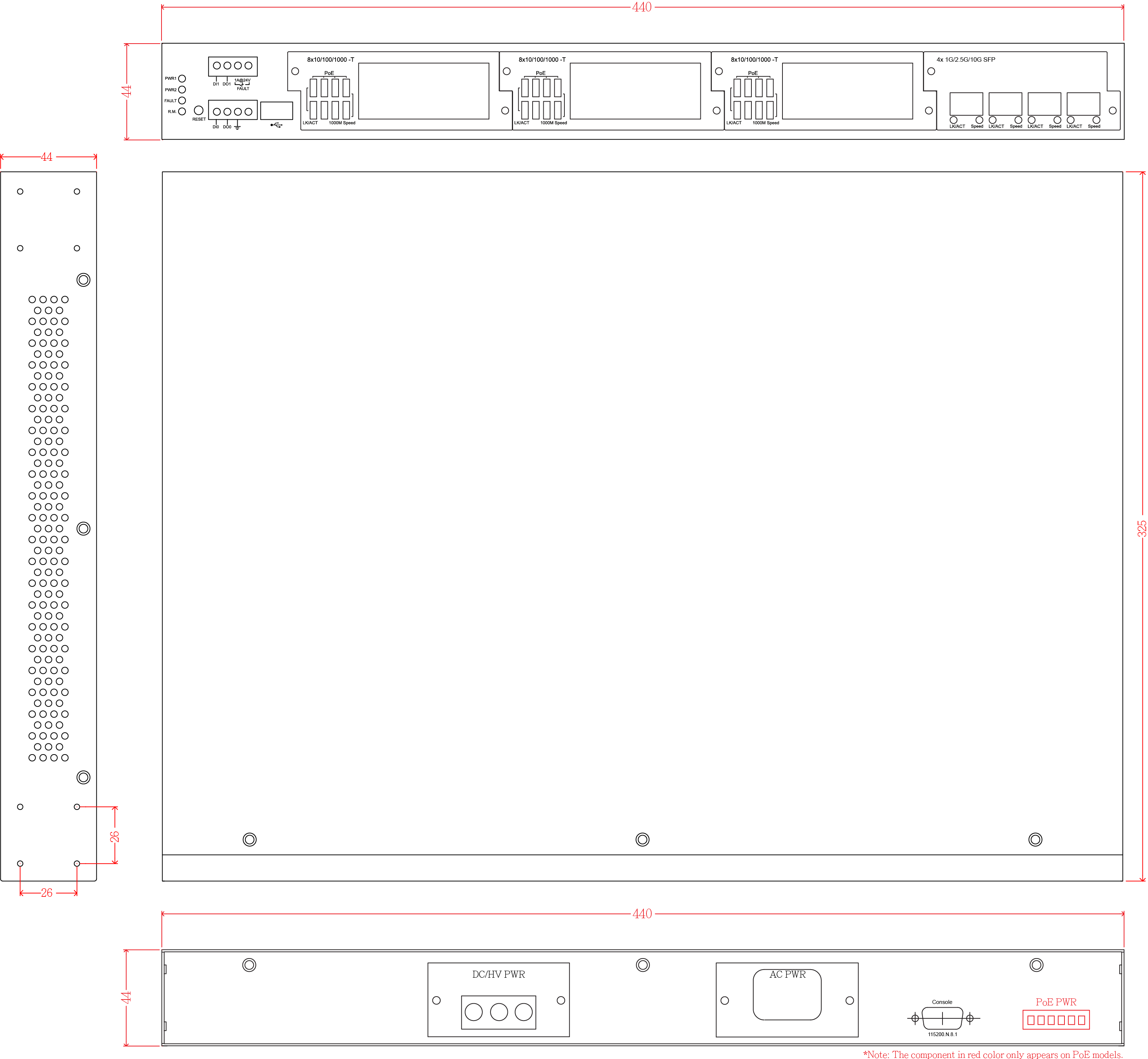

Dimensions/Drawings
Download
More Information
| Brand | Lantech | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
Modules for Slot 1-3
Note: the modules will be factory pre-installed.
| P/N | Model name | Description | 8380-123 | 8x GIGA T Module | 8x 10/100/1000T Module; -40°C to 75°C | 8380-124 | 8x GIGA T-PoE at/af Module | 8x 10/100/1000T PoE at/af Module; -40°C to 75°C | 8380-125 | 8x SFP Module | 8x Dual Speed SFP module for 100M SFP or Gigabit SFP; -40°C to 75°C |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8380-123 | 8x GIGA T Module | 8x 10/100/1000T Module; -40°C to 75°C | |||||||||
| 8380-124 | 8x GIGA T-PoE at/af Module | 8x 10/100/1000T PoE at/af Module; -40°C to 75°C | |||||||||
| 8380-125 | 8x SFP Module | 8x Dual Speed SFP module for 100M SFP or Gigabit SFP; -40°C to 75°C |
Modules for Slot 4
Note: the modules will be factory pre-installed.
| 8380-126 | 4x 10G SFP Module | 4x 1G/2.5G/10G SFP Module for slot 4; -40°C to 75°C |
| 8380-127 | 2 100M/1G/10G Copper + 2 100M/1G/2.5G/10G SFP+ Module | 2x 100M/1G/10G Copper + 2 100M/1G/2.5G/10G SFP+ Module for slot 4 ; -40°C to 75°C |
OPTIONAL ACCESSORIES - DIN Rail Power for PoE
| Model name | Description |
|---|---|
| NDR-480 Series | 480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
| NDR-240 Series | 240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
| NDR-120 Series | 120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to the derating curve on NDR-120 Series datasheet) |
| NDR-75 Series | 75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to the derating curve on NDR-120 Series datasheet) |
OPTIONAL ACCESSORIES - Mini GBIC (SFP)
