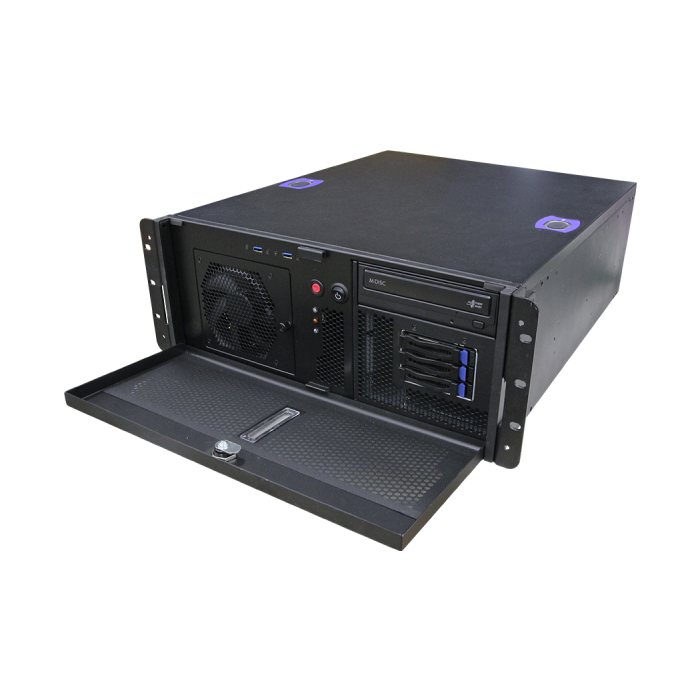

HPS-SIEU4A 4U AMD EPYC Rackmount Workstation
Single 4th Gen AMD EPYC 8004, 1300W, 5 x RJ45, IPMI 2.0 4U workstation.
Key Features:
- 19-inch 4U chassis
- Up to 1.5TB DDR5 RDIMM
- 7 x PCIe Gen5 expansion slots
- 5 x RJ45 including dual 10GbE
- IPMI 2.0 with AST2600 BMC
Description
Product Overview
The Avalue HPS-SIEU4A is a 19-inch 4U rackmount workstation built around a single 4th Generation AMD EPYC 8004 processor. It combines up to 1.5TB of DDR5 RDIMM memory, seven PCIe Gen5 expansion slots, three front-accessible 2.5-inch drive bays and IPMI 2.0 remote management for high-performance industrial computing, edge processing and server workloads.
Key Features
AMD EPYC Processing
- AMD SP6 socket for 4th Generation AMD EPYC processors
- Maximum processor TDP of 225W
- AMI UEFI BIOS and TPM 2.0 onboard
Memory and Storage
- 6 x DDR5 4800/4400MHz RDIMM slots, up to 1.5TB
- 2 x M.2 M-Key PCIe 5.0 x4 NVMe/SATA slots
- 3 x front-accessible 2.5-inch storage bays
PCIe Gen5 Expansion
- 3 x PCIe Gen5 x16 slots
- 4 x PCIe Gen5 x8 slots
- Seven expansion positions for accelerator, storage and network cards
Networking and Management
- Dedicated IPMI management port
- 1GbE, 2.5GbE and dual 10GbE LAN ports
- IPMI 2.0 with AST2600 BMC controller
4U Industrial Platform
- 430 x 174.8 x 528mm chassis
- 1300W PS2 ATX power supply
- 0°C to 35°C operating temperature
Download
More Information
| Brand | Avalue Technology Inc | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
HPS-SIEU4AD-A1R
L6 19-inch 4U rackmount with HPM-SIEUAA, 1300W PSU, 1 x 5.25-inch and 3 x 2.5-inch bays
