HPS-ERSD4B 4U Dual Intel Xeon Workstation
Dual 4th/5th Gen Intel Xeon, liquid cooling and seven PCIe Gen5 x16 slots.
Key Features:
- Dual 4th/5th Gen Intel Xeon
- Up to 3TB DDR5 RDIMM
- 7 x PCIe Gen5 x16 slots
- 1-to-1 CPU liquid cooling
- 5 x RJ45 including dual 10GbE
Description
Product Overview

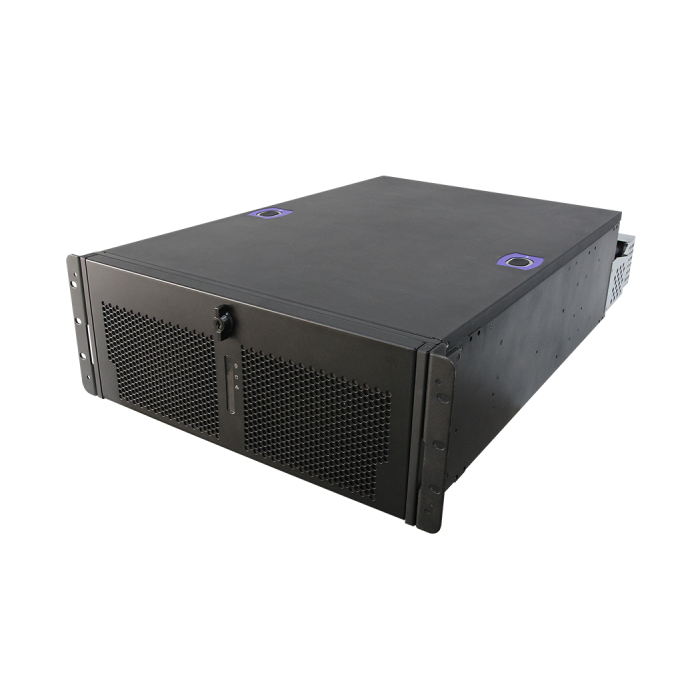

The Avalue HPS-ERSD4B is a liquid-cooled 19-inch 4U workstation for demanding high-performance computing deployments. Dual 4th or 5th Generation Intel Xeon Scalable processors, up to 3TB DDR5 memory and seven PCIe Gen5 x16 slots provide a dense platform for accelerator-heavy industrial, AI and server applications.
Key Features
Dual Intel Xeon Platform
- Dual LGA4677 sockets for 4th/5th Gen Intel Xeon Scalable processors
- Maximum TDP of 270W per processor
- Intel C741 chipset and TPM 2.0 onboard
High-Capacity DDR5 Memory
- 12 x DDR5 5600MHz RDIMM slots
- Memory capacity up to 3TB
- Designed for data-intensive HPC workloads
Seven PCIe Gen5 x16 Slots
- Seven full-bandwidth PCIe Gen5 x16 expansion slots
- Supports multiple accelerator, network and storage cards
- Slots distributed across both processors
Liquid Cooling and Power
- 1-to-1 liquid cooling module with two CPU cold plates
- 1300W PS2 ATX PSU as standard
- Optional 1600W CRPS configuration
Networking and Remote Management
- 5 x RJ45 including 1GbE, 2.5GbE and dual 10GbE
- IPMI 2.0 with AST2600 BMC
- Dedicated management interface
Download
More Information
| Brand | Avalue Technology Inc | ||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
HPS-ERSD4BD-A1R
L6 19-inch 4U rackmount with HPM-ERSDEA, 1300W PSU and 1-to-1 cooling module
HPS-ERSD4BU-A1R
L6 19-inch 4U rackmount with HPM-ERSDEA, 1600W redundant PSU and 1-to-1 cooling module
