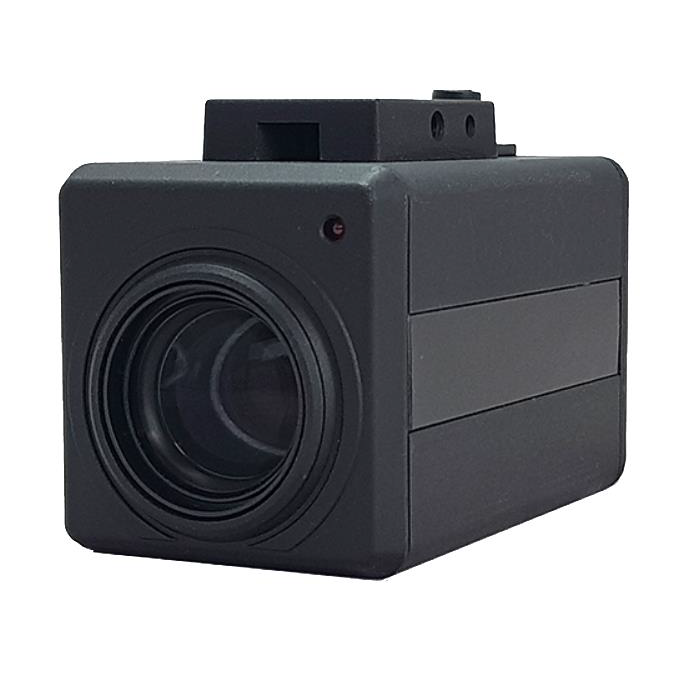

Shop GPCZ-108A3GN 2MP IP Front Zoom Camera at Tekdis LLC

SKU: GPCZ-108A3GN

IP x10 Optical Zoom Supports H.265, RTSP, OnVIF/ 2MP, PoE, Up to 30 frames @1920x 1080, Day & Night function (ICR)

Key Features:

H.265, H.254, Motion JPEG
Up to 30 frames @1920x 1080
X10 Optical Zoom (5.1 ~ 52mm) & x 32 Digital Zoom Function
Day & Night function (ICR)
Real-time True WDR
Digital Noise Reduction (2D+3D)
High Light Compensation
PoE
Support OnVIFprotocol
Support RTSP
Easy operation
Smart Zoom function
LED on the front for power & recording status

Datasheet

Description

The IP Front Zoom Camera is primarily used in a forward-facing position in conjunction with the in-car video system to record police inspection and vehicle tracking procedures. Smart zoom and crystal clear HD video provide maximum coverage without losing any details. Large user-friendly buttons make it simple to use.

Key Features:

H.265, H.254, Motion JPEG
Up to 30 frames @1920x 1080
X10 Optical Zoom (5.1 ~ 52mm) & x 32 Digital Zoom Function
Day & Night function (ICR)
Real-time True WDR
Digital Noise Reduction (2D+3D)
High Light Compensation
PoE
Support OnVIFprotocol
Support RTSP
Easy operation
Smart Zoom function
LED on the front for power & recording status

Download

CGI Commands

Datasheet

More Information

Brand	GPI Korea
Specifications	Image Sensor: 1/3" Panasonic CMOS Sensor Total Pixels 1,956(H) x 1,266(V), 2.48M Pixels Active Pixels: 1,944(H) x 1,092(V), 2.12M Pixels Scanning system: Progressive Scan Sync. System: Internal Min.illumination Colour: 0.5 lux, BW: 0.1lux Colour DSS: 0.125 lux, BW DSS: 0.025 lux S/N Ratio: more than 50dB (AGC off) Lens Lens type 10x Day & Night Zoom Lens ZoomRatio Optical x10, Digital x32 Zoom FocalLength f = 5.1mm ~ 51mm ApertureRatio F1.6 (wide) ~ F1.8 (tele) Function Focus Focus / Distance /Zoom Speed/Lens Refresh / E.Zoom Exposure Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N WhiteBalance Auto / One Push / Manual / Indoor / Outdoor Image HLC / DNR / Mirror / Sharpness / ACE / Defog / Freeze / Gamma Intelligence Privacy / Motion / DIS Network Video compression H.265, H.264,Motion JPEG Resolution 6Level:1920x1080,1280x720,704x480,640X352,320x176,160x96 Frame rate Primary up to 30fps @ 1920X1080 / 30fps@1280x1024 / 30fps @1280x720 Video Streaming H265,MotionJPEGorH.264TripleStreaming(Simultaneously) Independently Controllable framerate and bandwidth Time Stamp Supported ( Date/Time Only) in primary stream LAN interface 10/100BaseTEthernetautosensing IEEE802.11a/b/g/n Built-in Motion detections Upto4zones Motion Sensitivity: 0~100:100 is hypersensitive Privacy zone Up to 8 zones Supported protocols HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP& etc General Power Input PoE OperatingTemperature -30°~65°C, Humidity: 20~80% RH (non-condensing) Weight 400g

Brand

GPI Korea

Specifications

Image Sensor: 1/3" Panasonic CMOS Sensor
Total Pixels 1,956(H) x 1,266(V), 2.48M Pixels
Active Pixels: 1,944(H) x 1,092(V), 2.12M Pixels
Scanning system: Progressive Scan
Sync. System: Internal
Min.illumination
- Colour: 0.5 lux, BW: 0.1lux
- Colour DSS: 0.125 lux, BW DSS: 0.025 lux
S/N Ratio: more than 50dB (AGC off)
Lens
- Lens type
  - 10x Day & Night Zoom Lens
- ZoomRatio
  - Optical x10, Digital x32 Zoom
- FocalLength
  - f = 5.1mm ~ 51mm
- ApertureRatio
  - F1.6 (wide) ~ F1.8 (tele)
Function
- Focus
  - Focus / Distance /Zoom Speed/Lens Refresh / E.Zoom
- Exposure
  - Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N
- WhiteBalance
  - Auto / One Push / Manual / Indoor / Outdoor
- Image
  - HLC / DNR / Mirror / Sharpness / ACE / Defog / Freeze / Gamma
- Intelligence
  - Privacy / Motion / DIS
Network
- Video compression
  - H.265, H.264,Motion JPEG
- Resolution
  - 6Level:1920x1080,1280x720,704x480,640X352,320x176,160x96
- Frame rate
  - Primary up to 30fps @ 1920X1080 / 30fps@1280x1024 / 30fps @1280x720
- Video Streaming
  - H265,MotionJPEGorH.264TripleStreaming(Simultaneously)
  - Independently Controllable framerate and bandwidth
- Time Stamp
  - Supported ( Date/Time Only) in primary stream
- LAN interface
  - 10/100BaseTEthernetautosensing
  - IEEE802.11a/b/g/n
- Built-in Motion detections
  - Upto4zones
  - Motion Sensitivity: 0~100:100 is hypersensitive
- Privacy zone
  - Up to 8 zones
- Supported protocols
  - HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP& etc
General
- Power Input
  - PoE
- OperatingTemperature
  - -30°~65°C, Humidity: 20~80% RH (non-condensing)
- Weight
  - 400g
