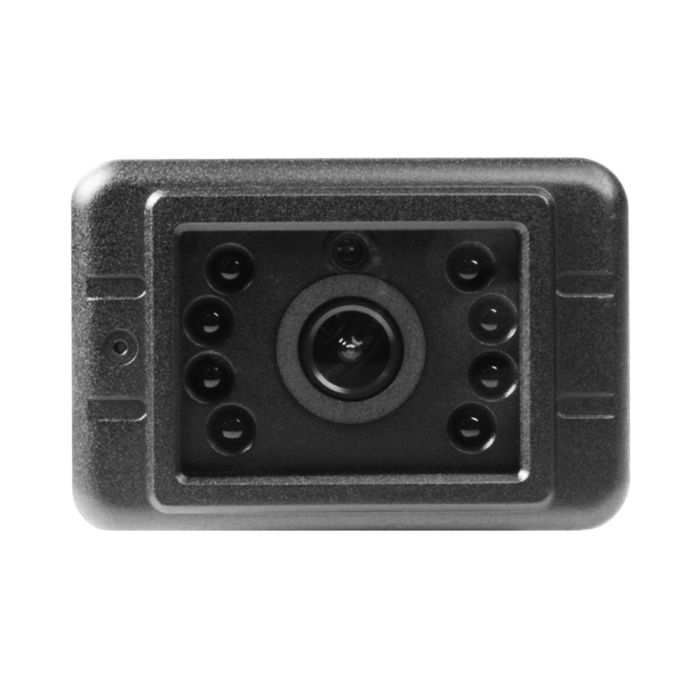

GPCR-675A5GN 2MP IP Rear Cabin Camera
View larger image
GPCR-675A5GN 2MP IP Rear Cabin Camera
Quadruple Video Stream / 2MP / Built-In MIC / IP67
Key Features:
1/2.8" 2MP Sony CMOS sensor 2.8mm Fixed Lens Quadruple Streaming Max. 60fps @2MP (1920x1080) 2MP IP Cabin Camera Support PoE IP 67 rated Built-in MIC 8PCS of 850nm IR LED Various Backlight modes: WDR, BLC, HLC ONVIF Profile S Support RTSP
Description
The 2MP IP Rear Cabin Camera is designed primarily for use in the middle or rear cabin area, working in tandem with the in-car video system to record video and audio of occupants. Despite being lightweight and compact, it boasts a capacity to deliver up to 60FPS@2MP colour or black-and-white video, ensuring maximum coverage without compromising on detail. Additionally, it finds applications in heavy machinery, public transportation, and commercial fleet vehicles.
Downloads
M4029-26 Camera Web Setting User Manual
* You have to Login or Register to download this file
More Information
Brand
GPI Korea
Specifications
CAMERA
Lens
2.8mm (Viewing Angle 134.5°(D) x61.5°(V) x 113.8°(H))
Image Sensor
Diagonal 6.46 mm (Type 1 / 2.8”) CMOS active pixel type solid-state image sensor
Number of Effective Pixels
2.07MP effective pixels
Min. Illumination
Color Mode: 0.01 Lux
Scanning Mode
Progressive Scan
IR LED
8PCS, 850nm
NETWORK
Video Compression
H.265, H.264, Motion JPEG
Video Resolution
60 FPS(2M-16:9) : 1920x1080, 1280x1024, 1280x720, 704x480, 640x480, 320x240
Frame rate
Primary up to 60fps @ 1920x1080
Video Streaming
Motion JPEG and H.264/265 Triple Streaming (Simultaneously)
Additional JPEG streaming (total quadruple streaming)
Independently Controllable frame rate and bandwidth
Time Stamp
Supported (Date/Time Only) in primary stream
Image setting
Compression levels: 6 level Low Compression, Highest, High, Normal, Low, Lowest
Color: color, black & white
LAN interface
10/100BaseT Ethernet auto-sensing
Built-in Motion detections
Up to 4 zones
Motion Sensitivity : 0 ~ 100: 100 is hypersensitive
Simultaneous clients
Live-cast for up to 16 clients
Web browsing
Video access from a Web browser
Developer support
Provides HTTP CGI API, ActiveX control development kit
Supported protocols
HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP& etc
OPERATION ENVIRONMENTS
Operating Temperature
-20℃~ + 70℃
Power
48V PoE
IP Rate
IP67
Power Consumption
2.1W
Dimension
80mm (W)x 70mm(D) x 54mm(H)
