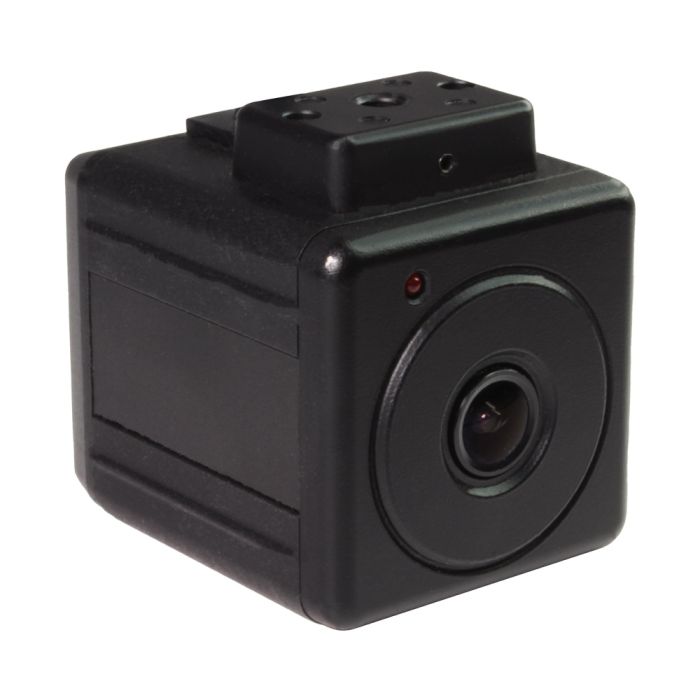

GPCF-675A1TD 5MP In Cabin POE Vehicle Camera with MIC
View larger image
GPCF-675A1TD 5MP In Cabin POE Vehicle Camera with MIC
5MP PoE IP Front Facing Camera with built-in mic
Description
The GPCF-675A1TD is a PoE powered IP camera that operates within a wide temperature range of -20℃~ + 70℃. This camera has a microphone built-in and runs at up to 30fps @ 2592x1944.
This IP Front Camera is typically utilised in a forward-facing position with the in-car video system to record the process of police inspection and vehicle tracking. These devices are lightweight and tiny but offer crystal clear HD video with no loss of detail and maximum coverage.
Features
1/2.8” 5MP CMOS sensor
2.8mm fixed lens - other options avail see Downloads
Up to 30fps @ 2592x1944
Supports RTP/RTSP
PoE
Lightweight and Compact
Operating Temperature -20℃~ + 70℃
Live-cast for up to 16 clients
More Information
Brand
GPI Korea
Specifications
Camera Lens
2.8mm (Viewing Angle 134.5°(D) x61.5°(V) x 113.8°(H))
Image Sensor
Diagonal 6.52 mm (Type 1 / 2.8”) CMOS active pixel type solid-state image sensor with a square pixel array
Number of Effective Pixels
SOC
Min. Illumination
Color Mode: 0.1 Lux
Scanning Mode
Progressive Scan
Network Video Compression
H.265, H.264, Motion JPEG
Video Resolution
30 FPS(5M-16:19) : 2592x1944, 1920x1080, 1280x1024, 1280x720, 704x480, 640x480, 320x240
Frame rate
Primary up to 30fps @ 2592x1944
Video Streaming
Motion JPEG and H.264/265 Triple Streaming (Simultaneously)
Time Stamp
Supported ( Date/Time Only) in primary stream
Image setting
Compression levels: 6 level Low Compression, Highest, High, Normal, Low, Lowest
LAN interface
10/100BaseT Ethernet auto-sensing
Built-in Motion detections
Up to 4 zones
Simultaneous clients
Live-cast for up to 16 clients
Web browsing
Video access from a Web browser
Developer support
Provides HTTP CGI API, ActiveX control development kit
Supported protocols
HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP & etc
Operation
Environments
Operating Temperature
-20℃~ + 70℃
Power
PoE
Power Consumption
2.1W
