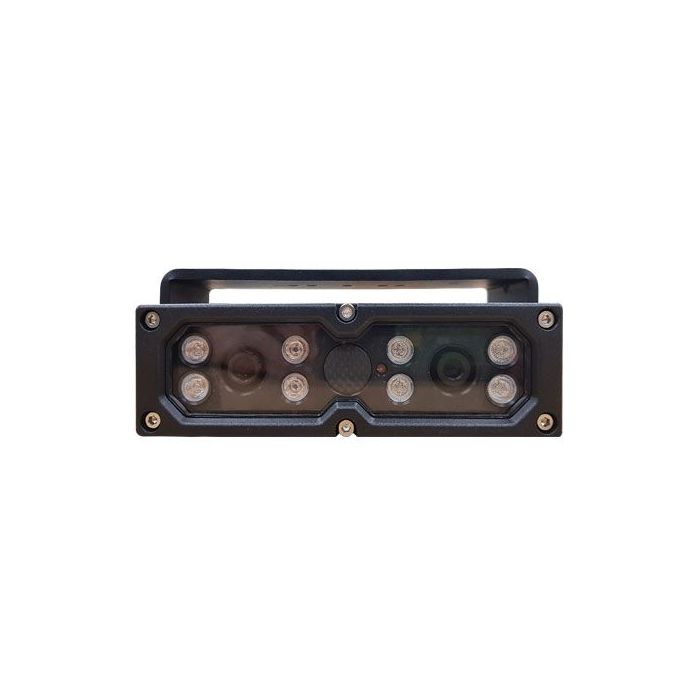

GPAL-D3G2R 3MP Global + 2MP Rolling Dual IP Camera

Product Overview

The GPI Korea GPAL-D3G2R Series is a rugged dual-sensor IP camera designed for mobile license plate recognition, law enforcement and parking enforcement applications. It combines a 3.2MP monochrome global shutter sensor for high-speed license plate capture with a separate 2MP colour rolling shutter camera for scene overview. With integrated 855 nm infrared illumination, onboard AI processing, quadruple video streaming, PoE+ and an IP68 nitrogen-filled enclosure, the GPAL-D3G2R Series is designed for reliable LPR operation on police vehicles, repossession vehicles and other mobile surveillance platforms.

Key Features

Dual LPR and Overview Cameras

• 1/3.1 inch Sony IMX900 3.2MP global shutter CMOS sensor for monochrome LPR capture

• 1/2.8 inch Sony IMX307 2MP rolling shutter CMOS sensor for colour overview imaging

• Independent LPR and overview imaging within a single rugged housing

• Designed to capture licence plates while maintaining a wider colour view of the surrounding scene

High Speed Image Capture

• LPR camera supports up to 60 FPS at 1920 × 1440

• Colour overview camera supports up to 60 FPS at 1920 × 1080

• Global shutter technology helps capture licence plates without distortion at high vehicle speeds

• Individual shutter speed and AEW settings for day and night modes

Flexible Lens Options

• LPR camera lens options include 6 mm, 8 mm, 12 mm and 16 mm

• Overview camera lens options include 4 mm, 6 mm, 8 mm and 12 mm

• Multiple field of view options support different capture distances and installation requirements

• Product variants include GPAL-0604D3G2R, GPAL-0806D3G2R, GPAL-1208D3G2R and GPAL-1612D3G2R

Integrated IR Illumination

• 8 x 855 nm high-power infrared LEDs

• Supports improved licence plate visibility in low light and night conditions

• Designed for mobile LPR applications operating across changing lighting environments

• Day and night modes include Auto, Colour, B&W and External control

Built-In AI Processing

• Integrated 1.2 TOPS NPU

• Supports object detection including humans, vehicles and bicycles

• Face detection support

• Enables intelligent video processing directly within the camera

Video Streaming and Image Control

• Quadruple video streaming

• Supports H.265, H.264, MJPEG, and JPEG compression

• 8 privacy masking zones

• Motion detection across up to 4 areas

• Adjustable hue, saturation, brightness and contrast

• Automatic and manual white balance

Network and Security

• 10/100 Base-T auto-sensing Ethernet

• ONVIF Profile S support for system interoperability

• Supports HTTP, HTTPS, RTP/RTSP, TCP/IP IPv4/IPv6, UDP, FTP, SNMP, DHCP, NTP and other network protocols

• IP filtering and encrypted authentication support

• PoE+ simplifies installation by carrying power and network data over a single connection

Rugged Mobile Design

• IP68-rated enclosure

• Nitrogen-filled housing for additional environmental protection

• Operating temperature from -20°C to 70°C

• 0% to 80% operating humidity, non-condensing

• M12 A-Code 8-pin male connector

• Optional magnetic mounting bracket

Applications and Use Cases

The GPAL-D3G2R Series is suitable for:

• Police vehicle LPR systems

• Mobile licence plate recognition

• Parking enforcement vehicles

• Repossession vehicles

• Law enforcement surveillance

• Vehicle identification and monitoring

• Mobile roadside enforcement systems



Dimensions Drawings
