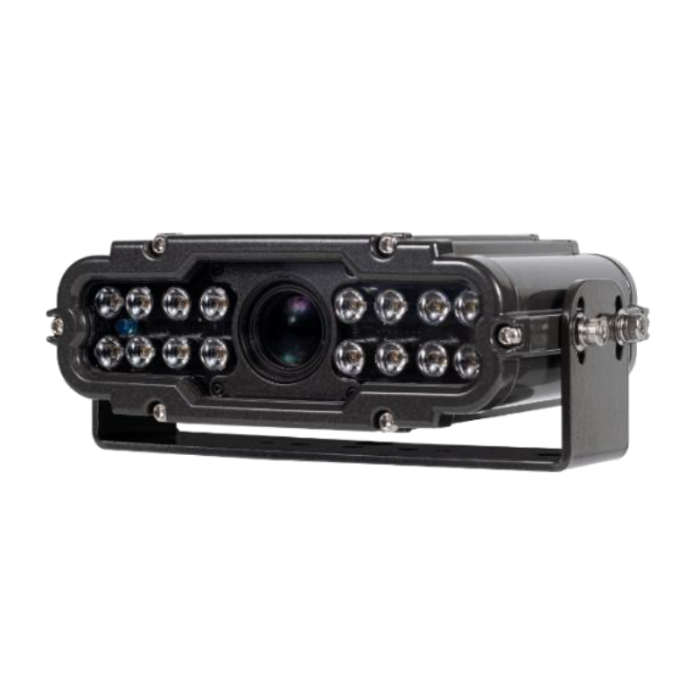

GPAL-0313M3G 3MP Motorized Global Shutter LPR AI Camera

SKU: GPAL-0313M3G


3MP Global Shutter 2.7~13.5mm Motorised Lens IP LPR Camera

Key Features:

  • 1/3.1” 3.2MP Global Shutter CMOS
  • 2.7mm~13.5mm Motorised Auto-Focus IR correction Lens
  • Max. 60FPS@3M (1920x1440),60FPS@2M (1920x1080)• 1.2TOPs NPU Built-In
  • Individual shutter speed and AEW setting for
  • Day mode and Night mode
  • Quadruple Streaming (H.265, H.264, M-JPEG, JPEG)
  • Night Colour level adjustment (B/W & 5 steps)
  • Shutter limit (Min./Max.) setting
  • OnVIF(Profile S) standard
  • IP68 Grade Waterproof, Nitrogen-filled In
  • M12 A-Code 8PIN Male Connector
Datasheet

Description

Law enforcement, parking and other authorities can save time and resources by quickly reviewing and closing investigations with accuracy and flexibility with the AI-driven recognition software.

The global shutter captures the highest quality images without distortion.

GPAL-0313M3G is an Outdoor IR All-in-one Motorised Camera which is equipped with a 3MP Global Shutter CMOS image Sensor. With the highest sensitivity sensor, it is especially superior in low-light conditions. As it supports simultaneous H.265, H.264 and MJPEG Video Compression, less network bandwidth and storage spaceare  required.

It also delivers a high-quality video image at 60 fps @ 3MP (1920x1440) in progressive mode.



Download

Datasheet

More Information

Brand GPI Korea
Specifications

CAMERA

  • SoC: 64bit Quad Core RISC CPU (Developed & Manufactured in S.Korea)

  • Image Sensor: 3.2MP 1/3.1” Global Shutter CMOS

  • Lens: 2.7mm ~ 13.5mm Motorized Auto-Focus Lens

  • Number of Effective Pixels: 2064(H) x 1554(V) approx. 3.18 M pixels

  • Streaming: Quadruple Streaming (H.265, H.264, M-JPEG, JPEG)

  • Resolution:

    • 1920x1440

    • 1920x1080

    • 1280x1024

    • 1280x720

    • 720x480

    • 704x480

    • 640x480

    • 640x352

    • 320x240

  • Max. Frame Rate: 60fps @ 1920x1440

  • Bit Rate Control: VBR, CBR (H.264/H.265, 32K~16Mbps), CVBR

  • Shutter Speed: Auto, Manual, Flicker (1/30 ~ 1/30000)

  • Frequency Control: 60Hz or 50Hz

  • Privacy Masking: 8 privacy zones

  • Motion Detection: Up to 4 Zones, Motion Sensitivity

  • Day & Night: TDN (Auto, Color, B&W, External)

  • White Balance: Auto, Preset, Manual

  • Video Analytics:

    • Intrusion detection

    • Line Crossing

    • Object counting

    • Object tracking

    • Tampering

    • General Detection

    • Abnormal Detection

  • AI Detection: Humans, Vehicles, Bicycles, Face Detection

  • Image Adjustment: Sharpness, Gamma, Contrast, D-WDR, Defog

NETWORK

  • LAN Interface: 10/100BaseT Ethernet auto-sensing

  • Simultaneous Clients: Live-cast for up to 16 clients

  • Web Browsing: Multi Web Browsers, VLC

  • Developer Support: Provides CGI API for RTSP

  • ONVIF: Profile S, T

  • Protocols: HTTP, RTP/RTSP (Uni/Multicast), TCP/IP (v4/v6), UDP, FTP, Telnet, HTTPS,
    RARP, PPPoE, SNMP, CHAP, DHCP, NTP, SMTP client, uPnP, etc.

MECHANICAL

  • Case: Aluminium

  • Operating Temperature: -20℃ ~ +70℃

  • Ingress Protection: IP68, Nitrogen Filled

  • Power: IEEE 802.3af, PoE, 48VDC (Max 57VDC)

  • Power Consumption: Up to 11W

  • Dimensions / Weight: 166mm (W) x 103.9mm (D) x 52mm (H) / approx. 1.2Kg

Ordering Information

GPAL-0313M3G
3MP Global Shutter 2.7~13.5mm Motorised Lens IP LPR Camera
