GPAF-028F4KR 4K 8.4MP AI IP Front-Facing Vehicle Camera

Product Overview

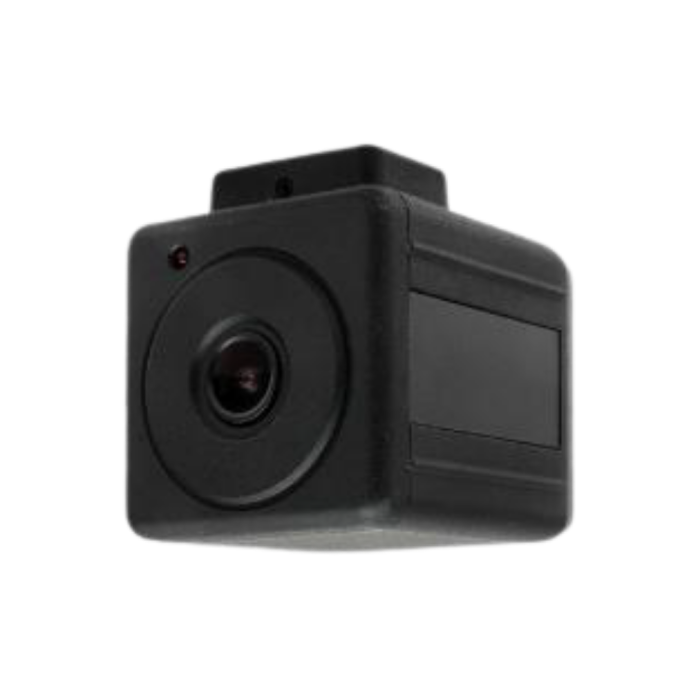

The GPI Korea GPAF-028F4KR is a compact 4K IP front-facing camera designed for vehicle video systems, public transportation, commercial fleets and first responder applications. With an 8.4MP Sony IMX678 CMOS sensor, a 2.8 mm fixed lens, and an integrated 1.2 TOPS NPU, it delivers up to 30 FPS at 3840 × 2160 resolution while supporting onboard object detection and video analytics. With PoE power, quadruple video streaming, and wide dynamic image enhancement, the GPAF-028F4KR is designed for reliable in-vehicle monitoring and high-quality video capture.

Key Features

8.4MP 4K Imaging

• 1/1.8 inch Sony IMX678 rolling shutter CMOS sensor

• 8.4 million effective pixels

• Maximum resolution of 3840 × 2160

• Up to 30 FPS at 8MP resolution

• Supports colour and black-and-white video operation

Wide-angle 2.8 mm Lens

• 2.8 mm fixed lens

• 134.1° diagonal field of view

• 109.9° horizontal field of view

• 56.7° vertical field of view

• Designed to capture a wide view of vehicle interiors and surrounding areas

Integrated AI Processing

• Built-in 1.2 TOPS NPU

• Object detection for humans, vehicles and bicycles

• Face detection support

• Intrusion detection and line crossing analytics

• Object counting and object tracking

• Tampering, general and abnormal detection functions

Advanced Image Processing

• Individual shutter speed settings for day and night modes

• Auto, colour, black and white and external day/night modes

• WDR, BLC and HLC backlight control

• Digital WDR support

• Defog image enhancement

• Shutter speeds from 1/30 to 1/30000 second

Flexible Video Streaming

• Quadruple simultaneous video streaming

• H.265 and H.264 video compression

• Motion JPEG and JPEG support

• Independent frame rate and bandwidth control

• Supports resolutions from 4K down to 320 × 240

• Primary stream date and time stamping

Network Connectivity

• 10/100Base-T auto-sensing Ethernet

• Standard 48 V PoE power input

• ONVIF Profile S and Profile T support

• HTTP and HTTPS support

• RTP/RTSP unicast and multicast streaming

• IPv4 and IPv6 networking

• DHCP, NTP, FTP, SMTP client and other network protocol support

Browser and Developer Support

• Video access through supported web browsers

• Supports Chrome and Edge

• HTTP CGI API available for system integration

• Supports up to 16 concurrent users

• IP filtering and management whitelist functionality

Compact Design

• Compact 51 × 60 × 60 mm enclosure

• Power consumption of approximately 4.8 W

• Operating temperature from -20°C to 70°C

• Designed for lightweight vehicle-mounted installations

• Suitable for integration with in-car video systems

Applications and Use Cases

The GPAF-028F4KR is suitable for:

• Police vehicle in-car video systems

• First responder vehicles

• School buses

• Public transportation

• Commercial fleets

• Trucks

• Driver and occupant monitoring

• Vehicle video recording systems



Dimensions/Drawings
