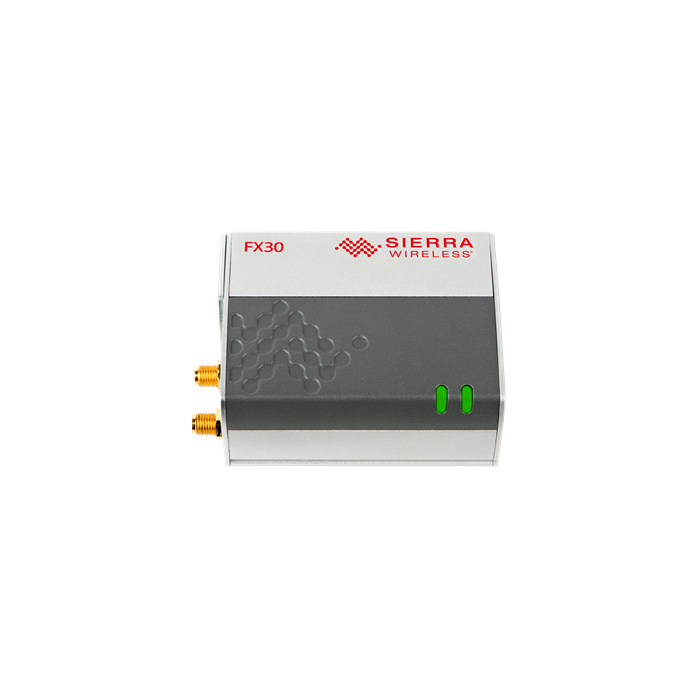

FX30 LTE-M Global

SKU: FX30 LTE-M Global

The FX30 LTE M is the industry’s smallest, most rugged programmable 3G/4G LTE cellular gateway. Providing an integrated, secure embedded application environment, tightly integrated with the cloud, scalable and global deployments of IoT applications for any connected machine or infrastructure.

Description

Highly programmable: secure Linux-based embedded programming.

Small & Rugged: meets harsh industrial environmental requirements.

Global & Scalable: global 4G/3G/2G market with a single product.

Extensible: Comprehensive built-in interfaces to connect easily to any system.

Managed: Free unlimited firmware-over-the-air (FOTA) (https://www.sierrawireless.com/products-and-solutions/embedded-solutions/fota).

Accelerate time to market: AirVantage IoT application (https://www.sierrawireless.com/products-and-solutions/sims-connectivity-and-cloud-services/iot-cloud-platform).

Download

More Information

Specifications

INTERFACES
Ethernet FX30 only: 10/100BASE-T RJ45
UART FX30S only: Configurable RS232/RS485 Sub-D9
USB USB V2.0 Micro-B connector
LEDs 1 signal LED, 1 user LED
I/Os 3 configurable I/Os
Audio PCM (on IoT Connector)
Push button For user app (GPIO)
SIM interface 2FF
Embedded SIM MFF2 (optional)
Cellular Antenna SMA
GNSS Antenna SMA with active bias
HARDWARE EXTENSION 1xIoT Connector (1xUSB, 1xUART, 1xSPI, 1xI2C, 4xGPIO,
1xADC, 1xSDIO, 1xPCM)
MOUNTING OPTIONS Bracket for screw/wall and DIN rail mounting
LOCATION SERVICES A-GPS, GLONASS, GALILEO
CONTROL OPTIONS AT Commands, Legato® shell, Legato® applications
