FRC III
Description

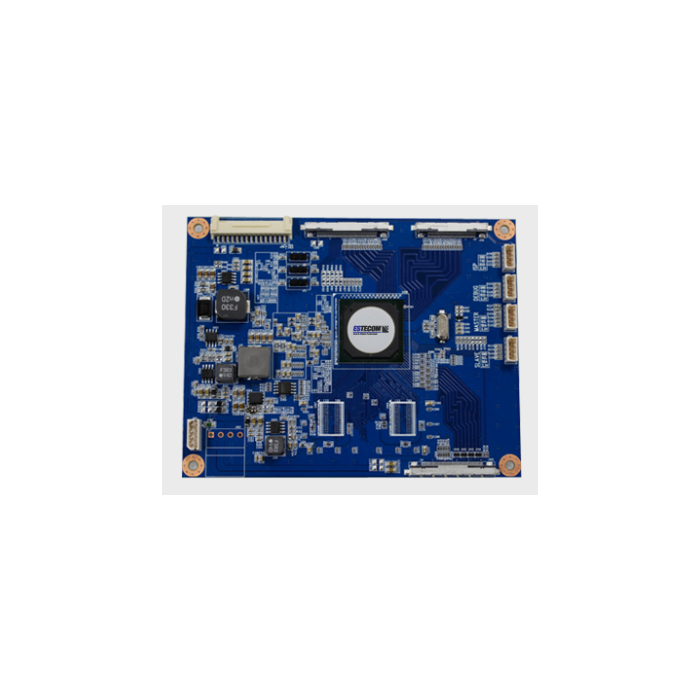

FRC-II Board is a highly integrated ASIC for doubling the frame rate of the video input to provide a conversion form 50Hz to 100Hz or 60Hz to 120hz. FRC-III Board comprises V-By One receiver, film source detection and inversion, motion frame rate conversion, color space conversion and management. It is suitable for video resolution up to UHD (4K x 2K) in all video modes, the full display area of the module is used.
Download
More Information
| Brand | Estecom |
|---|---|
| Specifications |
Dimension 133x 70mm Input Signal 8 Lane V by One Output Signal 16 Lane V by One Maximum Resolution 4096x 2500 @60Hz UART/Debug option I2C
Operating Temperature -20°C ~70°C Humidity 8% ~ 90%
Input Power Voltage +24VDC or +12VDC Storage Temperature -30°C ~80°C
|
