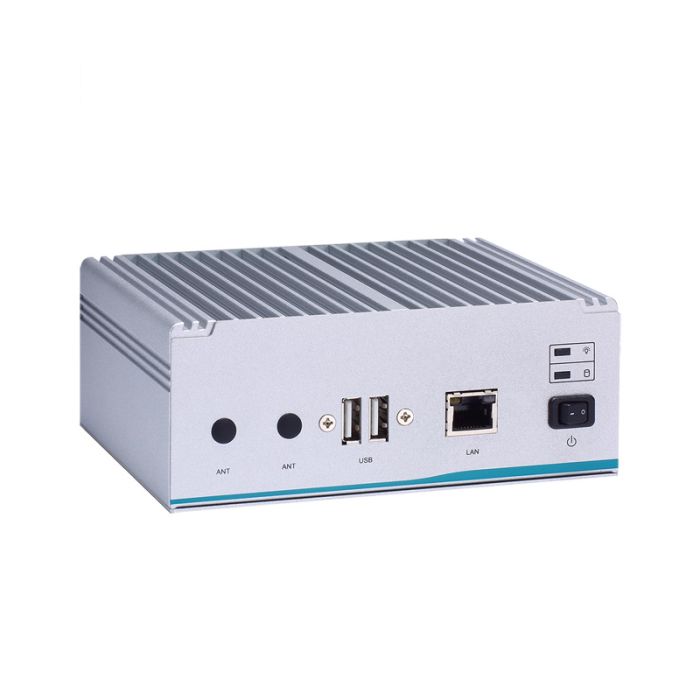

eBOX560-52R-FL Fanless i5/Celeron Palm-Size PC

SKU: eBOX560-52R-FL

Fanless Embedded System with Intel® Core™ i5-8365UE/Celeron® 4305UE Processor, HDMI/DisplayPort, 2 GbE LAN, 2 COM, 4 USB

Datasheet

Description

  • 141.6 x 106 x 55 mm
  • 8th gen Intel® Core™ and Celeron® processor onboard (Whisky Lake-U )
  • One M.2 Key E 2230 for Wi-Fi module
  • 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
  • 2 GbE LAN and 2 USB 3.1 Gen2
  • Supports DisplayPort and HDMI for dual independent displays
  • Multiple mounting designs: Wall mount, DIN-rail and VESA mountt

Download

Datasheet

More Information

Brand Axiomtek
Specifications
CPU
  • Intel® Core™ i5-8365UE, 1.6 GHz
  • Intel® Celeron® 4305UE, 2.0 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen2
Ethernet/PoE
  • 2 x 10/100/1000 Mbps (Intel® i219-LM, Intel® i211-AT)
Display
  • 1 x DisplayPort
  • 1 x HDMI
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SATA HDD drive bay (max. up 9.5 mm height)
Expansion
  • 1 x M.2 Key E 2230 (for Wi-Fi)
Others
  • 1 x ATX power switch
  • 1 x AT/ATX quick switch
  • 1 x Screw type VDC power input connector
  • 2 x Antenna opening
Power Supply
  • 12 VDC
Watchdog Timer
  • 65535 levels, 1 to 65536 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F) with 0.7 m/s air flow (with W.T. SSD/DRAM)
Relative Humidity
  • 10% - 90%, non-condensing
Vibration
  • IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Shock
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Dimensions
(W x D x H)
  • 141.6 x 106 x 55 mm (5.57" x 4.17" x 2.17")
Weight (net/gross)
  • 0.6 kg (1.32 lb)/1.5 kg (3.3 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Win 10 IoT, Linux
Software Support
  • AMS.AXView
Mounting
  • Wall mount Kit
  • DIN-rail kit
