FABS-121P 21" Stainless Steel Display

In stock
SKU
FABS-121P 21" Stainless Steel Display

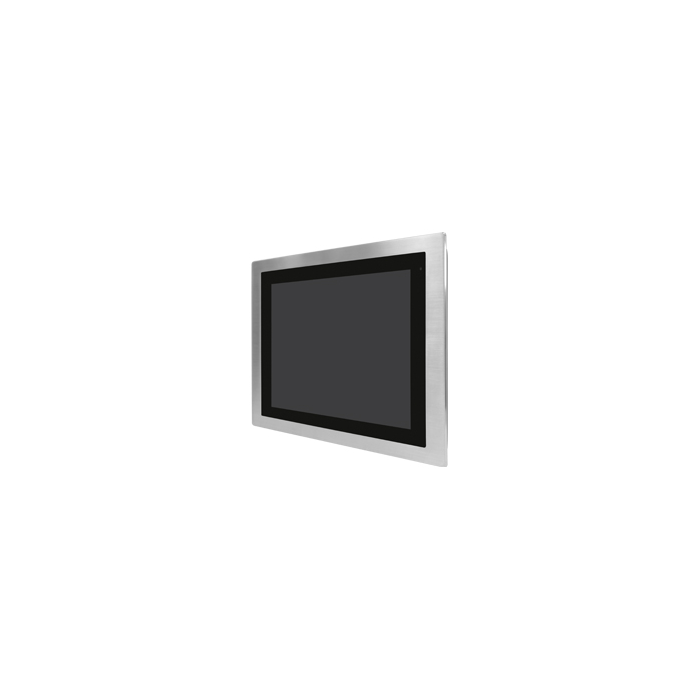

21” Flat Front Panel IP66 Stainless Chassis Display

Enquire Now
Enquire about this product:

Stainless steel front bezel Display

Flat front panel touch screen

Projected Capacitive Touch or Glass (Option)

Wide range DC 9~36V power input

IP66 compliant front panel / IP69K for option

VGA, DP, DVI/HDMI input

OSD on the rear side

System Power LED light

High brightness LCD for option

IO Port
VGA1
DVI1 x DVI-D
HDMI1
DP1
OSD Control MembraneOSD at rear side On board controller, extendable key pad from connector
Others1 x USB type B for touch control, 1 x Audio line-in phone jack, Optional I/O: 1 x Speaker
Power1 x 3-pin terminal block for DC 9~36V power input
Display
LCD Size21.5” TFT LCD
Max. resolution1920x 1080
Max. color16.7M
Luminance(cd/m²)250
Viewangle(H°/V°)178(H) / 178(V)
Contrast3000:1
Backlight lifetime(hrs)30,000 hrs
Touch Screen(Option)
Touch TypeProjected Capacitive Touch
InterfaceUSB Interface
Light transmission(%)Over 90%
Power
Power inputDC 9~36V
Mechanical
ConstructionAluminum die-casting chassis
IP ratingIP66 compliant front panel / IP69K(option)
MountingPanel mount / VESA mount 100 x 100
Dimension(mm)573.8 x 378.8 x 59.8 mm
Environment
Operatiing temperature(°C)0~50°C
Storage temperature(°C)-30~70˚C
Storage humidity10 to 90% @ 40°C, Non-condensing
CertificationCE/FCC, Class A
