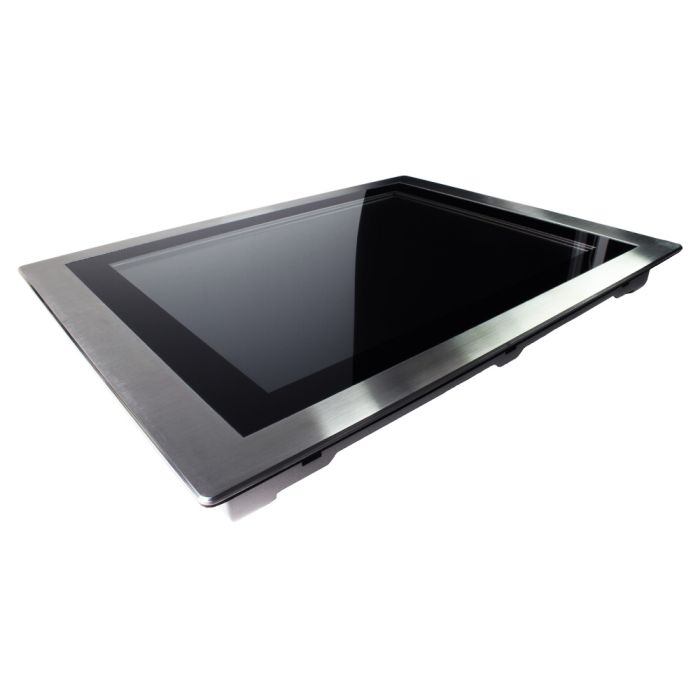

FABS-115P - 15" Stainless Steel Display

In stock
SKU:
FABS-115P - 15" Stainless Steel Display

15” Flat Front Panel IP66 Stainless Chassis Display


Downloads:

Enquire Now
Enquire about this product
We build to order
IO Port
VGA1
DVI1 x DVI-D
HDMI1
DP1
OSD Control MembraneOSD at rear side On board controller, extendable key pad from connector
Others1 x USB type B for touch control, 1 x Audio line-in phone jack, Optional I/O: 1 x Speaker
Power1 x 3-pin terminal block for DC 9~36V power input
Display
LCD Size15” TFT LCD
Max. resolution1024 x 768
Max. color16.2M
Luminance(cd/m²)300
Viewangle(H°/V°)176(H) / 176(V)
Contrast2000:1
Backlight lifetime(hrs)50,000 hrs
Touch Screen(Option)
Touch TypeProjected Capacitive Touch
InterfaceUSB Interface
Light transmission(%)Over 90%
Power
Power inputDC 9~36V
Mechanical
ConstructionAluminum die-casting chassis
IP ratingIP66 compliant front panel / IP69K(option)
MountingPanel mount / VESA mount 100 x 100
Dimension(mm)422 x 322 x 54.1 mm
Environment
Operatiing temperature(°C)0~50°C
Storage temperature(°C)-30~70˚C
Storage humidity10 to 90% @ 40°C, Non-condensing
CertificationCE/FCC, Class A
