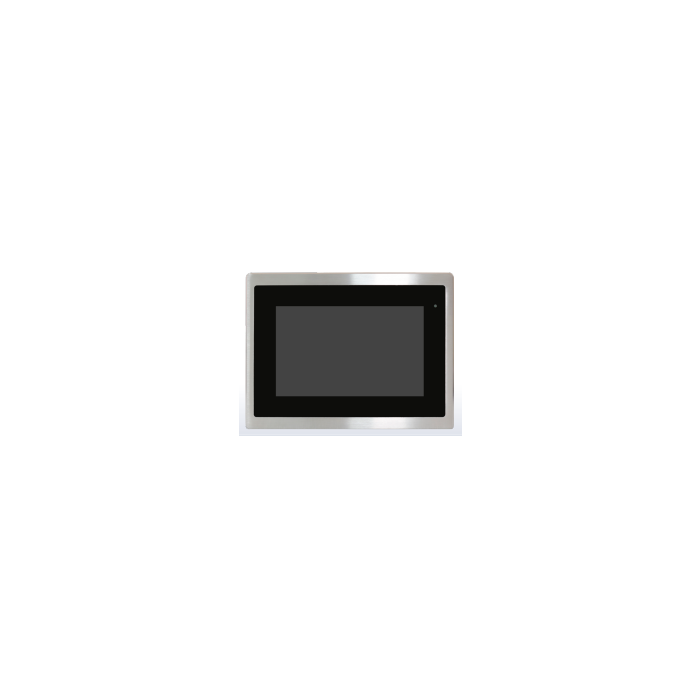

FABS-107P - 7" Stainless Steel Display

In stock
SKU:
FABS-107P - 7" Stainless Steel Display

7” Flat Front Panel IP66 Stainless Chassis Display


Downloads:

Enquire Now
Enquire about this product
We build to order
IO Port
VGA1
DVI1 x DVI-D
HDMI1
DP1
OSD Control MembraneOSD at rear side On board controller, extendable key pad from connector
Others1 x USB type B for touch control, 1 x Audio line-in phone jack, Optional I/O: 1 x Speaker
Power1 x 3-pin terminal block for DC 9~36V power input
Display
LCD Size7” TFT LCD
Max. resolution800 x 480
Max. color262K
Luminance(cd/m²)350
Viewangle(H°/V°)140(H) / 110(V)
Contrast400:1
Backlight lifetime(hrs)40,000 hrs
Touch Screen(Option)
Touch TypeProjected Capacitive Touch
InterfaceUSB Interface
Light transmission(%)Over 90%
Power
Power inputDC 9~36V
Mechanical
ConstructionAluminum die-casting chassis
IP ratingIP66 compliant front panel / IP69K(option)
MountingPanel mount / VESA mount 75 x 75
Dimension(mm)217 x 163 x 40 mm
Environment
Operatiing temperature(°C)0~50°C
Storage temperature(°C)-30~70˚C
Storage humidity10 to 90% @ 40°C, Non-condensing
CertificationCE/FCC, Class A
