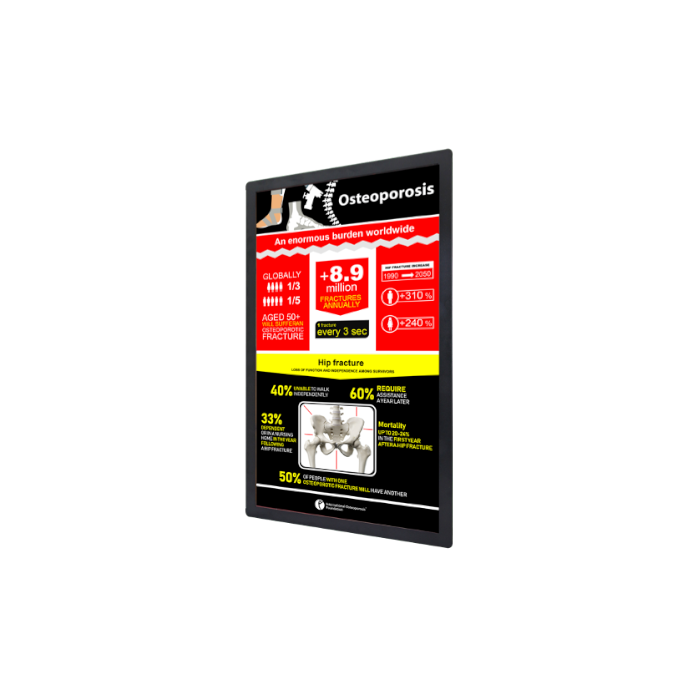

EPD-2501 Public Information e-Ink Display
Onboard Intel Celeron SoC BGA Processor N3350
Key Features:
- 25.3” E Ink Black/White/Red/Yellow
- 25.3” E Ink Gallery Plus Full colour 55K (Typ.)
- 25.3" E Ink Kaleido with colour 4096
- Onboard Intel® Celeron® SoC BGA Processor N3350
- DDR3L 1866MTs SO-DIMM up to 8GB,
- 2.5” SATA3 SSD 64GB
- 2 x HDMI, 1 x COM, 2 x LAN, 4 x USB 3.1(Gen1)
- Front Cover Glass, Optional PMMA, support IP54
- Super Slim Bezel Design
- E Ink SDK / API support
- Optional WiFi Module
- Operating Temp 0~40C
Enquire Now
Enquire about this product:
Using extremely low power and low reflectivity with no backlight, it can display healthcare information while reducing paper use and energy depletion. Furthermore, a 4-colour e-paper display is more appealing than a conventional monochrome e-paper. Collaborating with Biomdcare, Avalue will be exhibiting its MAB-T600 healthcare AI workstation in the “Medical AI” zone.
Key Features:
- 25.3” E Ink Black/White/Red/Yellow
- 25.3” E Ink Gallery Plus Full colour 55K (Typ.)
- 25.3" E Ink Kaleido with colour 4096
- Onboard Intel® Celeron® SoC BGA Processor N3350
- DDR3L 1866MTs SO-DIMM up to 8GB,
- 2.5” SATA3 SSD 64GB
- 2 x HDMI, 1 x COM, 2 x LAN, 4 x USB 3.1(Gen1)
- Front Cover Glass, Optional PMMA, support IP54
- Super Slim Bezel Design
- E Ink SDK / API support
- Optional WiFi Module
- Operating Temp 0~40C
| -System Information- | |
| Processor | Onboard Intel® Celeron® SoC BGA Processor N3350 |
| System Memory | 1 x 204-Pin DDR3L 1866MTs SO-DIMM up to 8GB |
| Board | ECM-APL2 + LT1000 T-CON Board |
| Storage | |
| Storage | 2.5” SATA3 SSD 64GB |
| External I/O | |
| USB Port | 4 x USB 3.1 (Gen1 5Gbps) |
| LAN Port | 2 x RJ45 LAN port |
| Wireless LAN Antenna | mPCIe Wi-Fi/BlueTooth module |
| Panel | |
| LCD Size | 25.3“ |
| LCD Panel | E Ink EL253TV1 E Ink AC253TT1 |
| Display Type | E Paper Display |
| Resolution | 3200x1800 |
| Touch Screen | 2.8 mm Super Clear CG |
| Wireless Communication | |
| WLAN | Optional dual-band 2.4/5.0GHz wireless LAN |
| Bluetooth | Optional Bluetooth 5.0 |
| Ethernet Chipset | Intel® I211AT, 10/100/1000 Base-Tx Gigabit Ethernet Compatible) |
| Mechanical & Environmental | |
| Operating Temperature | 0 ~ 40°C |
| Storage Temperature | -25 ~ 60°C |
| Operating Humidity | 5% ~ 90% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | L 607 x W 350 x H 38.8mm |
| Weight | 4.4kg |
| Vibration Test | 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis |
| Shock Test | 10Grms, IEC 60068-2-27, Half Sine, 11ms |
| Drop Test | ISTA-2A, IEC-60068-2-32 (96.5cm) |
| IP Rating | Front IP54 |
| Power Requirement | +12V/5A (60W) (accept +12V DC in) |
| Power Connector | Lockable DC Jack |
| Color | Black |
| Software Support | |
| OS Information | Windows 10 IoT / Linux |
