SKU: EMSS-32R1

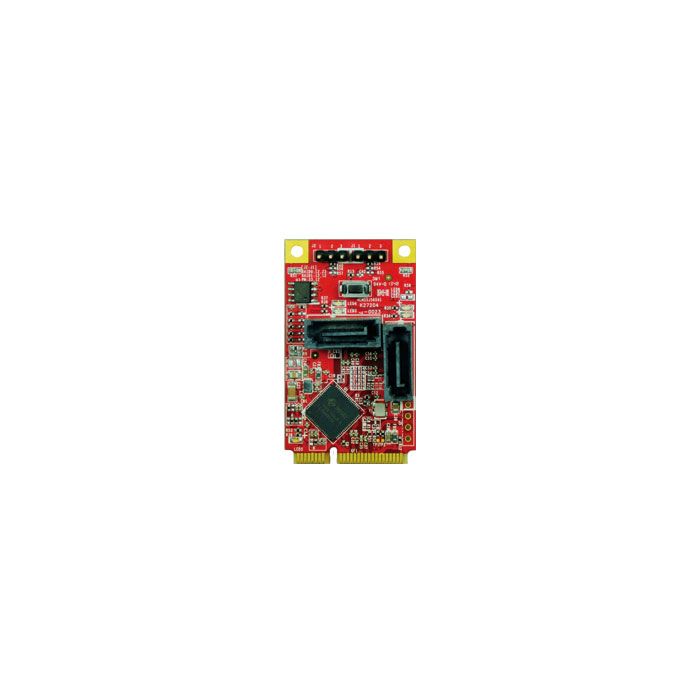

mSATA to Dual SATA3 RAID Module

Datasheet

Description

mSATA to Dual SATA3 RAID Module

· Supports mSATA to dual SATA III by Port Multiplier

· Supports H/W RAID 0/1 over SATA

· Optional Industrial Temperature (-40°C to +85°C) support

· 30μ" golden finger, 3 years warranty

· Industrial design, manufactured in Innodisk Taiwan

Product Data Sheet

Specifications

Module Name	EMSS-32R1
Module Type	mSATA to Dual SATA3 RAID Module
Form Factor	mSATA
Input I/F	SATA III
Output I/F	SATA III
Output connector	SATA 7pin x 2
TDP	1.65W (3.3V x 498mA)
Dimensions (W x L x H/mm)	29.85 x 50.8 x 10.8
Temperature	Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	1. RAID Mode Setting: [J2:J1] RAID0: 12:23, RAID1: 12:12, PM: 23:12 2. Press tact switch SW1 for reset.
