EM500-PP LoRaWAN Pipe Pressure Sensor

SKU: EM500-PP

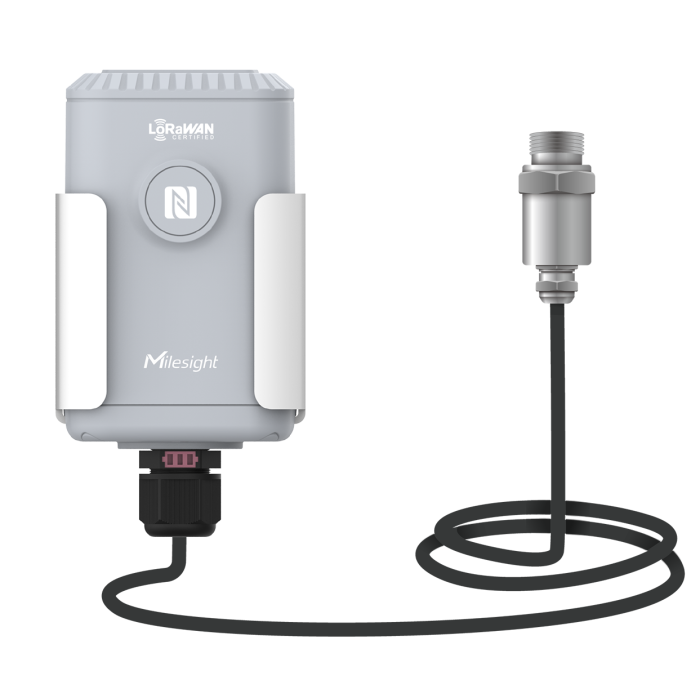

Milesight EM500-PP Pipe Pressure Sensor LoRaWAN® IP67 10 Year Battery

Key Features

  • High precision and corrosion resistance
  • Ultra-wide-distance transmission up to line of sight of 10km
  • IP67 waterproof enclosure for harsh environment applications
  • Built-in 19000 mAh replaceable battery and work for 10 years without replacement
  • Equipped with NFC for easy configuration
  • Compliant with standard LoRaWAN ® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution

Description

The EM500-PP is specifically designed for monitoring pipe pressure in rugged environments and utilizes LoRaWAN® technology to transmit data. With its low power consumption technology, the EM500-PP can operate for up to 10 years using a 19000 mAh battery. By integrating with Milesight LoRaWAN® gateways and the Milesight IoT Cloud solution, users have the ability to remotely and visually manage all the sensor data.

The EM500-PP finds wide applications in various fields such as smart buildings and the monitoring of pipeline and tank systems. Its durability and efficient data transmission make it a reliable choice for monitoring pipe pressure in challenging environments.

Key Features

  • High precision and corrosion resistance
  • Ultra-wide-distance transmission up to line of sight of 10km
  • IP67 waterproof enclosure for harsh environment applications
  • Built-in 19000 mAh replaceable battery and work for 10 years without replacement
  • Equipped with NFC for easy configuration
  • Compliant with standard LoRaWAN ® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution

Download

More Information

Brand Milesight IoT
Specifications
Wireless Transmission
Technology LoRaWAN®
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Measurement
Pressure Type Gauge Pressure
Range 0 - 1600 kPa (16 Bar)
Accuracy ± 0.5% FS
Resolution 1 kPa (0.01 Bar)
Overload 150% FS
Long-term Stability ± 0.3% FS/year
Process Connection G 1/2” Male
Operation
Power On & Off NFC, Power Button (Internal)
Configuration Mobile App (via NFC) or PC software(via USB Type-C)
Physical Characteristics
Cable Length 1.5 m
Power Supply 19000 mAh Li-SOCL2 battery (ER34615)
Battery Life* 10 years (10 min interval)
Operating Temperature -30°C to +70°C (Transceiver)/-10°C to +70°C (Pipe Pressure Sensor)
Relative Humidity 0% to 100% (non-condensing)
Ingress Protection IP67(Transceiver)/IP65(Pipe Pressure Sensor)
Dimension

Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in)

Pipe Sensor: 67.5 × ф27 mm (2.7 × ф1.1 in)

Installation Pole, wall or DIN Rail Mounting
Approvals
Regulatory CE, FCC, RoHS
* Tested under laboratory conditions and for guideline purposes only
