EM410-RDL LoRaWAN Radar Distance/Level Sensor
View larger image
EM410-RDL LoRaWAN Radar Distance/Level Sensor
The Precisionist in Measurement
Key Features:
Accurate Detection with Millimeter Wave Radar Impressive IP68 Rating Application Scenario Mode Long Battery Life of Up to 7 Years Easy NFC & Bluetooth Configuration LoRaWAN® Wireless Deployment Scenario-based Automated Calibration 8° Radar Emission Angle
Description
Radar Technology for Tailored Applications
Aside from its extensive measurement distance, radar technology is also capable of measuring through objects, including plastics, and plants, and is less sensitive to snow, dirt, dust, steam and more, making it suitable for a wider range of applications.
Easy Setup and Adjustments
Application Scenario Mode
A choice of standard, rainwater well and sewage well mode for easy scenario setup
Built-in Tilt Sensor
Allows level measurement at a tilted angle and sends timely alerts when the device has been accidentally dislocated.
More Information
Brand
Milesight IoT
Specifications
Measurement
Distance
Technology
Millimeter Wave Radar
Target
Liquids or Smooth Surface Solid
Radar Frequency Band
60GHz
Detection Angle
8°
Detection Distance
0.3m ~ 12m
Accuracy
Up to ± 2mm1
Resolution
1mm
Device Position
Status
Normal/Tilt
Wireless Transmission
LoRaWAN® Version
Frequency
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power
16 dBm (868 MHz)/20 dBm (915MHz)/19 dBm (470MHz)
Sensitivity
-137dBm @300bps
Mode
OTAA/ABP Class A
Antenna
Internal Antenna or External Antenna (Hardware Optional)

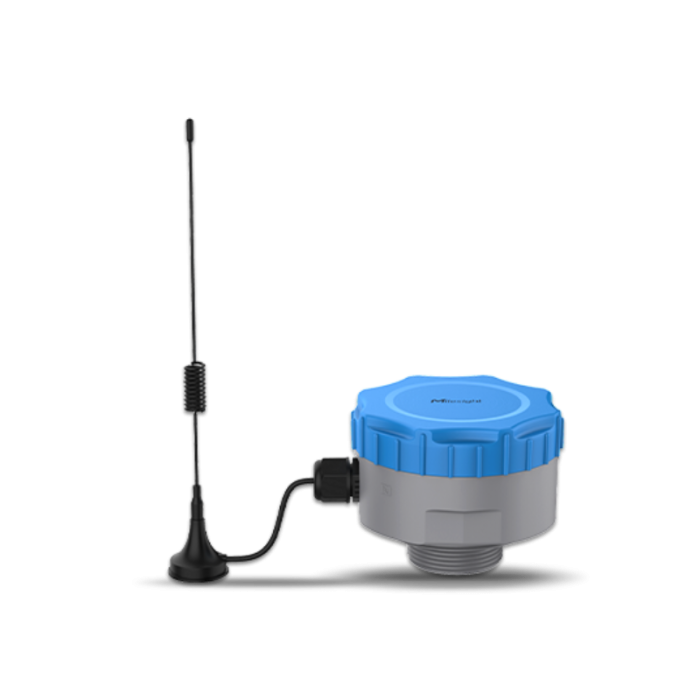

External Antenna (EA) Version: 1 × 50 Ω SMB Male Connector
Cellular Version
Frequency Band
LTE (CAT 1): B1/B3/B5/B7/B8/B20/B28 for EMEA/Australia/New Zealand
SIM Slot
1 x Nano SIM (4FF) Slot
Application Mode
TCP/UDP/MQTT/AWS/Milesight Development Platform
Antenna
Internal Antenna or External Antenna (Hardware Optional)
External Antenna (EA) Version: 1 × 50 Ω SMB Male Connector
Others
LED Indicator
1 × LED indicator (Internal)
Configuration
Mobile App via NFC or Bluetooth
Advanced Feature
Distance Threshold Alarm, Distance Change Alarm, Blind Zone Alarm, Radar-echo Curve, Diagnostic, Data Storage, Data Retransmission, Data Retrievability
Physical Characteristics
Power Supply
1 × 19000 mAh ER34615 Li-SOCL2 Battery
Battery Life2
LoRaWAN® Version: Around 7 Years
Cellular Version: Around 5 Years
(15-min collection Interval+1440-report interval, 25°C)
Operating Temperature
-40°C ~ 70°C
Relative Humidity
0 ~ 100% (non-condensing)
Ingress Protection
IP68 (1m underwater, 48 hours)
Dimension
Ф 100 × 92.2 mm (Ф 3.94 × 3.63 in)
Weight
400g
Color & Material
Blue + Grey, PVDF
Supported Tank Thread
G1 ½”, G2 ½”
Installation
Wall Bracket Mounting, Pole Bracket Mounting, Tank Threaded Installation
