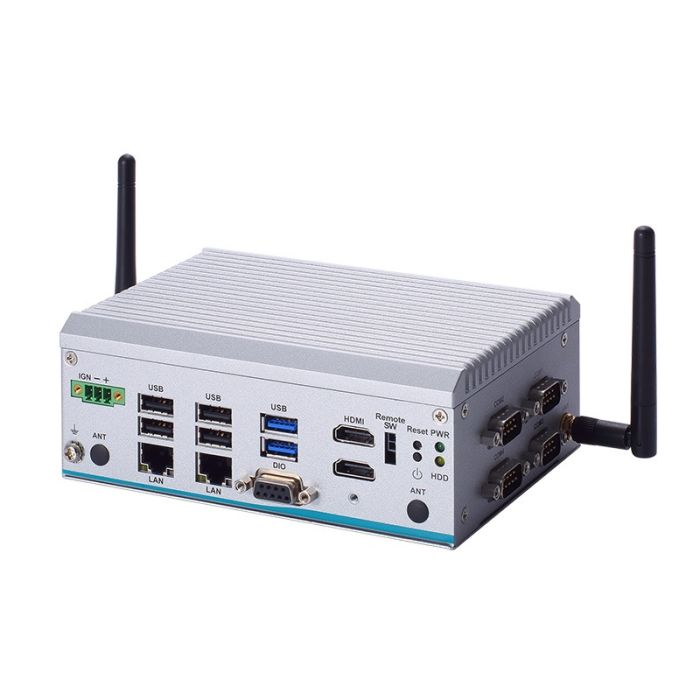

eBOX100B Fanless Embedded Computer with Intel N150
Fanless Embedded System with Intel® Twin Lake Processor, 2 LAN, 2 HDMI, 4 COM, 6 USB, DIO and 9 to 36 VDC
Key Features:
- Intel® Processor N150 Quad-core SoC (Twin Lake)
- 8GB LPDDR5 onboard (16GB option)
- Wide operating temperature -40°C to +70°C
- Intelligent power management: ignition and USB power on/off control
- 2 2.5GbE, 6 USB, 1 DIO, and 4 COM
- 2 HDMI (FHD) for dual display
- M.2 Key E 2230, M.2 Key M 2280, and Mini PCIe
- Front-access I/O design
Description
Product Overview
The Axiomtek eBOX100B is a compact, fanless embedded computer designed for industrial automation, transport, IoT and edge-computing deployments. Powered by the Intel N150 quad-core processor, it offers strong performance in a low-power, efficient package. With onboard LPDDR5 memory, M.2 expansion, dual 2.5 GbE ports and optional wireless modules, the eBOX100B provides versatile connectivity in a rugged chassis built to withstand harsh operating conditions. Its small footprint, wide power input and wide-temperature support make it suitable for vehicle integration, remote cabinets, machine control panels and other space-restricted industrial environments.
Key Features
High Performance and Compact Design
-
Intel N150 quad-core processor with 6 W TDP for efficient industrial workloads
-
Onboard 8 GB LPDDR5 memory, with up to 16 GB available for heavier tasks
-
Compact enclosure measuring 155 × 110 × 60 mm, ideal for confined installations
Versatile Connectivity
-
Dual 2.5 GbE Ethernet ports for high-speed networking
-
Dual HDMI outputs for dual-display support in dashboards, signage or control applications
-
Six USB ports, including USB 3.2 Gen 2 for fast peripheral connectivity
-
Four COM ports supporting RS-232/422/485 for legacy equipment and serial devices
-
Eight-channel TTL digital I/O for sensor or actuator integration
Storage and Expansion
-
M.2 Key M 2280 slot supporting NVMe SSD for high-performance storage
-
2.5-inch SATA drive bay supporting drives up to 15 mm for additional storage or data logging
-
Mini PCIe full-size slot with SIM support for wireless expansion
-
M.2 Key E slot for Wi-Fi or cellular connectivity
Rugged and Industrial Design
-
Fanless operation and solid aluminium-steel chassis for long-term reliability
-
Wide operating temperature range from –40 °C to +70 °C when using wide-temperature components
-
Shock and vibration resistance compliant with industrial and mobile requirements
-
IP40-rated enclosure designed to withstand harsh environments
Power and Deployment
-
Wide 9 to 36 V DC power input with ignition control for vehicle and transport applications
-
Front-access I/O for simplified installation and maintenance
-
Supports wall-mount, DIN-rail and VESA mounting options
-
Built-in watchdog timer for autonomous system recovery in unattended deployment
Dimensions Drawings
Download
More Information
| Brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
eBOX100B-N150-2E (P/N-E36K100B00)
Fanless embedded system with Intel® processor N150 (Twin Lake), 2 LAN, 2 HDMI, 4 COM, 6 USB, DIO, and 9 to 36 VDC
E29R129102
Wall mount kit
E29R129133
DIN-rail kit
E29R129134
VESA mount kit
509000005500
24V 60W power adapter
