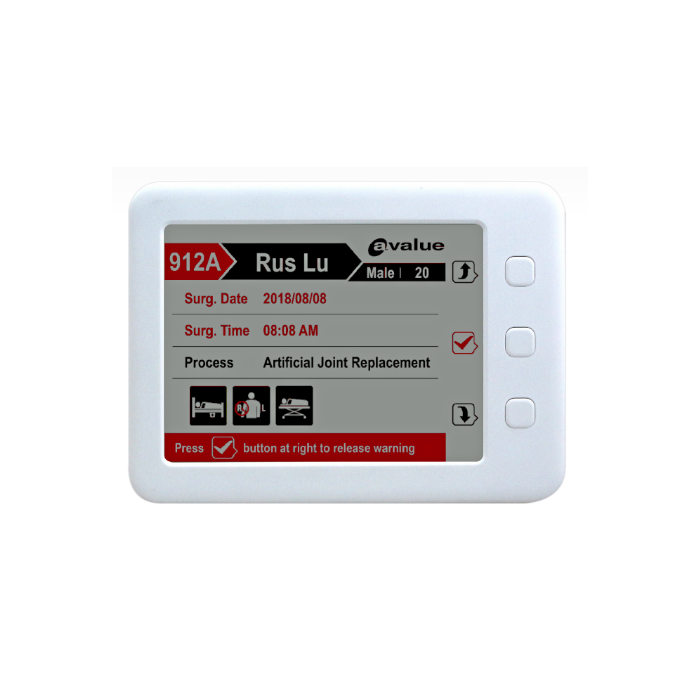

EBC-05M1 - 5.65" E Ink Bedside Card

SKU: EBC-05M1 - 5.65" E Ink Bedside Card

E Ink Color B/W/R, Resolution 600 x 448, 3 Buttons for Page up/ Confirm/ Page down, Front IP65, Sub-GHz (915MHz) frequency, Ultra low power consumption, Easy battery replacement

Description

E Ink Color B/W/R, Resolution 600 x 448, 3 Buttons for Page up/ Confirm/ Page down, Front IP65, Sub-GHz (915MHz) frequency, Ultra low power consumption, Easy battery replacement

More Information

Specifications
System
MCU ARM Cortex-M
Panel
LCD Panel 5.65” E-ink ED057TC6
Pixel pitch 600 x 448
Touch Type Cover Lens only
External I/O
Wireless LAN Antenna Onboard PCB Antenna
Mechanical
Color White
Reliability
Operating Temperature 0 ~ 40 C
Operating Humidity 5%~90% relative humidity, non-condensing
Storage Temperature -20 ~ 60 C
Packaging Drop Test EC-60068-2-32 (96.5cm)
Mechanical & Environmental
Dimensions(W x L x D) 160 x 113 x 15 mm
Vibration Test 1Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test 10Grms, IEC 60068-2-27, Half Sine, 11ms
Dust and Rain Test Front panel IP65
Certifications
Certification Information NCC , FCC
Power Requirement
Battery 4 x AAAA batteries
Specification
Frequency Sub-GHz communication
