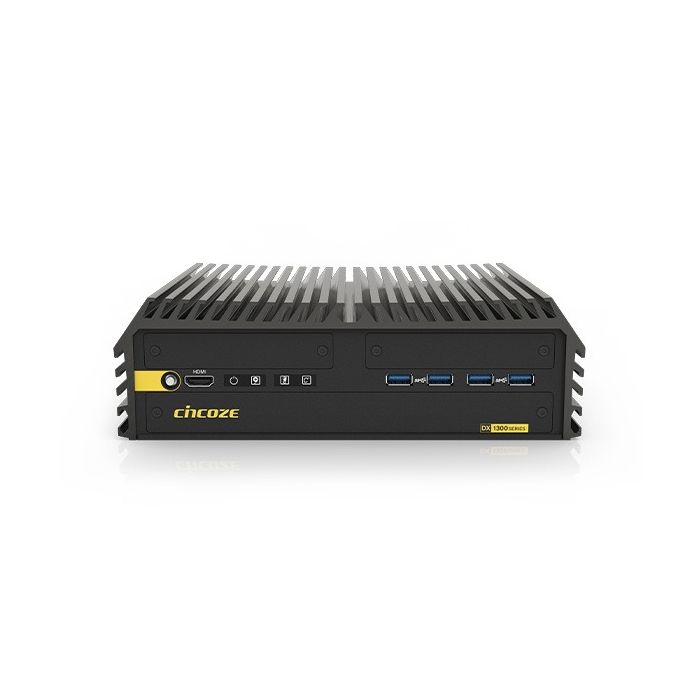

DX-1300 Fanless Rugged Embedded Computer with Intel Ultra 200S Series
Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and Compact Rugged Embedded Computer
Key Features:
- Intel® Arrow Lake-S Core™ Ultra 200S Series (Max 65 W TDP)
- 2x DDR5 SODIMM/CSODIMM Sockets, Up to 6400MHz, 96GB
- Wide Operating Temperature -40°C to 60°C
- Optional CMI Modules for I/O Expansion
- Optional CFM Modules for Hardware TPM, Ignition Sensing & PoE
Description
Product Overview
The Cincoze DX-1300 is a high-performance compact industrial computer designed for edge AI, machine vision and data-intensive applications in space-constrained environments. Built on the latest Intel Core Ultra 200S platform, it integrates CPU, GPU and NPU capabilities into a single system to support real-time processing and AI workloads. Despite its powerful performance, the DX-1300 maintains a compact footprint, making it ideal for integration into control cabinets, production lines and in vehicle systems where space and reliability are critical.
Key Features
High Performance Platform
-
Intel Core Ultra 200S processor platform with integrated CPU, GPU and NPU
-
Supports up to 36 TOPS for AI inference and edge processing tasks
-
Designed for high-performance workloads such as image processing and analytics
-
Supports high-speed DDR5 memory for improved data throughput
Compact and Space-Efficient Design
-
Ultra compact chassis suitable for space-constrained installations
-
Designed for deployment in control cabinets, machinery and embedded systems
-
High performance density within a small form factor
-
Ideal for applications requiring powerful processing in a limited space
Flexible Expansion Architecture
-
Modular expansion design supporting customised I/O configurations
-
Multiple M.2 slots for wireless, storage and communication modules
-
Supports integration of 5G, WiFi and GNSS connectivity
-
Expandable for application-specific requirements
Rich Industrial Connectivity
-
Multiple Ethernet options, including 2.5 Gigabit and higher speed networking
-
USB 3.2 interfaces for high-speed peripherals and data devices
-
Serial communication ports for industrial equipment integration
-
Supports multiple display outputs, including HDMI, DisplayPort and VGA
Storage and System Integration
-
Supports high-speed NVMe SSD storage for data-intensive applications
-
Additional storage options available for scalable system configurations
-
Designed for integration into industrial automation and edge systems
-
Suitable for real-time data acquisition and processing
Rugged Industrial Design
-
Fanless construction for reliable operation and reduced maintenance
-
Designed to withstand vibration and harsh industrial environments
-
Wide operating temperature support for demanding deployments
-
Built for continuous 24/7 operation in mission-critical systems
Applications and Use Cases
The DX-1300 is suitable for:
-
Machine vision and automated inspection systems
-
Edge AI and real-time analytics
-
Industrial automation and smart manufacturing
-
Transportation and in-vehicle computing
-
Data acquisition and intelligent control systems
Dimensions/Drawings
Download
More Information
| Brand | Cincoze | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
|
Model No. |
Product Description |
|---|---|
|
DX-1300-R10 |
Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and Compact Rugged Embedded Computer |
|
DX-1300 Series Embedded System x1 |
Power Terminal Block Connector x1 |
|
CPU Heatsink Pack x1 |
Remote Power On/Off Terminal Block Connector x 1 |
|
Screw Pack x1 |
Fan Terminal Block Connector x 1 |
|
Wall Mounting Kit x1 |
M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
|
Model No. |
Description |
|---|---|
|
CFM-PoE01 |
CFM Module with PoE Control Function, Individual Port 25.5W |
|
CFM-IGN01 |
CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
|
CFM-TPM02-R10 |
CFM Module with Hardware TPM 2.0 |
|
CMI-LAN01-R12 |
CMI Module with 4x RJ45 Intel I210 1GbE LAN Ports |
|
CMI-M12LAN01-R12 |
CMI Module with 4 x M12 Intel I210 1GbE LAN Ports |
|
CMI-XM12LAN01-R10 |
CMI Module with M12 X-Coded Connector, 4x Intel I210 1GbE LAN Ports |
|
CMI-2P5GLAN01-R10 |
CMI Module with 4x Intel 2.5GbE LAN, RJ45 Port |
|
CMI-10GLAN05-R10 |
CMI Module with 2x Intel 10GbE LAN, RJ45 Port |
|
CMI-10GXM12LAN01-R10 |
CMI Module with 2x Intel 10GbE LAN, M12 X-Coded Connector |
|
CMI-DIO01 |
CMI Module with 16DIO (8in 8out) |
|
CMI-COM01 |
CMI Module with 2x RS232/422/485 (Support 5V/12V) |
|
MEC-CAN-2812i |
M.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
|
MEC-CAN-2814i |
M.2 2242/2260/2280 (B+M key) quad isolated CAN bus 2.0B board (-40℃~+85℃), 4x DB9 Connector, Cervoz |
|
MEC-COM-2012 |
M.2 2242/2260/2280 (B+M key) 2-port RS-232 serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
|
MEC-COM-2032i |
M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
|
MEC-LAN-2002i |
M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(-40℃~+85℃), 2x RJ45 Connector, Cervoz |
|
MEC-LAN-2002i-S |
M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(0℃~+70℃), 2x RJ45 Connector, Cervoz |
|
UB0930-R10 |
Universal Bracket with 4x M12 X-Coded Cutout |
|
UB0932-R10 |
Universal Bracket with 3x Antenna Cutout |
|
UB1303 |
Universal Bracket with 2x DB9 Cutout |
|
UB1311 |
Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion |
|
UB1318 |
Universal Bracket with DIO Cutout |
|
UB1710-R10 |
Universal Bracket with 4x M12 A-Coded Cutout |
|
UB1712-R10 |
Universal Bracket with 4x RJ45 Cutout |
|
UB1728-R10 |
Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion |
|
UB1737-R10 |
Universal Bracket with 2x M12 X-coded Cutout |
|
AC-BE01-R10 |
M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card |
|
SIDE-DX |
DX Series side mount kit |
|
DIN01 |
DIN-RAIL Mount Kit, KMRH-K175 |
|
GST220A24-CIN |
Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
|
GST360A24-CIN |
Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and TUBES, Level VI |
|
RSD-200D-24 |
Railway Single Output DC-DC Converter 200W / DC 24V |
|
FAN-EX101 |
External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support smart fan |
