System
|
Processor
|
13th Generation Intel® Raptor Lake-S Series CPU:
• Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
• Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
• Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
• Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W
• Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
• Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
• Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
• Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
• Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W
12th Generation Intel® Alder Lake-S Series CPU:
• Intel® Core™ i9-12900E 16 Cores Up to 5.0 GHz, TDP 65W
• Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
• Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
• Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
• Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
• Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
• Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
• Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
• Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
• Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
• Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
• Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
|
|
Chipset
|
• Intel H610E Chipset
|
|
Memory
|
• 1x DDR5 4800MHz SO-DIMM Socket
Supports Un-buffered and non-ECC Type, Up to 32GB
|
|
BIOS
|
• AMI BIOS
|
|
Graphics
|
Graphics Engine
|
• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
|
|
Maximum Display Output
|
• Supports Triple Independent Display
|
|
DP
|
• 1x DisplayPort Connector: 3840 x 2160 @60Hz
|
|
VGA
|
• 1x VGA Connector: 1920 x 1200 @60Hz
|
|
CMI Display
|
• 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion
|
|
Audio
|
Audio Codec
|
• Realtek® ALC888, High Definition Audio
|
|
Line-out
|
• 1 x Line-out, Phone Jack 3.5mm
|
|
Mic-in
|
• 1 x Mic-in, Phone Jack 3.5mm
|
|

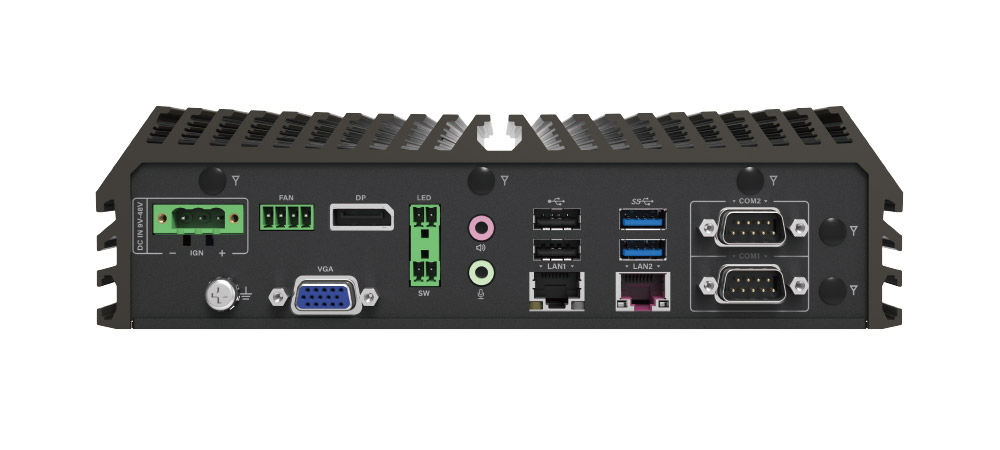

I/O
|
LAN
|
• 1x 2.5GbE LAN, RJ45
- Intel® I225
• 1x 1GbE LAN, RJ45
- Intel® I219
|
|
COM
|
• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
|
|
USB
|
• 1x 10Gbps USB3.2 Gen 2x1, Type A
• 2x 5Gbps USB3.2 Gen 1x1, Type A
• 3x 480Mbps USB2.0, Type A
|
|
Storage
|
SSD/HDD
|
• 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)
|
|
M.2 SSD
|
• 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD
• 2x M.2 SSD Shared by M.2 Key B Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD
|
|
Expansion
|
M.2 Key E Socket
|
• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel CNVi Module Expansion
|
|
M.2 Key B Socket
|
• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2 x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion
• 1x M.2 Key B Type 2242 Socket (PCIe Gen 3x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion
|
|
SIM Socket
|
• 1x Front Accessible Dual Nano SIM Socket
|
|
CMI (Combined Multiple I/O) Interface
|
• 1x CMI Interface for optional CMI-Display Module Expansion
• 2x CMI Interface for optional CMI-COM/DIO Module Expansion
|
|
CFM (Control Function Module) Interface
|
• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
|
|
Other Function
|
External FAN Connector
|
• 1x External FAN Connector, 4-pin Terminal Block
(Support Smart Fan by BIOS)
|
|
Clear CMOS Switch
|
• 1x Clear CMOS Switch
|
|
Reset Button
|
• 1x Reset Button
|
|
Instant Reboot
|
• Support 0.2sec Instant Reboot Technology
|
|
Watchdog Timer
|
• Software Programmable Supports 256 Levels System Reset
|
|
Antenna Hole
|
• 5x Antenna Holes
|
|
Power
|
Power Button
|
• 1 x ATX Power On/Off Button
|
|
Power Mode Switch
|
• 1 x AT/ATX Mode Switch
|
|
Power Input
|
• 9 - 48VDC, 3-pin Terminal Block
|
|
Remote Power On/Off
|
• 1 x Remote Power On/Off, 2-pin Terminal Block
|
|
Remote Power LED
|
• 1 x Remote Power LED, 2-pin Terminal Block
|
|
Max. Power Consumption
|
• 35W CPU
- OS Idle Mode: 87.34 W
- Full Loading: 204.46 W
• 65W CPU
- OS Idle Mode: 91.18 W
- Full Loading: 307.92 W
|
|
Inrush Current (Peak)
|
• 35W CPU: 4.362 A@24V
• 65W CPU: 4.516 A@24V
|
|

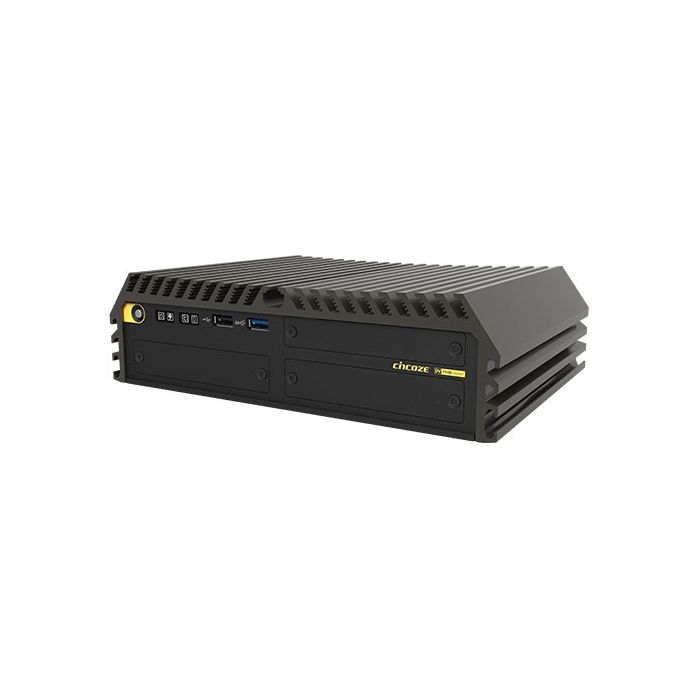

Physical
|

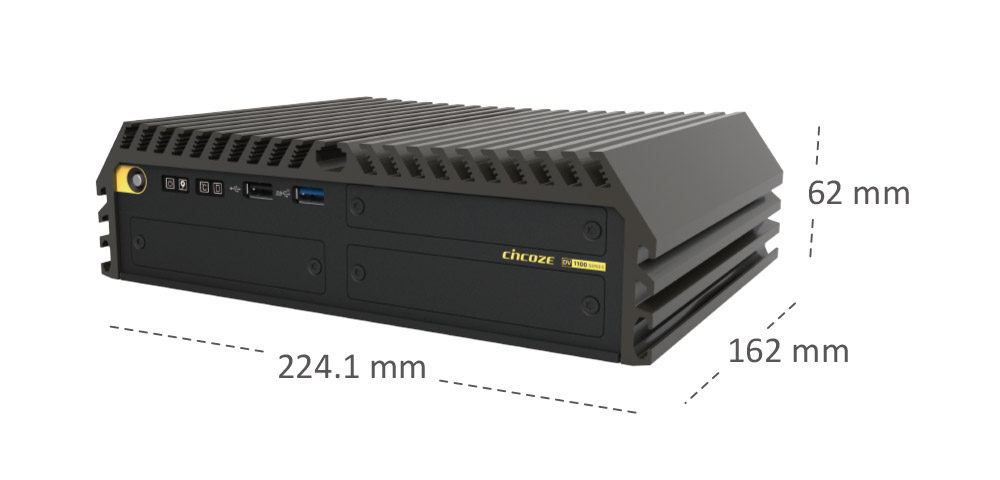

Dimension ( W x D x H )
|
• 224.1 x 162 x 62 mm
|
|
Weight Information
|
• 2.52 KG
|
|

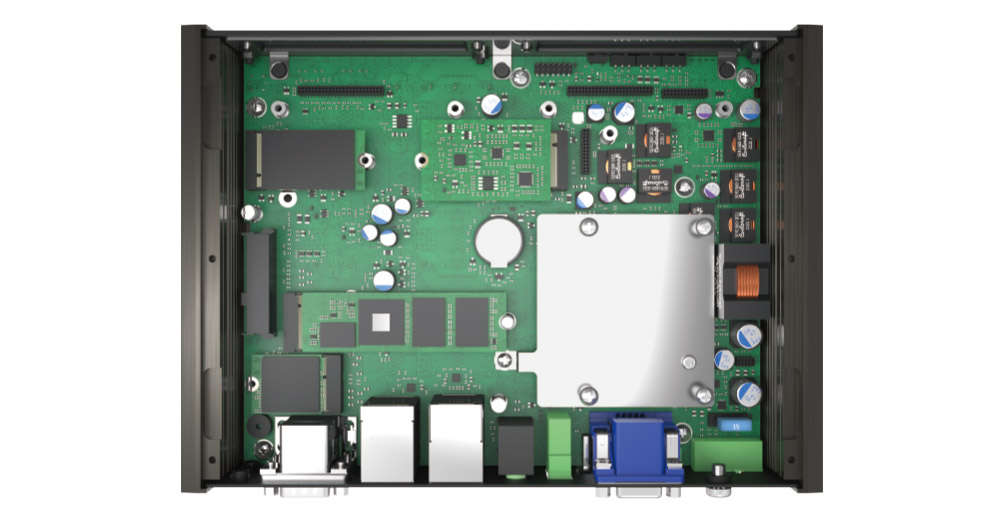

Mechanical Construction
|
• Extruded Aluminum with Heavy Duty Metal
|
|
Mounting
|
• Wall / DIN-RAIL / VESA Mount
|
|
Physical Design
|
• Fanless Design
• Cableess Design
• Jumper-less Design
• Unibody Design
|
|
Reliability & Protection
|
Reverse Power Input Protection
|
• Yes
|
|
Over Voltage Protection
|
• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
|
|
Over Current Protection
|
• 15A
|
|
CMOS Battery Backup
|
• SuperCap Integrated for CMOS Battery Maintenance-free Operation
|
|
MTBF
|
• 413,236 Hours
- Database: Telcordia SR-332 Issue3, Method 1, Case 3
|
|
Operating System
|
Windows
|
• Windows®11, Windows®10
|
|
Linux
|
• Ubuntu 22.04
|
|
Environment
|
Operating Temperature
|
• 35W TDP Processor: -40°C to 70°C
• 65W TDP Processor: -40°C to 55°C (With External Fan Kit)
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics
(without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
|
|
Storage Temperature
|
• -40°C to 70°C
|
|
Relative Humidity
|
• 95% RH @ 70°C (Non-condensing)
|
|
Shock
|
• MIL-STD-810H
|
|
Vibration
|
• MIL-STD-810H
|
|
EMC
|
• CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)
• EN 50155 (EN 50121-3-2 Only)
• E-mark
|
|
EMI
|
• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN 61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
|
|
EMS
|
• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
(**Compliant with the standard when utilizing shielded cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
|
|
Safety
|
UL, cUL, CB, IEC, EN 62368-1
|
