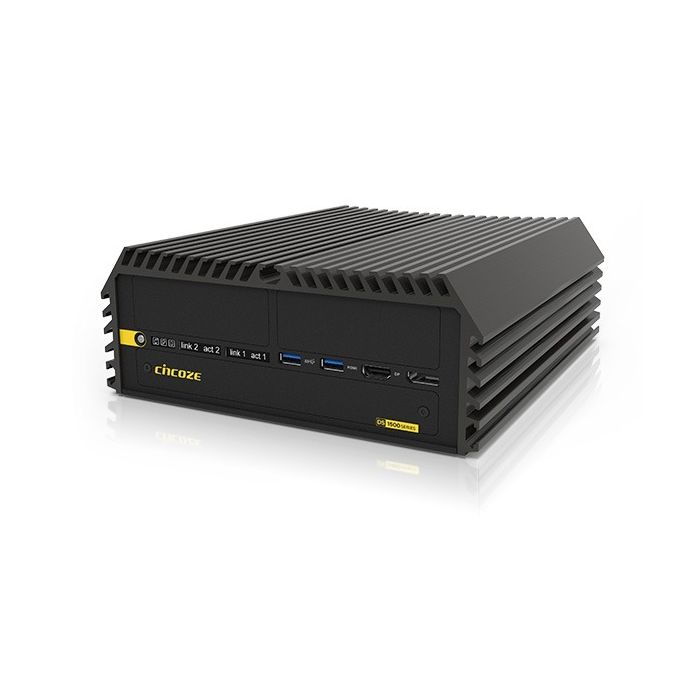

DS-1500 High Performance Rugged Embedded Computer with Intel Core Ultra
Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supporting up to 2x PCI/PCIe Expansion Cards
Key Features:
- Intel® Arrow Lake-S Core™ Ultra 200S Series (Max 65 W TDP)
- 2x DDR5 SODIMM/CSODIMM Sockets, Up to 6400MHz, 96GB
- 2x PCI/PCIe Expansion Slots, Up to 130W Expansion
- Optional CMI Modules for I/O Expansion
- Optional CFM Modules for Hardware TPM, Ignition Sensing & PoE
- Wide Operating Temperature -40°C to 60°C
Description
Product Overview
The Cincoze DS-1500 Series is a high-performance, rugged embedded computer designed for demanding industrial and edge AI applications. Built on the Intel Core Ultra 200S platform, it integrates CPU, GPU and NPU capabilities to support real-time data processing, machine vision and intelligent automation. With a strong focus on expansion and flexibility, the DS-1500 Series supports modular I/O and PCIe expansion, making it ideal for applications that require customisation, high bandwidth and long-term reliability in harsh environments.
Key Features
High Performance Platform
-
Intel Core Ultra 200S processors with integrated CPU, GPU and NPU
-
Up to 36 TOPS AI performance for edge AI and analytics workloads
-
Integrated graphics for visualisation and multimedia applications
-
Supports DDR5 memory with high-capacity configurations for demanding workloads
PCIe Expansion and Flexibility
-
Supports multiple PCI and PCIe expansion slots for add-on cards
-
Enables integration of GPU, frame grabber, motion control, and I/O cards
-
Supports high-power expansion for performance-intensive applications
-
Card retention design improves stability in high-vibration environments
Modular I/O Expansion
-
Supports modular expansion through dedicated I/O modules
-
Configurable networking, including multi-gigabit Ethernet options
-
Industrial interfaces, including COM ports, digital I O and additional connectivity
-
M.2 slots for storage, wireless and communication modules
Rich Connectivity
-
High-speed Ethernet for industrial networking and data transfer
-
USB interfaces for high-bandwidth peripherals
-
Multiple display outputs supporting multi-display configurations
-
Designed for integration with cameras, sensors and industrial systems
Rugged Industrial Design
-
Fanless construction for reliable operation and reduced maintenance
-
Wide operating temperature range for harsh environments
-
Wide DC input range for industrial power systems
-
Designed to withstand vibration and demanding deployment conditions
Application Ready
The DS-1500 Series is suitable for:
-
Machine vision and automated inspection
-
Edge AI and real-time analytics
-
Industrial automation and smart manufacturing
-
Railway and transportation systems
-
Data acquisition and intelligent control systems
Dimensions Drawings
Download
More Information
| Brand | Cincoze | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
|
Model No. |
Description |
|---|---|
|
DS-1500-R10 |
Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer |
|
DS-1501-R10 |
Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supporting 1x PCI/PCIe Expansion Card |
|
DS-1502-R10 |
Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supporting 2x PCI/PCIe Expansion Cards |
|
DS-1500 Series Embedded System x 1 |
Heatsink Pack x 1 |
|
Wall Mounting Kit x 1 |
Screw Pack x 1 |
|
Power Terminal Block Connector x 1 |
Remote Function Terminal Block Connector x 2 |
|
Fan Terminal Block Connector x 1 |
M.2 Key B Type 3052 to 3042 Adapter Bracket x 3 |
|
Model No. |
Description |
|---|---|
|
CMI-LAN01-R12 |
CMI Module with 4x RJ45 Intel I210 GbE LAN Ports |
|
CMI-M12LAN01-R12 |
CMI Module with 4x M12 Intel I210 GbE LAN Ports |
|
CMI-XM12LAN01-R10 |
CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
|
CMI-2P5GLAN03-R10 |
CMI Module with 4x Intel 2.5GbE LAN, RJ45 Port |
|
CMI-10GLAN03-R10 |
CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port |
|
CMI-10GXM12LAN03-R10 |
CMI Module with 2x Intel 10GbE LAN, M12 X-Coded Connector |
|
CMI-COM02 |
CMI Module with 4x RS232/422/485 Serial Ports |
|
CMI-ICOM01 |
CMI Module with 4x Electrical Isolated RS232/422/485 Serial Ports |
|
CMI-DIO02 |
CMI Module with 16x Optical Isolated DIO (8 in/8 out) |
|
CFM-PoE03 |
CFM Module with PoE Control Function, Individual Port 25.5W |
|
CFM-IGN101 |
CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
|
CFM-TPM01-R10 |
CFM Module with Hardware TPM 2.0 |
|
RC-E16-01 |
Riser Card with 1 x PCIex16 Slot |
|
RC-PI-01 |
Riser Card with 1 x PCI Slot |
|
RC-E8E8-R10 |
Riser Card with 2 x PCIex8 Slots |
|
RC-E16E1-01 |
Riser Card with 1x PCIex16, 1x PCIex1 slots, supports GPU card up to 75W |
|
RC-E16E1-02-R10 |
Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports GPU card up to 130W |
|
RC-E16PI-01 |
Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card) |
|
RC-PIPI-01 |
Riser Card with 2x PCI Slots |
|
AC-BE01-R10 |
M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card |
|
UB1004 |
Universal Bracket with 4x DB9 Cutout |
|
UB1010 |
Universal Bracket with 4x M12 Cutout |
|
UB1012 |
Universal Bracket with 4x RJ45 Cutout |
|
UB1018 |
Universal Bracket with DIO Cutout |
|
UB1028 |
Universal Bracket with 2x RJ45 Cutout |
|
UB1030-R10 |
Universal Bracket with 4x M12 X-Coded Cutout |
|
UB1037-R10 |
Universal Bracket with 2x M12 X-coded Cutout |
|
UB0303 |
2x Universal Bracket each with 1x DB9 Cutout |
|
UB0311 |
Universal Bracket with 2x RJ45 Cutout |
|
UB0331-R10 |
Universal Bracket with 2x Antenna Hole |
|
UB0337-R10 |
Universal Bracket with 1x USB Type C Cutout for MEC-USB (M.2 interface) Expansion |
|
UB1032-R10 |
Universal Bracket with 3x Antenna Cutout |
|
FAN-EX101 |
External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
|
FAN-UB100 |
Internal Exhaust Fan with 4pin Connector |
|
FAN-UB101 |
Internal Intake Fan with 4pin Connector |
|
MEC-LAN-2002i-S |
M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board (0℃~+70℃), 2x RJ45 Connector, Cervoz |
|
MEC-LAN-2002i |
M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board (-40℃~+85℃), 2x RJ45 Connector, Cervoz |
|
MEC-LAN-2602i |
M.2 2280 (B+M key) 2-port 2.5GbE isolated Ethernet board(-40℃~+85℃), 2x RJ45 Connector, Cervoz |
|
MEC-COM-2012 |
M.2 2242/2260/2280 (B+M key) 2-port RS-232 serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
|
MEC-COM-2032i |
M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
|
MEC-CAN-2812i |
M.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
|
MEC-USB-2002C |
M.2 2242/2260/2280 (B+M key) 2-port USB 3.2 board (0℃~+70℃), 2x USB Type C Connector, Cervoz |
|
MEC-USB-2012C |
M.2 2280 (B+M key) 2-port USB 3.2 board (0℃~+70℃), 2x USB Type C Connector, Cervoz |
|
GST220A24-CIN |
Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
|
GST360A24-CIN |
Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and Tubes, Level VI |
|
RSD-200D-24 |
Railway Single Output DC-DC Converter 200W / DC 24V |
|
Power Cable |
1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube |
