DrivePro 230 Dashcam

End of Life
SKU: DP230

End-of-life product replaced by DrivePro 250 Dashcam

Description

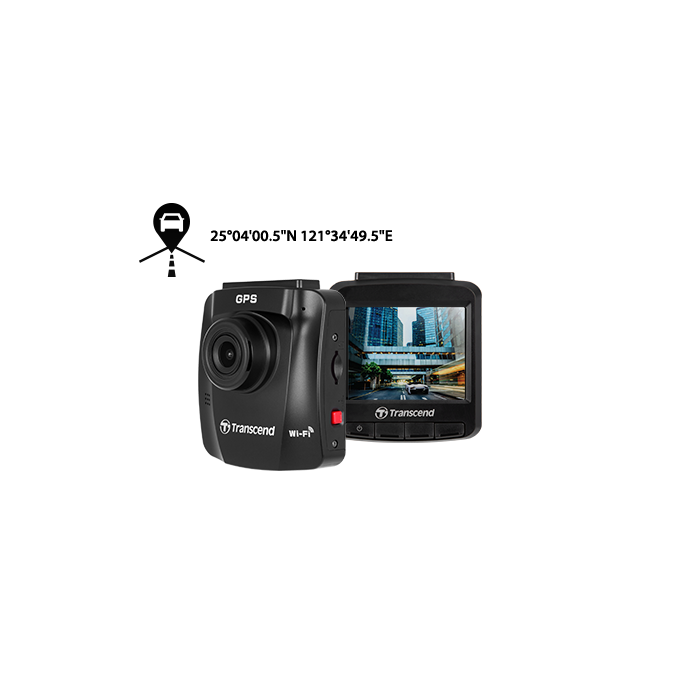

DrivePro 230 dashcam was designed with both style and safety in mind. The DrivePro 230 features an Exmor™ image sensor to capture high-resolution videos with extremely fine tonal gradation even in low light. In addition, it features a GPS/GLONASS receiver, a built-in battery, a handy snapshot button, and Wi-Fi connectivity.

Download

More Information

Brand Transcend
Specifications
Dimensions 70.2 mm x 63.1 mm x 34.5 mm (2.76" x 2.48" x 1.36")
Weight 81 g (2.86 oz)

Interface

USB Type
  • micro USB to car lighter adapter
Connection Interface
  • USB 2.0
Network Interface
  • Wi-Fi 802.11n

Hardware

Display
  • 2.4" color TFT LCD
Viewing Angle for Lens 130° (diagonal)
Aperture F/2.0

Operating Environment

Operating Temperature -20°C (-4°F) ~ 65°C (149°F)
Storage Temperature -25°C (-13°F) ~ 70°C (158°F)
Input Voltage 12V ~ 24V
Output Voltage 5V / 1A
Note
  • Do not operate the DrivePro dashcam while driving.
  • If the lighter socket in your car continues to provide power after the engine is switched off, unplug the DrivePro when the engine is off or idling to reduce unnecessary power consumption and prevent malfunction.

Format

Resolution
  • Full HD 1080P
Frame Rate 30 fps
Video Format
  • MOV (H.264)

Warranty

Certificate
  • CE/
  • FCC/
  • BSMI/
  • NCC/
  • MIC/
  • KC
Warranty
  • Two-year Limited Warranty
