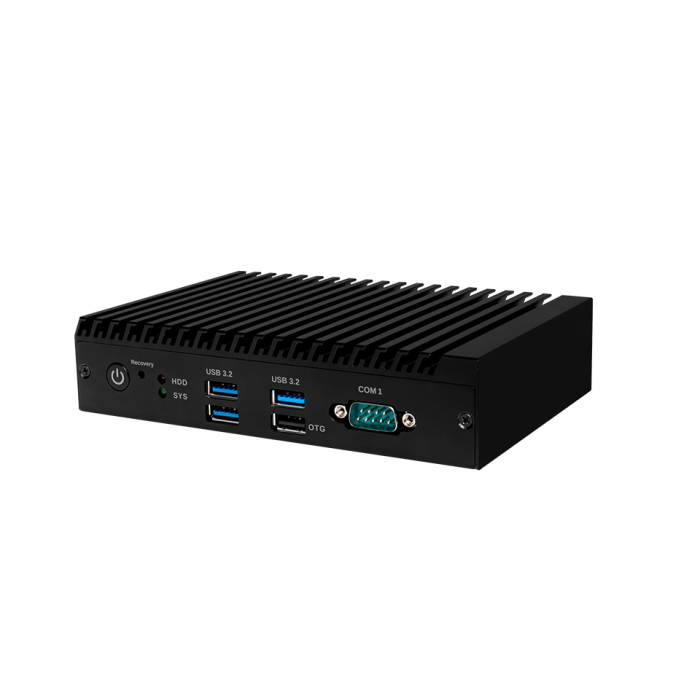

DN84-A Android 14 Fanless Digital Signage Player
Dual HDMI & HDMI-IN Fanless ARM Player
Key Features:
- Rockchip RK3576 processor
- 1 x HDMI (3840 x 2160 @120 Hz)
- 1 x HDMI (2560 x 1600 @60 Hz)
- 1 x HDMI-IN (Max. 3840 x 2160 @60 Hz)
- Onboard Wi-Fi/BT module
- Support 3G/4G module
- Rockchip Fanless design
Description
Product Overview
The Giada DN84-A is a compact embedded ARM system designed for digital signage, kiosks, industrial applications and edge deployments. Built on the Rockchip RK3576 platform, it delivers efficient performance with integrated AI capability for real-time processing and intelligent applications. With support for Android or Linux, dual display output and a fanless design, the DN84-A is well-suited for reliable 24/7 operation in retail, transport, automation and commercial environments.
Key Features
Efficient and Capable Performance
-
Rockchip RK3576 processor with multi-core architecture for stable operation
-
Integrated NPU supporting AI-based processing and intelligent workloads
-
Onboard memory and eMMC storage are designed for responsive system performance
-
Supports Android or Linux operating systems for flexible deployment
Dual Display and Multimedia Support
-
Dual HDMI outputs supporting up to 4K resolution
-
Smooth high-resolution video playback for signage and multimedia applications
-
Suitable for dual-screen signage, kiosks and interactive display systems
Network and Communication
-
Gigabit Ethernet for reliable wired connectivity
-
Integrated WiFi and Bluetooth for wireless communication
-
M.2 slot and SIM support for optional cellular connectivity
-
USB ports and serial interfaces for peripherals and industrial integration
Rugged Compact Design
-
Fanless metal chassis for silent operation and improved durability
-
Compact form factor for installation in kiosks, cabinets or behind displays
-
Designed for continuous operation in commercial and industrial environments
-
Operating temperature range suitable for indoor industrial use
Applications/Use Cases
The DN84-A is suitable for:
-
Digital signage and advertising displays
-
Interactive kiosks and self-service terminals
-
Industrial HMI and automation interfaces
-
Transport systems and public information displays
-
AI-driven retail and edge processing applications
Dimensions/Input & Output
Download
More Information
| Brand | Giada Technology Inc. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
DN84-A-3576R42E6G-GIA
CPU: Rockchip RK3576
RAM: 4 GB, Onboard LPDDR4
Storage: 64 GB, Onboard eMMC
HDMI: 2 x HDMI
Wi-Fi/BT: Onboard Wi-Fi/BT module (2.4GHz/5GHz)
Operating System: Android 14
DN84-3576R43E6G-GIA
CPU: Rockchip RK3576
RAM: 8 GB, Onboard LPDDR4
Storage: 64 GB, Onboard eMMC
HDMI: 2 x HDMI
Wi-Fi/BT: Onboard Wi-Fi/BT module (2.4GHz/5GHz)
Operating System: Android 14
