DN76 Android Dual-HDMI Fanless Signage Player
Rockchip RK3568 Dual-HDMI Support UHD (4K), 2GB LPDDR4 32GB eMMC
Key Features:
- Dual Display Outputs, Supports UHD (4K) Video Playback
- Rockchip integrated Mali-G52 GPU
- Fanless design
- Quad-core Cortex-A55 up to 2.0GHz
- Onboard 2GB LPDDR4, 32GB eMMC
- Onboard Wi-Fi/BT module
- Android 14, Android 12, Debian 12
Description
Product Overview

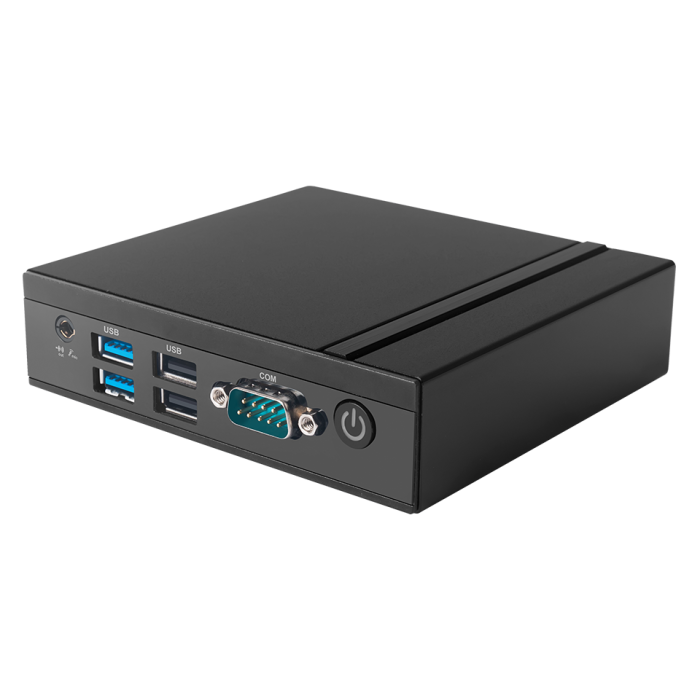

The Giada DN76 is an ultra-compact, fanless signage player built for digital signage, kiosks, automation, edge computing and light AI applications. It is powered by a Rockchip RK3568 quad-core Cortex-A55 processor (up to 2.0 GHz) paired with a Mali-G52 GPU. The system runs Android 11 and supports dual-display output, making it suitable for multi-screen signage, video walls, industrial HMI panels, kiosks or IoT edge nodes. Its small metal enclosure, passive thermal design and versatile connectivity support make it ideal for space-restricted or dust-prone deployments.
Key Features
Efficient Embedded Platform
-
Quad-core Cortex-A55 CPU at up to 2.0 GHz, offering low-power yet capable compute
-
Mali-G52 GPU for smooth graphics rendering and 4K video output
-
Onboard DDR4 memory (typically 2 GB) and onboard eMMC storage (e.g. 32 GB), with optional higher storage configurations
Display and Multimedia Output
-
Dual HDMI outputs: one HDMI 2.0 port supporting up to 4096×2160 @ 60 Hz, one HDMI 1.4 supporting up to 2560×1440 @ 30 Hz - enabling dual-screen setups or mirrored signage
-
Hardware video decoding for H.265/H.264/VP9 at 4K 60fps, ensuring smooth playback for digital signage or video applications
Connectivity and Expansion
-
Gigabit Ethernet (RJ45) network port for reliable wired connectivity
-
Onboard Wi-Fi and Bluetooth module for wireless networking
-
Mini-PCIe slot plus SIM slot for optional 3G/4G cellular connectivity, offering flexibility for remote or mobile installations
-
USB ports (USB 3.2 Gen1, OTG + additional USB ports) for peripherals, storage or input devices
-
RS-232 serial port for legacy device integration or control interfaces
-
Audio I/O (headset) for multimedia or announcement systems
Rugged, Compact Design
-
Fanless passive cooling design - reduces maintenance, noise, and risk of failure; suitable for dusty or enclosed environments
-
Compact form factor (approximately 116.6 × 107.4 × 30 mm) - easy to mount in kiosks, signage enclosures, cabinets or tight spaces
-
Metal enclosure for durability and shielding
Deployment-Friendly Features
-
Runs Android 11 - suitable for signage, kiosk software or custom apps
-
Auto power-on and RTC scheduling support - useful for energy efficiency and remote signage/kiosk deployments
-
Standard DC 12 V power input - compatible with many supply environments
I/O Ports
Download
More Information
| Brand | Giada Technology Inc. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
DN76-3568R41E5G-GIA V1
CPU: Rockchip RK3568
RAM: 2 GB, Onboard LPDDR4
Storage: 32 GB, Onboard eMMC
Wi-Fi/BT: Onboard Wi-Fi/BT module (2.4GHz/5GHz)
Operating System: Android 14
