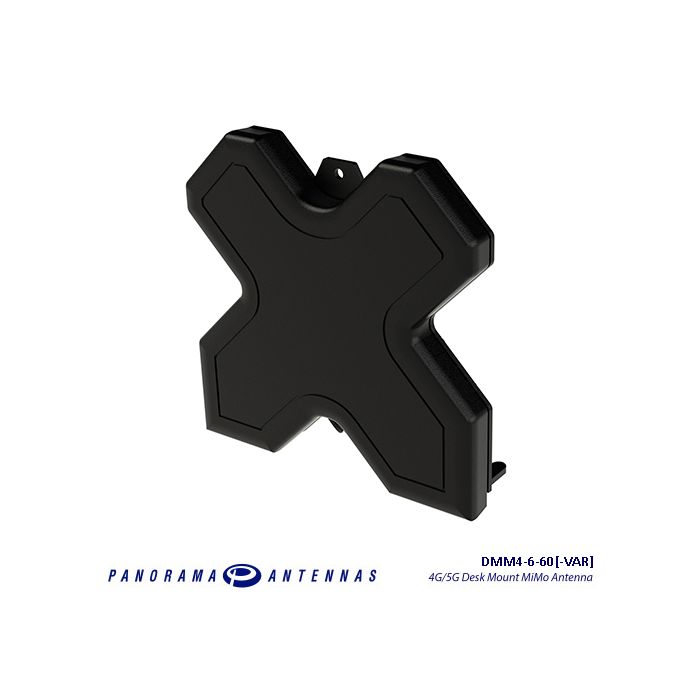

DMM4-6-60 4x4 MiMo 4G/5G Desk Mount Antenna
The DMM4 antenna provides a long-term solution for Cat 18/20 4G and 5G devices.
Key Features:
- 4G/5G CAT18/20 LTE ready with fallback to 2G/3G
- Desk, window and wall-mountable design
- Lightweight portable plug-and-play solution
- 4G/5G CAT18/20 LTE Ready
- 4x4 MiMo
- Up to 5dBi peak gain
- Multiple mounting options
- Integrated coax with connector terminations
The DMM4 antenna provides a long-term solution for Cat 18/20 4G and 5G devices. The DMM4 provides a 4x4 MiMo function by incorporating four separately fed, ultra wide band elements for 617-960/1710-6000MHz in a single housing. It can also provide two 2x2 MiMo functions for a router with dual modems, each of which requires a two-antenna system.
The DMM4 is extremely portable, with desk mount feet that fold out for use and flat for transport. With an instant installation and easy removal, a suction window mount allows the user to optimise their signal in multiple locations. Screw and adhesive pad mounting options are also available for more permanent use.
Key Features:
Product Features
-
4G/5G CAT18/20 LTE ready with fallback to 2G/3G
-
Desk, window and wall mountable design
-
Lightweight portable plug-and-play solution
Performance Features
-
4G/5G CAT18/20 LTE Ready
-
4x4 MiMo
-
Up to 5dBi peak gain
-
Multiple mounting options
-
Integrated coax with connector terminations
Benefits
-
Lightweight and easy to use
-
Unique X design for efficient 4x4 MiMo performance
-
Cost-effective 4G/5G LTE antenna
Applications
-
Failover
-
Retail & commerce
-
Travel
| Electrical Data | |
| LTE Frequencies | 617-960/1710-6000MHz |
| Typical VSWR | <2.5:1 |
| Peak Gain (dBi) | 5 |
| LTE MiMo | 4x4 |
| Max Input Power (W) | 2 |
| Pattern | Hybrid |
| Ground Plane Independent | Yes |
| Mechanical Data | |
| Available Colours | Black |
| Length (mm) | 185 |
| Height (mm) | 184 |
| Operating Temperature | -40° / +80°C (-40° /180°F) |
| Mounting Data | |
| Mounting Type | Desk Mount; Screw Mount; Window Mount |
