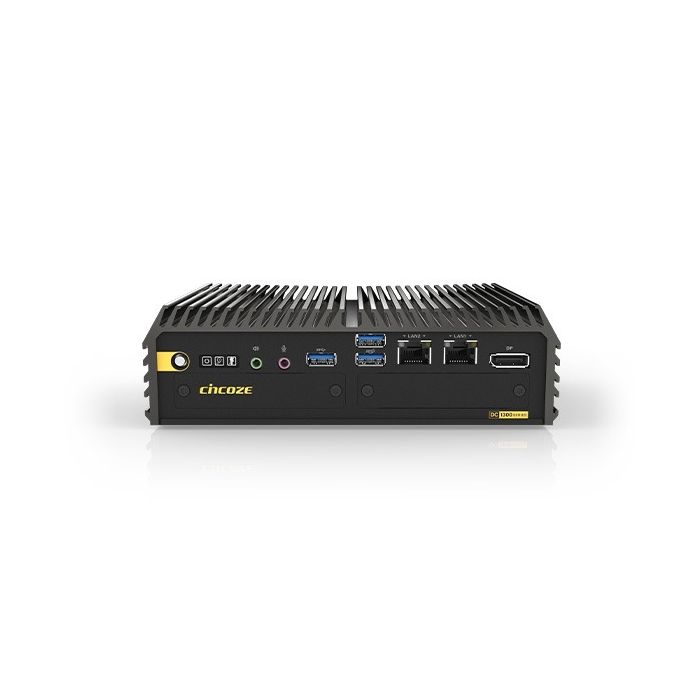

DC-1300 Compact Fanless Embedded Computer with N Series Processor
Intel® Alder Lake-N Processor Entry Performance and Compact Rugged Embedded Computer
Key Features:
- Onboard Intel® Alder Lake-N Core™ i3-N305, Processor N97 and Atom® x7425E Processor
- 1 x DDR5 SO-DIMM Sockets, Supports up to 4800MHz 16GB Memory
- 1x M.2 Key B Type 3052/3042 Socket for 5G/GNSS Module Expansion
- 1x M.2 key B Type 2242 Socket for I/O Module Expansion
- CMI Technology for Optional I/O Module Expansions
- CFM Technology for Power Ignition Sensing Function
- Safety Standard: UL, cUL, CB, IEC, EN 62368-1
Description
Cincoze DC-1300 Rugged Embedded Computer
The DC series under the Cincoze Rugged Computing - DIAMOND product line is a rugged embedded computer series specifically designed for space-constrained basic industrial automation applications. The newly launched DC-1300 continues the DC series' consistent advantages of compact size and rugged reliability with improved performance and expandability, providing customers with more powerful solutions.
Compact and Efficient
A compact size of only 185 x 131 x 56.5 mm and CPU support up to Intel Core i3 for excellent computing performance.
Highly Expandable
In addition to native I/O interfaces, Cincoze’s exclusive CMI/CFM modules provide additional I/O and function expansion. They also support I/O, CANbus, and Fieldbus modules via the exclusive stackable expansion box (SEB).
Comprehensive Wireless Sptions
Provides a full range of wireless transmission solutions, including 5G, Wi-Fi, GNSS, and more.
Multiple installation methods
Installation methods include wall mounting, side mounting, and DIN Rail mounting, enabling flexible deployment in factory machinery, control cabinets, AGVs, and AMRs.
Why Should You Choose the Cincoze DC-1300 Rugged Embedded Computer?
Certified, Stable and Reliable
The DC-1300 features the same wide temperatures (-40 - 70°C) and wide voltages (9 - 48 VDC) supported across the Cincoze computer range. It also complies with the industrial environment EMC standard (IEC 61000-6-2/4), the US military standard (MIL-STD-810H, ensuring stable operation in harsh environments and meeting the needs of various industrial applications.
Low Maintenance & Worry-Free
Frequently used settings and control switches, such as the reset, clear CMOS, and AT/ATX switches, and the SIM card slot, are centrally located in the front maintenance area for easy access. This design improves convenience by minimizing disassembly and assembly, making maintenance easier and more efficient.
Innovative SEB for Faster and Freer Deployment
The DC-1300 series is compatible with the new Stackable Expansion Box (SEB), fully utilizing the dual M.2 B Key slots built into the DC-1300 series. The SEB supports various commercially available I/O, CANbus, and Fieldbus modules, enabling extensive new and expanded applications with shorter deployment times across smart manufacturing, smart transportation, energy management, and other fields.
Design Consistency for Lower Upgrade Costs
Each Cincoze computer series has a consistent design across generations, including volume, size, and cutout fixation. This consistency enables convenient upgrades without modifying the existing mechanical design, reducing the costs incurred for redesign and production, and enabling seamless compatibility between related modules, making upgrades faster, with lower cost and greater efficiency.
Download
More Information
| Brand | Cincoze | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
Available Models
|
Model No. |
Description |
|---|---|
|
DC-1300-i3-R10 |
Intel® Core™ i3-N305 Entry Performance and Compact Rugged Embedded Computer |
|
DC-1300-N97-R10 |
Intel® Processor N97 Entry Performance and Compact Rugged Embedded Computer |
|
DC-1300-x7425E-R10 |
Intel® Atom® x7425E Entry Performance and Compact Rugged Embedded Computer |
Package Checklist
|
DC-1300 Embedded Computer x1 |
Power Terminal Block Connector x1 |
|
CPU Thermal Pad x1 |
Remote Power On/Off + Remote Power LED Connector x1 |
|
Screw Pack x1 |
M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
|
Wall Mounting Kit x1 |
|
Optional Stackable Expansion Box
|
Model No. |
Description |
|---|---|
|
SEB-DC01-R10 |
Stackable Expansion Box with 4x Expansion Area for DC Series |
Optional Modules and Accessories
|
Model No. |
Description |
|---|---|
|
CMI-VGA01 |
CMI Module with 1x VGA Port |
|
CMI-DVI01 |
CMI Module with 1x DVI-D Connector |
|
CMI-HD02 |
CMI Module with 1x HDMI Port |
|
CMI-DP03-R10 |
CMI Module with 1x DisplayPort |
|
CMI-COM03 |
CMI Module with 2x RS232/422/485 Ports(Support 5V/12V), 2x DB9 Connector |
|
CMI-DIO03 |
CMI Module with 8x DIO (4in 4out) Ports, 1x 10 Pin Terminal Block |
|
CMI-FAN01-R10 |
CMI Module with 1x 4-pin Fan Connector |
|
CFM-IGN02 |
CFM Module with Power Ignition Sensing Function, Select 12V/24V |
|
MEC-LAN-2002i |
M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(-40℃~+85℃), 2x RJ45 Connector |
|
MEC-LAN-2002i-S |
M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board(0℃~+70℃), 2x RJ45 Connector |
|
MEC-USB-2002 |
M.2 2242/2260/2280 (B+M key) 2-port USB 3.2 board(0℃~+70℃), 2x USB Type A Connector |
|
MEC-USB-2002C |
M.2 2242/2260/2280 (B+M key) 2-port USB 3.2 board(0℃~+70℃), 2x USB Type C Connector |
|
MEC-COM-2012 |
M.2 2242/2260/2280 (B+M key) 2-port RS-232 serial board (-40℃~+85℃), 2x DB9 Connector |
|
MEC-COM-2032i |
M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40℃~+85℃), 2x DB9 Connector |
|
MEC-CAN-2812i |
M.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector |
|
MEC-CAN-2814i |
M.2 2242/2260/2280 (B+M key) quad isolated CAN bus 2.0B board (-40℃~+85℃), 4x DB9 Connector |
|
UB1103 |
Universal Bracket with 2x DB9 Cutout for CMI-COM, MEC-COM & MEC-CAN Expansion |
|
UB1106-R10 |
Universal Bracket with 1x DP Cutout for CMI-DP Expansion |
|
UB1107 |
Universal Bracket with 1x DVI Cutout for CMI-DVI Expansion |
|
UB1108 |
Universal Bracket with 1x HDMI Cutout for CMI-HDMI Expansion |
|
UB1111 |
Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion |
|
UB1115 |
Universal Bracket with 1x 10 Pin Terminal Block Cutout for CMI-DIO Expansion |
|
UB1116 |
Universal Bracket with 1x VGA Cutout for CMI-VGA Expansion |
|
UB1129 |
Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion (DC Series Rear Bezel) |
|
UB1131-R10 |
Universal Bracket with 2x Antenna Cutout |
|
UB1133-R10 |
Universal Bracket with 2x USB Type C Cutout for MEC-USB Expansion |
|
UB1134-R10 |
Universal Bracket with 2x USB Type A Cutout for MEC-USB (M.2 interface) Expansion |
|
UB1135-R10 |
Universal Bracket with 1x 4-Pin Terminal Block Cutout for CMI-FAN Expansion |
|
UB1911-R10 |
Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion (DC Series Front Bezel) |
|
FAN-EX105-R10 |
External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan |
|
AC-BE01-R10 |
M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card |
|
SIDE03 |
Side Mount Kit for DC Series, with KMRH-K175 for DIN-Rail Mount |
|
DIN01 |
DIN-RAIL Mount Kit, KMRH-K175 |
|
VESA-DC |
DC series VESA Mount Kit |
|
GST60A12-CIN1 |
Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI |
|
GST120A24-CIN |
Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
