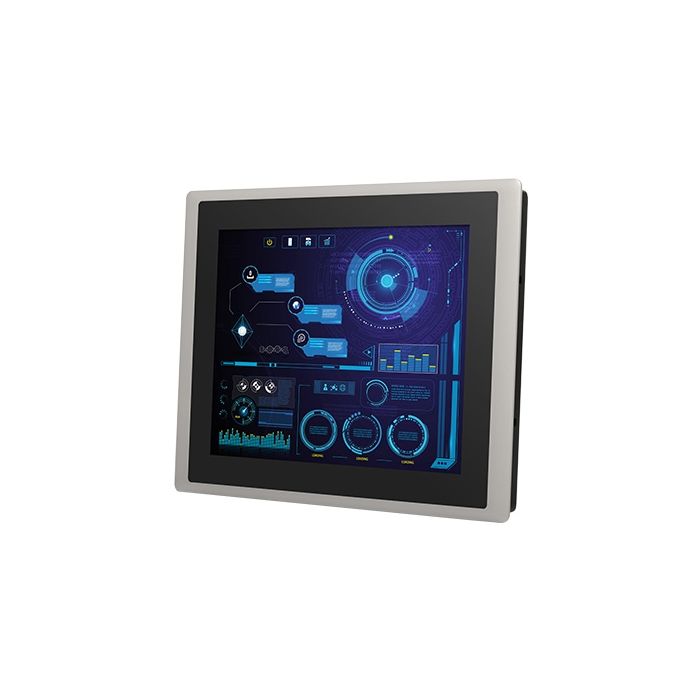

CV-112H/P1001 Power Efficient Industrial Panel PC
12.1" 4:3 Touch Panel PC, Intel Atom E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort
Key Features:
- 12.1" TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
- Designed with Aluminum Die-Casting Front Frame
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- 1x DDR3L SO-DIMM max. up to 8GB
- 1x 2.5” SATA HDD Bay, 1x CFast Card and 1x SIM Card Socket
- 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
- 1x Mini-PCIe Expansion Socket
- IP 65 Compliant Front Panel
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Supported
- Built-in Two 2W Internal Speakers
- 2x Universal I/O Brackets (For P1001E only)
Description
The 12.1" all-in-one panel PC offers LED backlight LCD with a resolution of up to 1024x768 (XGA) and 500 nits brightness. CV-112H/P1001 Series features a flat surface and IP65 dust/waterproof front panel. In addition, designed with an aluminium die-casting front frame with a rugged body structure that can be able to apply in industrial applications. CV-112H/P1001 Series supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-112H/P1001 Series carries a single-touch function with a resistive 5-wire touch screen or a multi-touch function with a projected capacitive touch screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-112H/P1001 Series offers extensive I/O including 4x USB, 2x RS-232/422/485, 1x VGA, 1x DisplayPort, 4x DI / 4x DO. Besides, the panel PC also includes a 2x Universal I/O Bracket. (For P1001E only)
CV-112H/P1001 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, there are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allows quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-112H/P1001 Series can be deployed and powered for various industrial applications.
Download
More Information
| Brand | Cincoze | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
P1001 Series
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
|
Model No. |
Product Description |
|---|---|
|
CV-112HR-R10/P1001-R10 |
12.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort |
|
CV-112HC-R11/P1001-R10 |
12.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort |
|
CV-112HR-R10/P1001E-R10 |
12.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch, with Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket |
|
CV-112HC-R11/P1001E-R10 |
12.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch, with Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket |
|
CV-112HR |
CV-112HC |
P1001 |
P1001E |
|
|---|---|---|---|---|
|
CV-112HR/P1001 |
V |
-- |
V |
-- |
|
CV-112HC/P1001 |
-- |
V |
V |
-- |
|
CV-112HR/P1001E |
V |
-- |
-- |
V |
|
CV-112HC/P1001E |
-- |
V |
-- |
V |
|
√ CV-112H/P1001 Series Panel PC x 1 |
√ Power Terminal Block Connector (Female)x 1 |
|
√ Panel Mounting Kit x 1 |
√ HDD Screw Pack x 1 |
|
√ DIO Terminal Block Connector (Female)x 1 |
√ Mini PCIe Screw Pack x 1 |
|
Model No. |
Description |
|---|---|
|
MEC-COM-M212-DB9 |
Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable (For P1001E only) |
|
MEC-LAN-M102-30 |
Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P1001E only) |
|
MEC-USB-M102-30 |
Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable (For P1001E only) |
|
UB0303 |
2x Universal Bracket each with 1x DB9 Cutout (For P1001E only) |
|
UB0311 |
1x Universal Bracket with 2x RJ45 Cutout (For P1001E only) |
|
UB0314 |
1x Universal Bracket with 2x USB Cutout (For P1001E only) |
|
URM01 |
Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
|
GST60A12-CIN1 |
Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
|
SL2-SL3 |
US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
|
SL6-SL3 |
EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
|
QP026-SL3 |
UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
