Crocus
Multi-purpose LCD controller
175mm x 145mm
2 x HDMI, 2 x DP, 1 x VGA
4K x 2K
Description

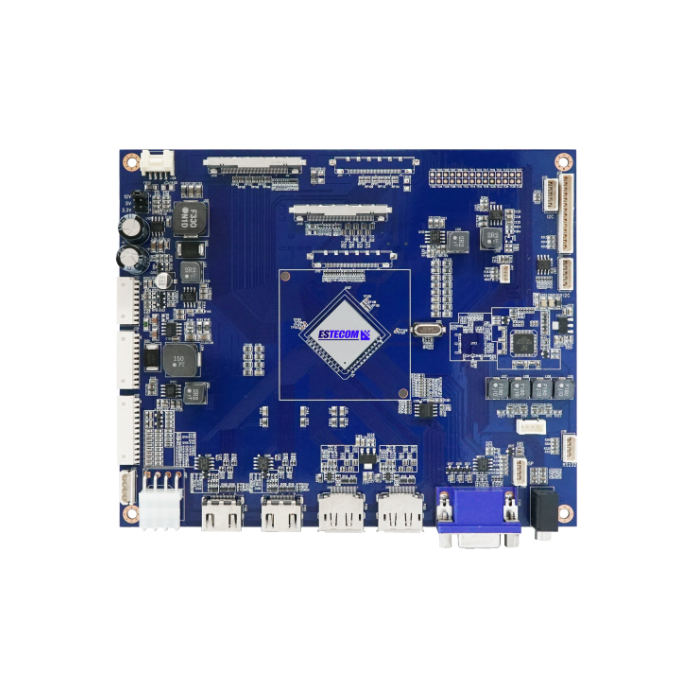

Crocus is an advanced TFT-LCD Monitor Control Board. This design enables a full conventional CRT monitor and/or video replacement with a large size Active Matrix LCD module. It is suitable for video resolution up to UHD (4K x 2K) in all video modes, the full display area of the module is used.
Supporting video version
- HDMI 2.0
- Displayport 1.4
More Information
| Brand | Estecom |
|---|---|
| Specifications |
Board Dimension 175x 145mm Input Signal RGB , 2 x HDMI, 2 x Displayport Output Signal V by One, eDP, 4CH LVDS Maximum Resolution 4096x 2500 @60Hz Local Control OSD (On Screen Display) and IR Remote Control (UART) RS-232 Operating Temperature -20°C ~70°C Humidity 8% ~ 90% Input Power Voltage +24VDC or +12VDC Storage Temperature -30°C ~80°C
|
