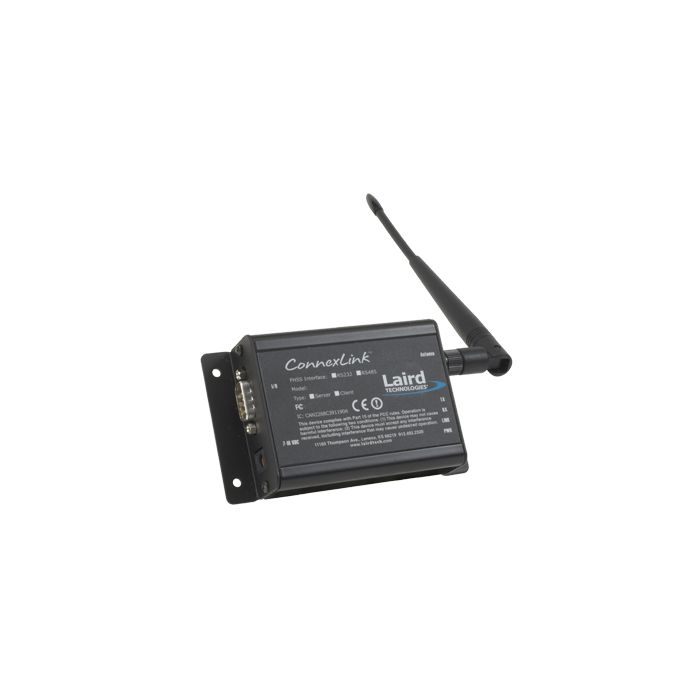

CL4790

TRANSCEIVER PERFORMANCE
Output power 1000mW
Transmission range Up to 1500 feet (450m) indoors; Up to 20 miles (32 km) line-of-sight
Data rate Up to 115.2 Kbps
RF Data Rate 76.8kbps fixed
Receiver Sensitivity -100dBm typical @ 76.8kbps RF Data Rate
Power Consumption (@ 12 Vdc) 400mA
Configuration software Easy-to-use Windows based software
NETWORKING AND SECURITY
Frequency band, RF Technology 902 – 928, FHSS (USA); 915-928, FHSS (Australia)
Supported Network Topologies Point-to-Point, Point-to-Multipoint
Channels 32
Security One byte System ID. 56-bit DES encryption key.
ANTENNA
RF Connector RPSMA Jack
Type 1/2 Wave Dipole
ELECTRICAL
Electrical requirements Line voltage 100 – 120V (240V outside US);
Power supply 6-foot cable, AC power connector
