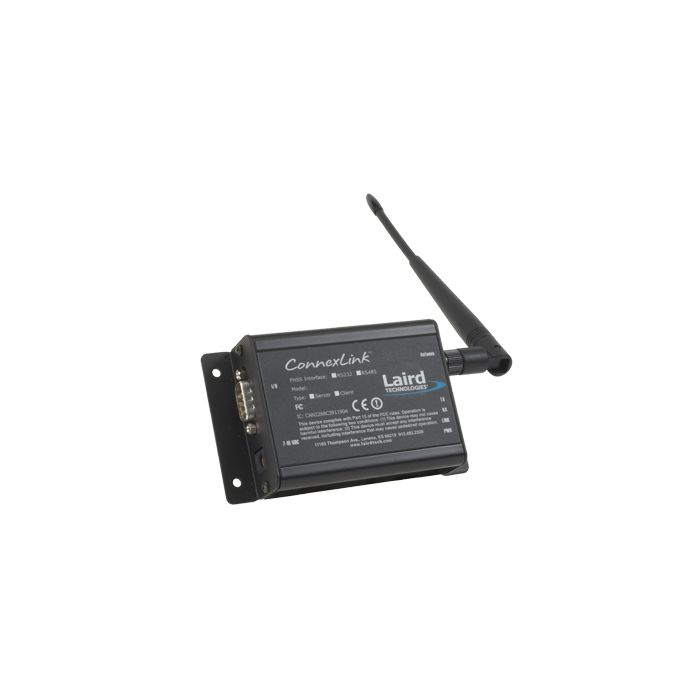

CL4490
RF TRANSCEIVER
Downloads:
RF TRANSCEIVER
· Retries and Acknowledgements
· API Commands to control packet routing and acknowledgement on a packet-by-packet basis
· Frequency Hopping Spread Spectrum for security and interference rejection
· Customizable RF Channel number and system ID
· Dynamic link analysis, remote radio discovery
· Low latency and high throughput
· Continuous 76.8 kbps RF data stream
· Software selectable interface baud rates from 1200 bps to 115.2 kbps
· Advanced configuration available using AT commands
Serial Interface Connector DB-9 Male (RS-232), Terminal Block (RS-485), Type B USB (USB)
RF Connector RPSMA Jack
Serial Interface Data Rate Baud rates from 1200 bps to 115,200 bps
Power Consumption (typical) 400 mA @ 12VDC
Channels 32 (USA); 7 (Australia)
Supported Network Topologies Point-to-Point, Point-to-Multipoint
Security One byte System ID. 56-bit DES encryption key.
Interface Buffer Size Input/Output: 256 bytes each
