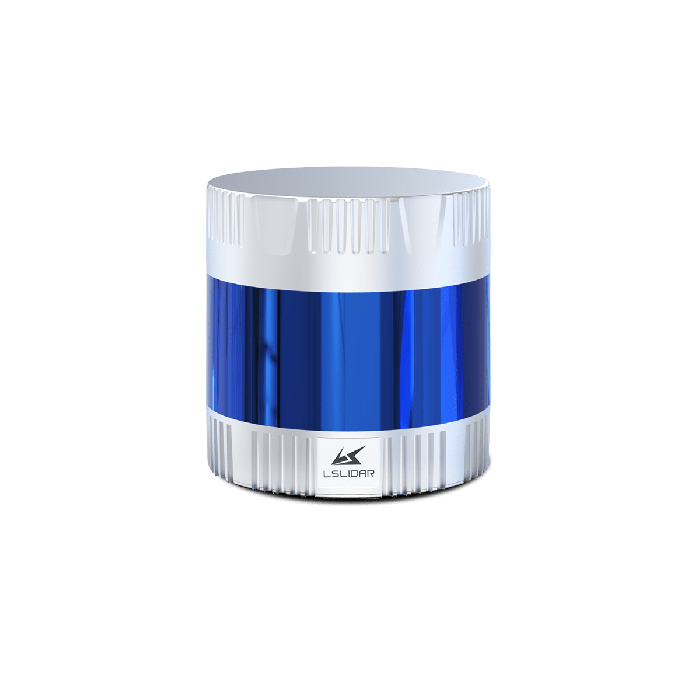

LSLiDAR C32W Wide-View Mechanical LiDAR
With a wide FOV, C32W is able to identify short obstacles effectively within near range.
Key Features:
- 32-channel wide-view LiDAR for enhanced near-range perception
- 360° × 70° ultra-wide field of view reduces blind spots
- Vertical coverage down to -55° for low obstacle detection
- Up to 130m detection range for short to mid-range sensing
- High point cloud output up to 1.2 million points per second
- Ideal for anti-collision, robotics, and autonomous navigation applications
- IP67 rated
Description
Product Overview
The LSLiDAR C32W is a wide field of view mechanical LiDAR sensor designed for high-speed 3D perception and accurate obstacle detection in complex environments. With a 32-channel laser configuration and full 360-degree horizontal coverage, it delivers dense point cloud data while extending vertical visibility to capture low and near-field objects. Engineered for applications where blind spots must be minimised, the C32W provides reliable detection for autonomous systems, robotics, transport safety and industrial automation.
Key Features
Wide Field of View
-
Full 360-degree horizontal scanning for complete environmental coverage
-
Vertical field of view up to 70 degrees, focused on the lower area detection
-
Designed to capture near-ground and low-height obstacles effectively
-
Reduces blind zones in close-range environments
High-Density 3D Perception
-
32-channel laser configuration for detailed point cloud generation
-
Produces up to 600,000 points per second for real-time perception
-
Supports dual return capability for improved detection in complex scenes
-
Suitable for mapping, obstacle detection and sensor fusion applications
Accurate and Reliable Measurement
-
Detection range up to approximately 130 metres, depending on reflectivity
-
High precision with accuracy around centimetre level
-
Time of flight measurement ensures consistent and stable distance calculation
-
Reliable performance across varying surfaces and lighting conditions
Flexible Scanning Performance
-
Adjustable scan frequency from 5 Hz to 20 Hz
-
Configurable horizontal resolution depending on rotation speed
-
Designed to balance data density and real-time responsiveness
-
Supports integration into dynamic sensing systems
Rugged Industrial Design
-
IP67-rated enclosure for protection against dust and water
-
Operating temperature range suitable for outdoor and industrial environments
-
Resistant to vibration and shock for mobile platforms
-
Built for continuous operation in demanding conditions
Integration and Connectivity
-
An Ethernet communication interface for data transmission
-
Wide DC input range for flexible system integration
-
Compact cylindrical design for easy mounting in vehicles or machinery
-
Supports integration into autonomous platforms and industrial systems
Applications and Use Cases
The C32W is suitable for:
-
Autonomous vehicles and ADAS systems
-
Robotics and automated guided vehicles
-
Industrial automation and safety monitoring
-
Intelligent transport and roadside perception
-
Mapping, surveying and infrastructure inspection
More Information
| Brand | LSLIDAR | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
C32W
Wide-view Mechanical LiDAR
C32W PoE
Wide-view Mechanical LiDAR with PoE
