LSLiDAR 32/16-Line Mechanical LiDAR
360° 3D High Accuracy Perception Mechanical LiDAR
Key Features:
- 32 or 16-channel mechanical LiDAR
- 360° horizontal field of view for full area coverage
- Up to 150m detection range
- Time-of-Flight technology for accurate distance measurement
- Supports single and dual return modes for improved data capture
- IP67-rated housing for outdoor and harsh environments
Description
360° 3D High Accuracy Perception
Highly Integrated Module Design Provides the Most Stable and Reliable Performance
Realizes 360° three-dimensional fast scanning with dense 32/16 beam laser
Vertical FOV 31°(-16°-15°) / 30°(-16°~14°)
Vertical Resolution Uniform 1° / 2°
Chip by LSLiDAR
C32 adopts the in-house LiDAR chip, which ensures the excellent product performance and high cost performance of the product
Market Applications
- Mapping
- Drone/UAV
- Industrial
- Infrastructure
- Robotics
- Security
Download
More Information
| Brand | LSLIDAR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
C32/16 Mechanical LiDAR Specifications
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information

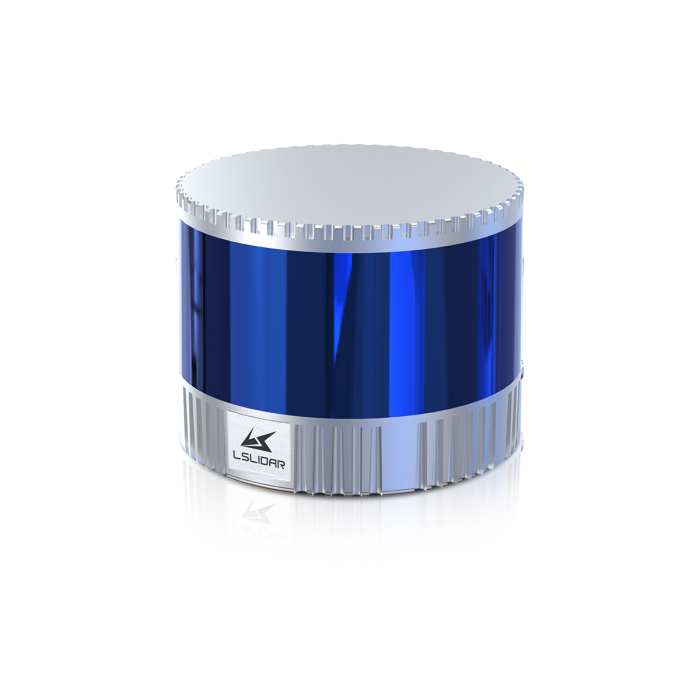

C32
Vertical FOV
31°（-16° ~ 15°）
Vertical Resolution
1°
Horizontal Resolution
5Hz:0.09°/ 10Hz:0.18°/ 20Hz:0.36°
Detection Range
130m
Range Accuracy
±1cm
Dimensions
102 x 77.9 mm
IP Grade
IP67
Data Points
640,000 pts/s @Single echo
1,280,000 pts/s @Dual echo
Input Voltage
9V~36V DC

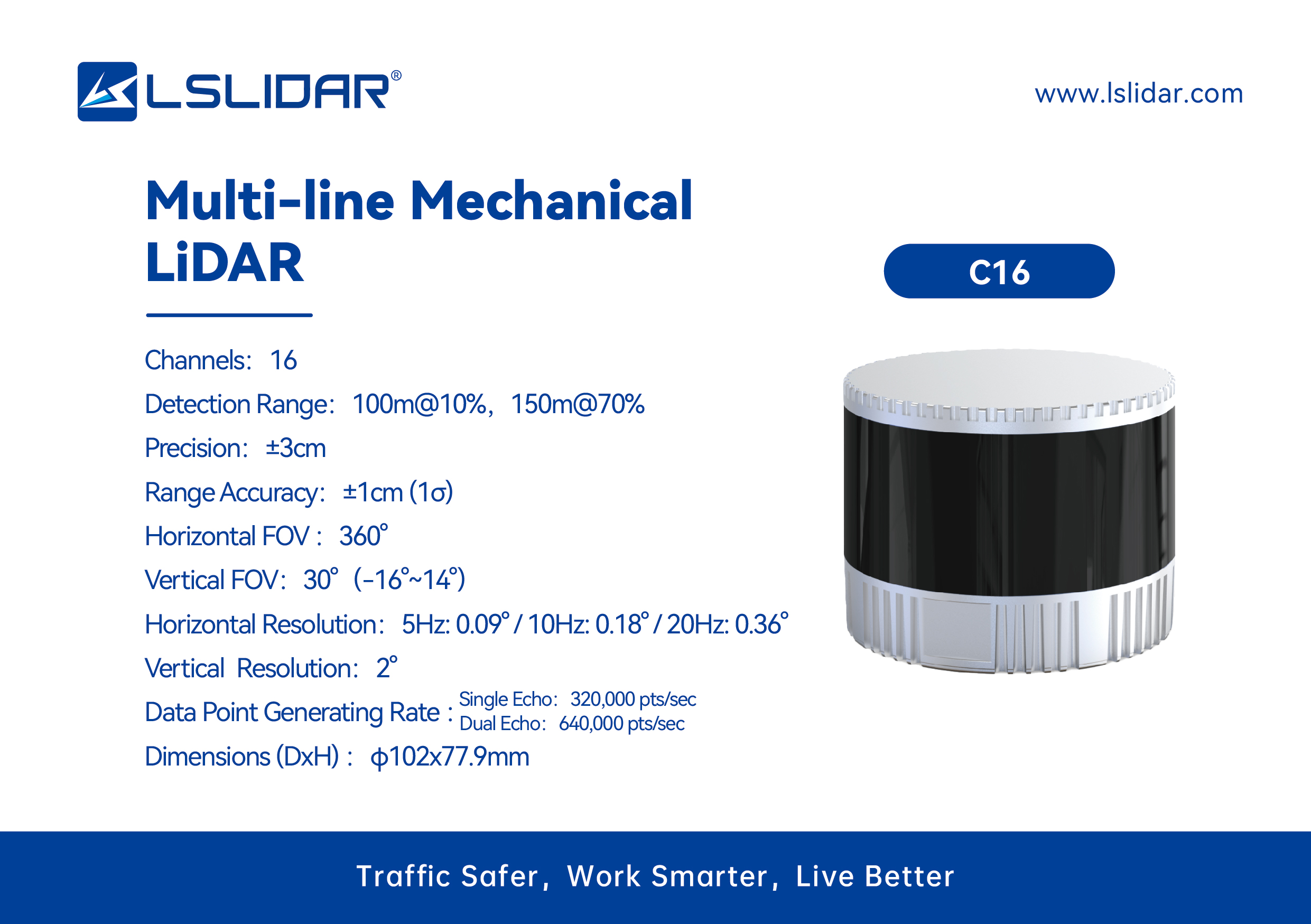

C16
Vertical FOV
30°（-16° ~ 14°）
Vertical Resolution
2°
Horizontal Resolution
5Hz:0.09°/ 10Hz:0.18°/ 20Hz:0.36°
Detection Range
150m
Range Accuracy
±1cm
Dimensions
102 x 77.9 mm
IP Grade
IP67
Data Points
320,000 pts/s @Single echo
640,000 pts/s @Dual echo
Input Voltage
9V~36V DC
