Shop Body Camera Docking Station (TS-DPD6N) at Tekdis LLC

SKU: TS-DPD6N

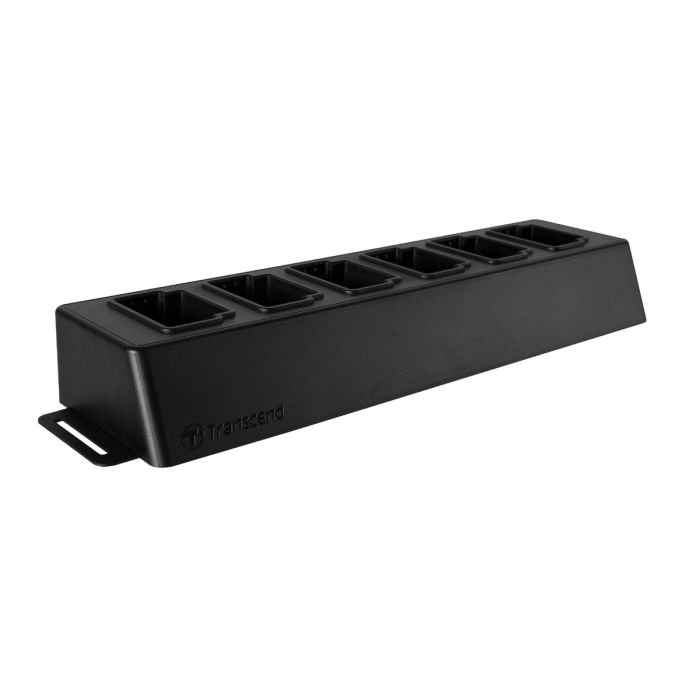

6-bay Docking station for Transcend's DrivePro Body 30, 60, and 70 cameras

Key Features:

A complete camera charging and data upload solution
Six charging ports for supreme efficiency
Upload data simultaneously
Auto backup and unlock

Datasheet

Description

Designed exclusively for Transcend's DrivePro Body 30, 60, and 70 body cameras, Transcend's TS-DPD6N docking station offers a complete camera charging and data upload solution. The six-port docking station is network-based, providing two Ethernet ports for scalability and fast deployment. A LAN port is used for administrative setup, whereas a WAN port is for data upload to a designated folder while charging. A USB 3.1 Gen 1 port is also included for storing video recordings and snapshots to external storage devices.

Download

Datasheet

Docking Station TS-DPD6N User Manual

More Information

Brand

Transcend

Specifications

Appearance
Dimensions	423 mm x 105 mm x 54 mm (16.65" x 4.13" x 2.13")
Weight	980 g (34.57 oz)
Interface
USB Type	USB Type-A
Connection Interface	USB 3.1 Gen 1 (USB 5Gbps)
Hardware
Network Port	WAN: 10/100/1000 Mbps Ethernet LAN: 10/100 Mbps Ethernet
Operating Environment
Operating Temperature	0°C (32°F) ~ 40°C (104°F)
Storage Temperature	-20°C (-4°F) ~ 70°C (158°F)
Supported Device	DrivePro Body 60/ DrivePro Body 30/ DrivePro Body 70
Power
Power Supply (Max.)	12V / 3A
Warranty
Certificate	CE/ UKCA/ FCC/ KC/ EAC/ RCM
Warranty	Two-year Limited Warranty
System Requirement
Operating System	Microsoft Windows 7 or later
